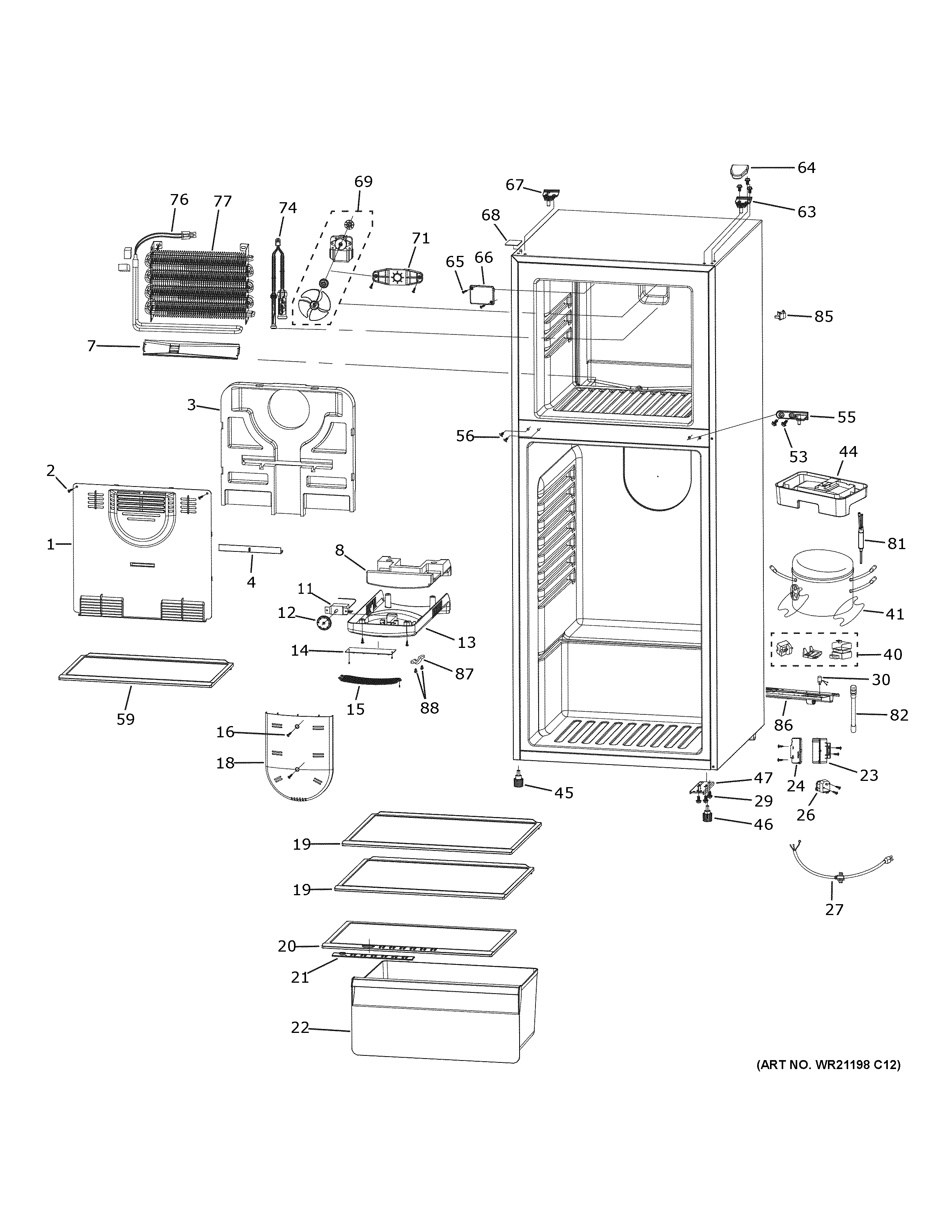

HA12TG21SB CABINET

Products

Position	Product
1	WR14X41805 GE Evaporator Cover
2	WR01X29254 GE Screw
3	WR14X29253 GE Refrigerator Foam Evaporator Back Cover
4	WR14X29243 GE Slide Air Temperature
7	WR14X29251 GE Refrigerator Drain Trough
8	WR14X29247 GE Refrigerator Housing Duct Cold Control
11	WR09X29288 GE Refrigerator Thermostat
12	WR01X29289 GE Thermostat Knob
13	WR14X29246 GE Range Thermostat Box
14	WR55X29270 GE Refrigerator LED Board
15	WR14X29271 GE LED Cover Board
16	SELF-DRILLING SCREW
18	FRESH FOOD AIR TOWER COVER
19	FRESH FOOD GLASS SHELF
20	WR71X29296 GE Refrigerator Vegetable Pan Cover
21	WR71X29297 GE Crisper Slider
22	WR71X29295 GE Refrigerator Crisper
23	WR14X29290 GE Refrigerator Timer Box
24	TIMER BOX COVER
26	WR09X29252 GE Refrigerator Electronic Defrost Timer
27	WR55X29276 GE Refrigerator Power Cord
29	WR01X29269 GE Refrigerator Hexagon Head Bolts
30	WR55X29245 GE Capacitor
40	WR87X30955 GE Refrigerator Compressor Electrical
41	COMPRESSOR
44	WR14X29250 GE Refrigerator Drain Pan
45	WR01X29272 GE Leveling Leg Left
46	WR01X29273 GE Right Leveling Leg
47	WR13X29244 GE Refrigerator Lower Hinge Part
53	WR01X29268 GE Refrigerator Hexagon Bolt Cross Recessed
55	WR13X41485 GE Middle Hinge
56	WR01X29275 GE Middle Hinge Plug Button
59	FREEZER GLASS SHELF
63	WR13X29292 GE Refrigerator Upper Door Hinge
64	TOP HINGE COVER
65	FLAT HEAD TAPPING SCREW
66	WIRING BOX COVER
67	WR13X43565 GE Left Top Hinge and Pin
68	WR01X29294 GE Top Hinge Hole Cover
69	WR01X29257 GE Refrigerator Evaporator Fan Motor Grommet
71	WR14X29256 GE Refrigerator Evaporator Fan Bracket
74	WR55X29255 GE Refrigerator Evaporator Defrost Harness
76	WR09X29249 GE Refrigerator Defrost Heater
77	WR87X32202 GE Refrigerator Evaporator
81	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
82	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
85	WR23X10699 GE Refrigerator Switch Lamp
86	COMPRESSOR BASE
87	MOUNTING CLIP
88	SCREW
