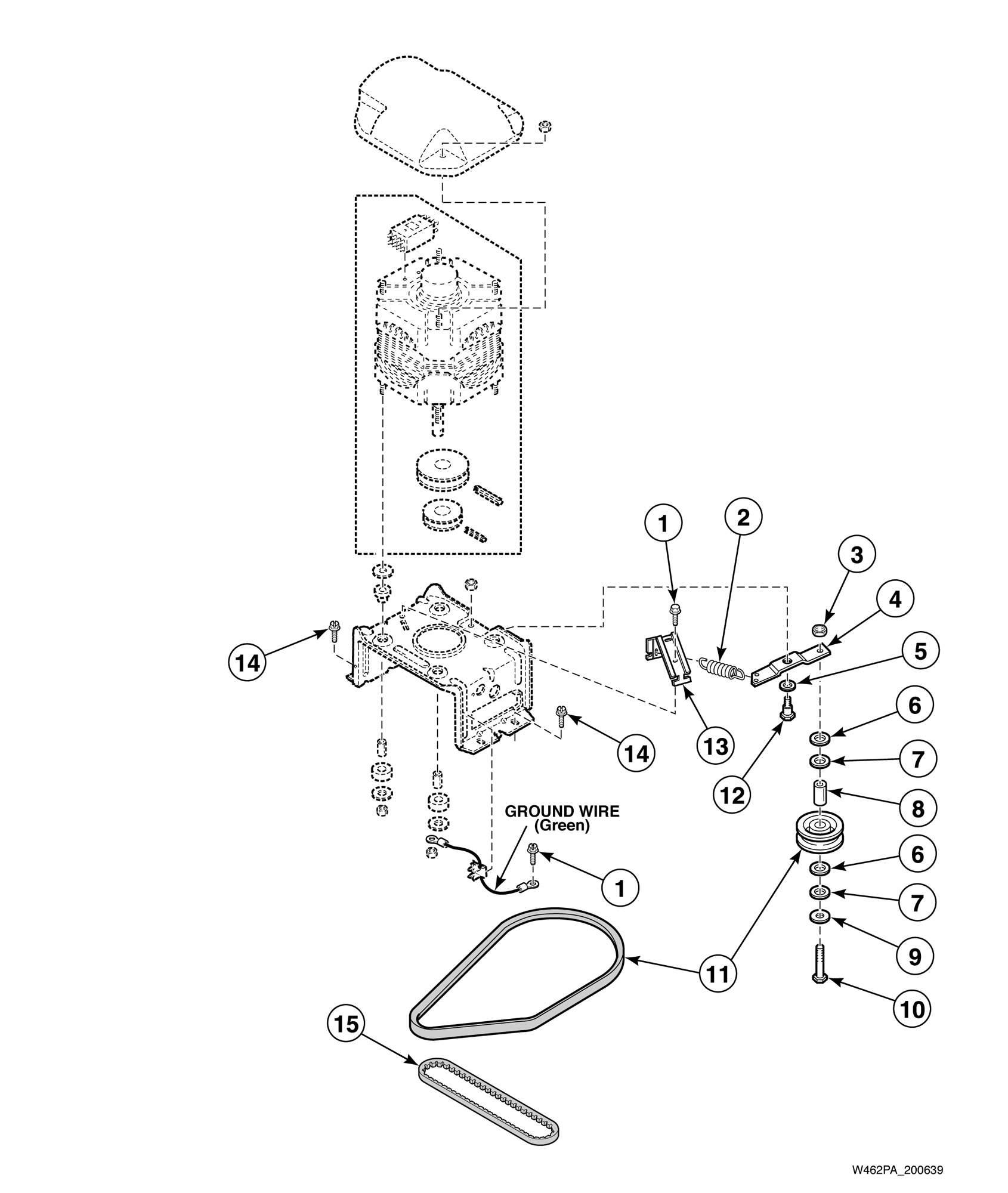

HA2010 Belts and Idler Assembly – Models Through Serial No. C3486773
Written by
in
HA2010 Belts and Idler Assembly – Models Through Serial No. C3486773
Products
| Position | Product |
|---|---|
| 1 | Screw |
| 3 | Nut |
| 5 | Washer |
| 11 | Idler Pulley Kit (Comment: Includes agitate and spin belt) |
| 12 | Screw |
| 14 | Wire Harness Assembly |
| 15 | Pump Belt (Comment: Pump) |
