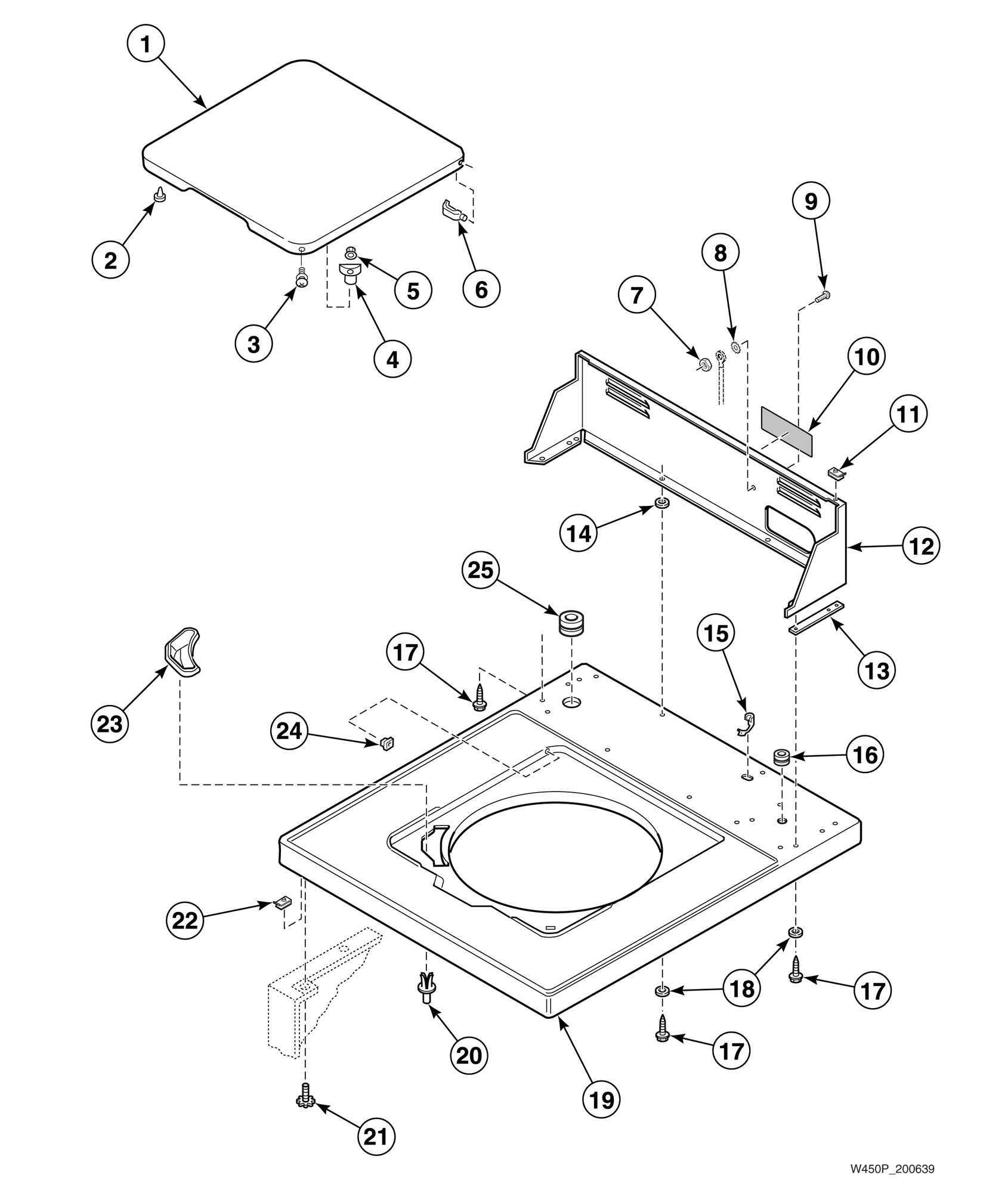

HA2010 Cabinet Top, Loading Door and Control Hood

Written by

Products

Position	Product
2	Bumper
10	Disconnect Power Warning Label
11	Nut
15	Strain Relief
17	Screw
20	Support Barrel
21	Screw
22	Nut
23	NOT ON YOUR MODEL
24	Bushing
25	Wire Harness Assembly
