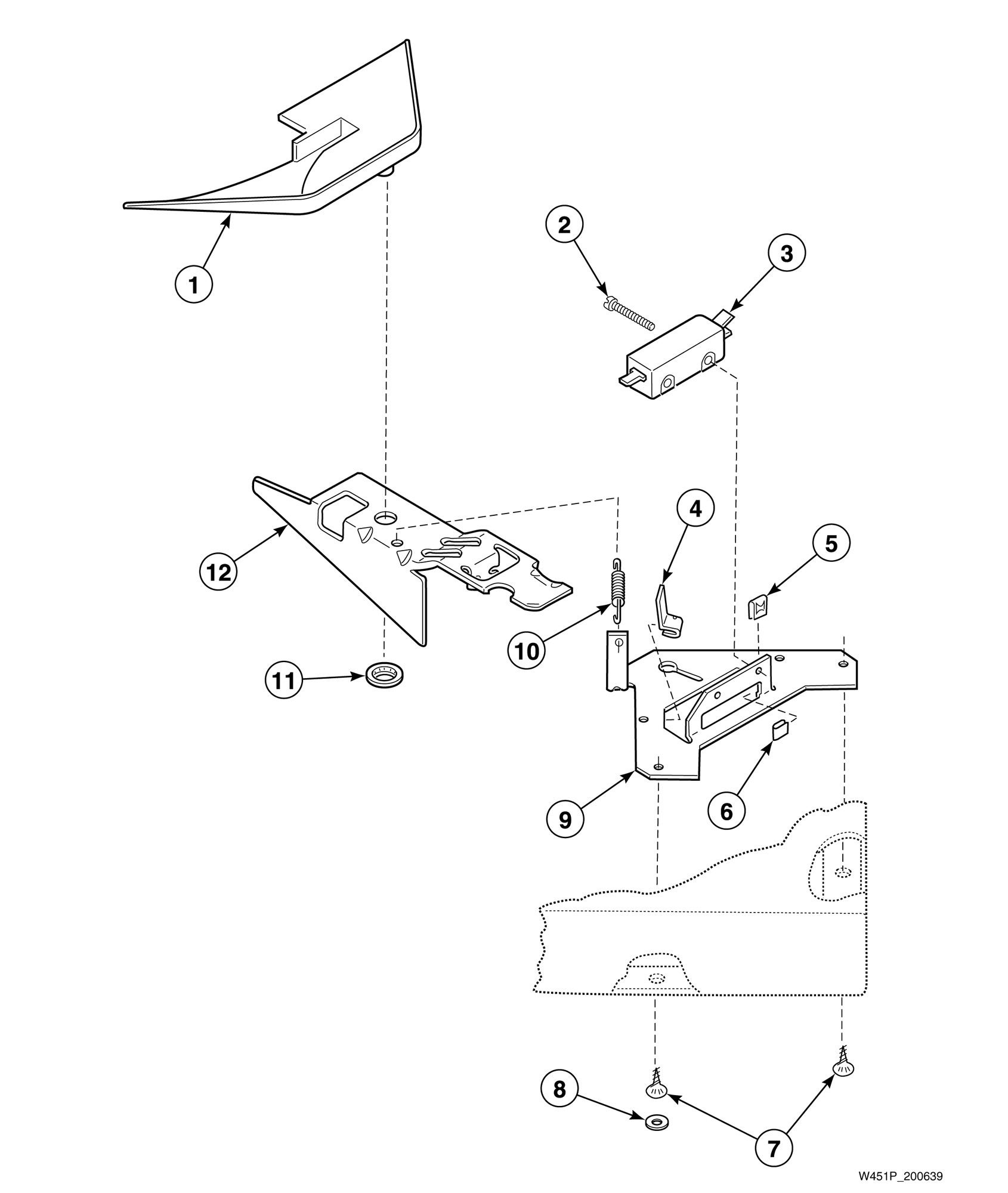

HA2410 Switch and Bracket Assembly
Products
| Position | Product |
|---|---|
| 1 | Lid Switch Shield |
| 2 | Screw |
| 3 | Switch |
| 7 | Screw |
| 9 | Out-of-Balance Switch Bracket |
| 10 | Wire Harness Assembly |
| 11 | Nut |
| 12 | Out-of-Balance Switch Lever |
