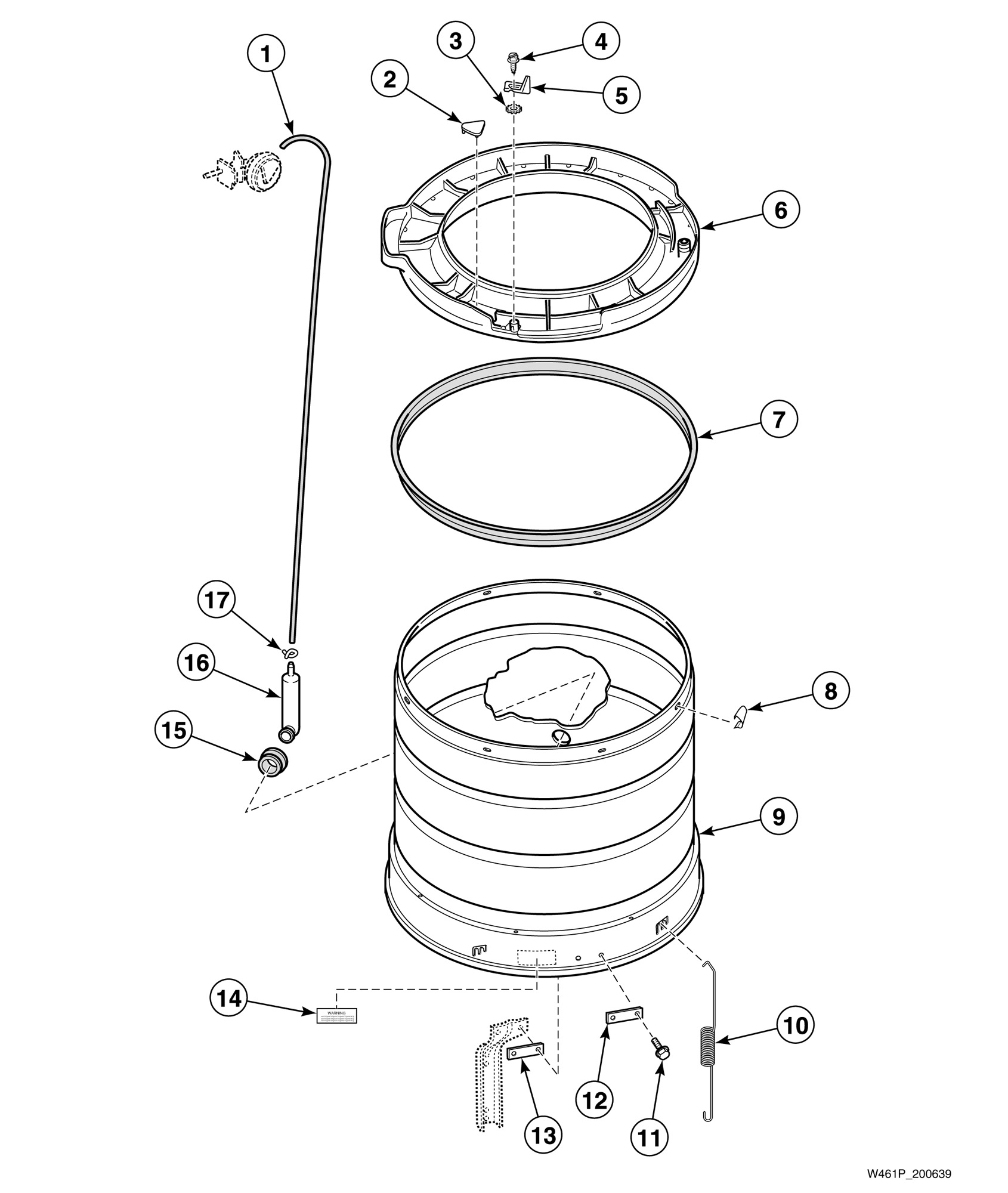

HA2411 Outer Tub, Cover and Pressure Hose (Drawing 2 of 2)

Written by

Products

Position	Product
1	Tubing (Comment: starting Serial No. L3627521)
2	Plug
3	Washer
4	Screw
6	Outer Tub Cover (Comment: Includes item 2)
7	Tub Cover Gasket (Comment: Includes 495P3 Hub and Seal Kit)
8	Spring Clip
10	Leg Spring
11	Screw
12	Leg Plate (Comment: .063 inches thick)
14	Wire Harness Assembly
15	Grommet
16	Pressure Bulb
17	Hose Clamp
