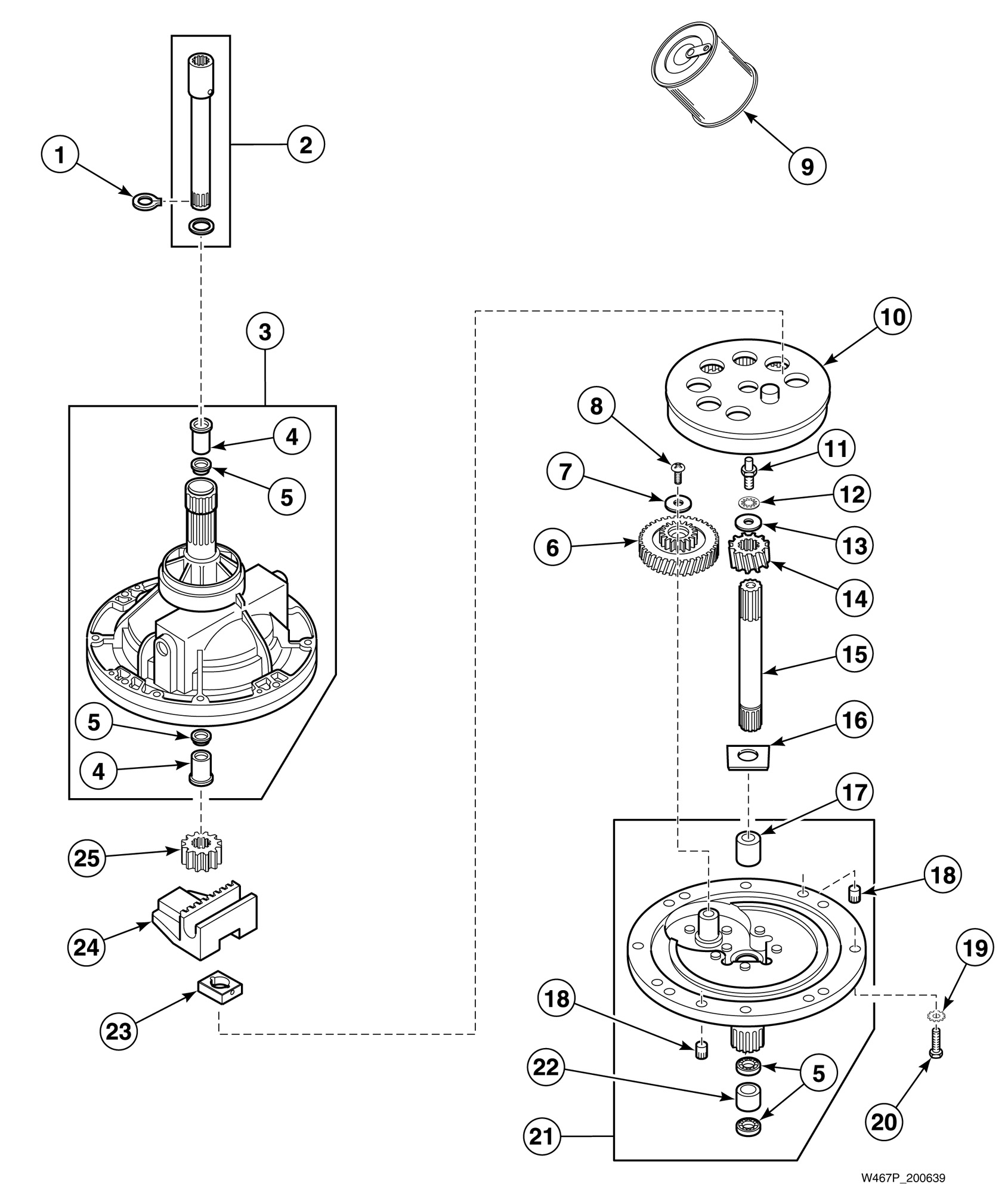

HA2411 Transmission Assembly

Products

PositionProduct
NAWire Harness Assembly
NATransmission Sealant (Comment: Use as a sealant between transmission case and cover)
2Coupling and Shaft Kit
3Transmission Case Assembly
4Packaged Bearing
5Seal
6Reduction Gear
7Washer
8Screw
9Transmission Oil (Comment: 1 fill)
13Washer
14Drive Pinion (Comment: Use with 30946P Transmission Assembly)
14Input Pinion (Comment: Use with 28430 Transmission Assembly)
15Input Shaft
19Washer
20Screw
21Transmission Cover Assembly
22Bearing
23Slide
24Rack
25Agitator Pinion
