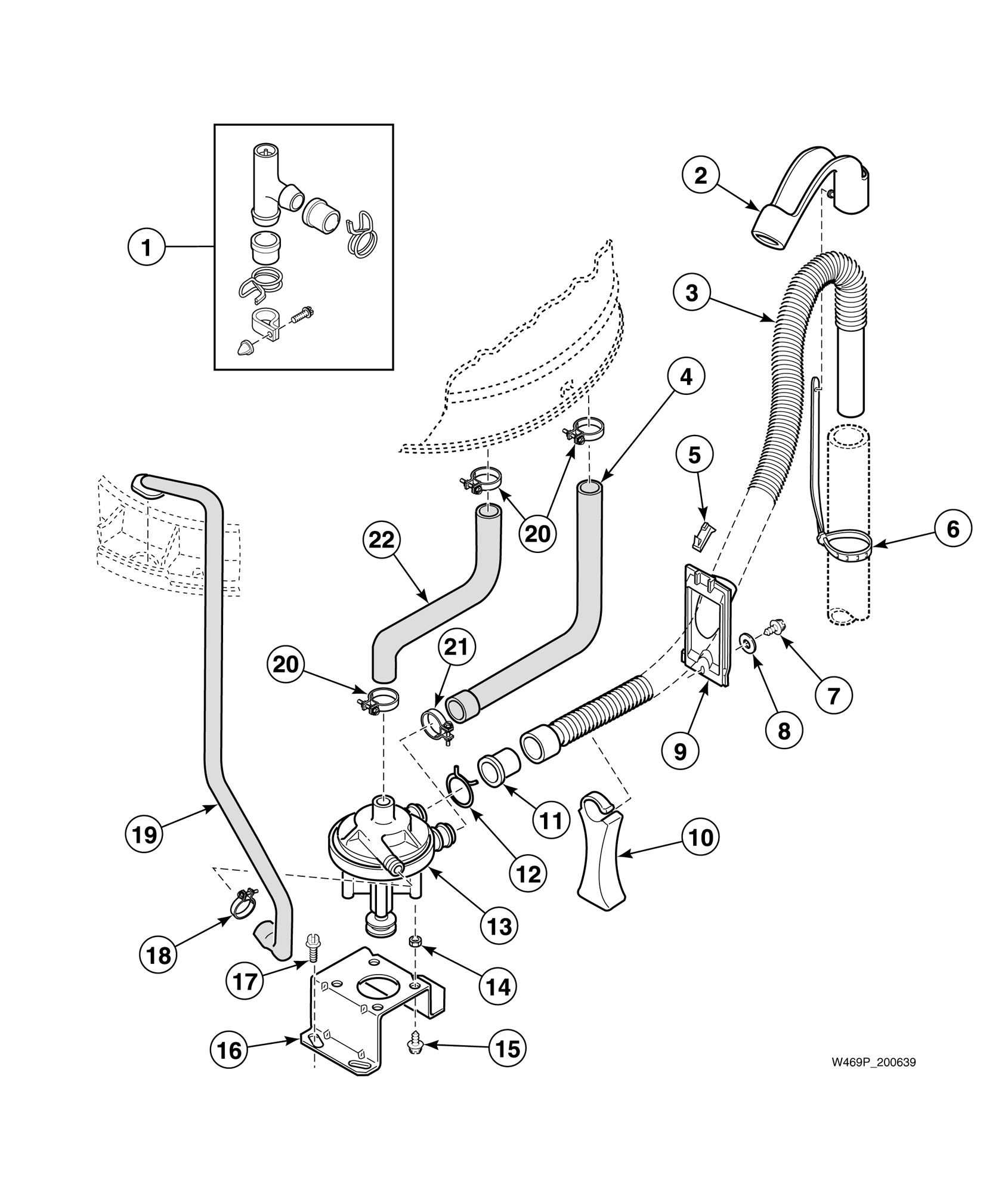

HA2620 Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)

HA2620 Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)

Written by

in

HA2620 Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)

Products

PositionProduct
NADrain Extension Kit
1Siphon Break Kit (Comment: Must be installed in drain hose if the drain receptacle is lower than the cabinet top of the washer)
3Drain Hose
4Drain Tub-to-Pump Hose
6Standpipe Strap (Comment: Replaces 29999 Strap)
7Screw
8Washer
13Pump Assembly (Comment: through Serial No. R1438801XN)
15Screw (Comment: Green)
16Pump Mounting Bracket
20Hose Clamp
21Hose Clamp
22Wire Harness Assembly
