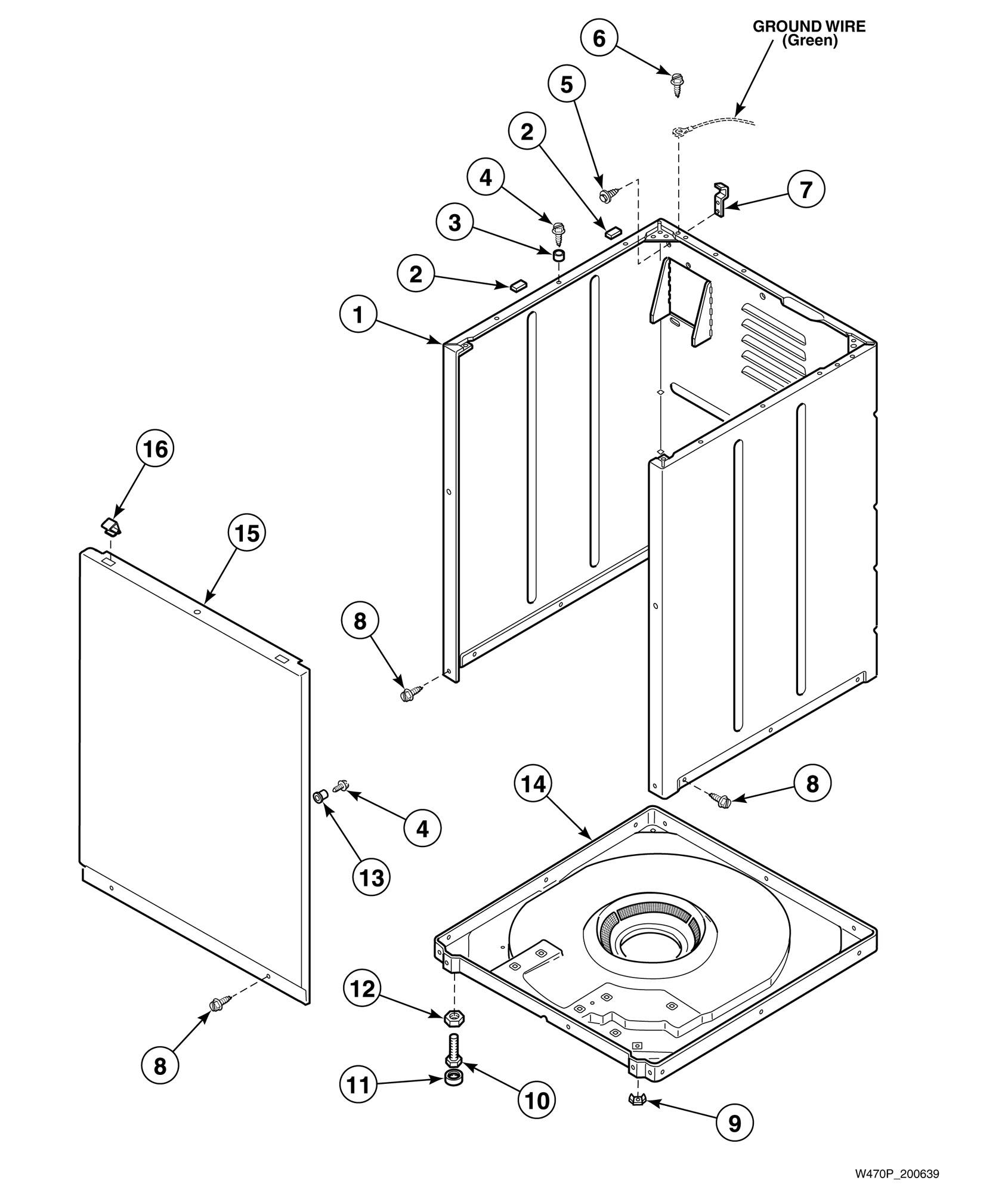

HA4000 Front Panel, Cabinet and Base

HA4000 Front Panel, Cabinet and Base

Products

PositionProduct
NASilicone Grease (Comment: For pads in base)
1Service Cabinet Kit (Comment: White)
1Service Cabinet Kit (Comment: Almond)
2Bumper Pad
3Panel Locator
4Screw
5Screw
6Screw
7Hold-Down Lug Hinge
8Screw
9Wire Harness Assembly
10Leveling Leg
11Rubber Foot
11Rubber Foot
12Nut
13Panel Locator
14Base Assembly (Comment: Includes snubber pads and leveling legs)
15Front Panel (Comment: White)
15Front Panel (Comment: Almond)
16Speed Clip
