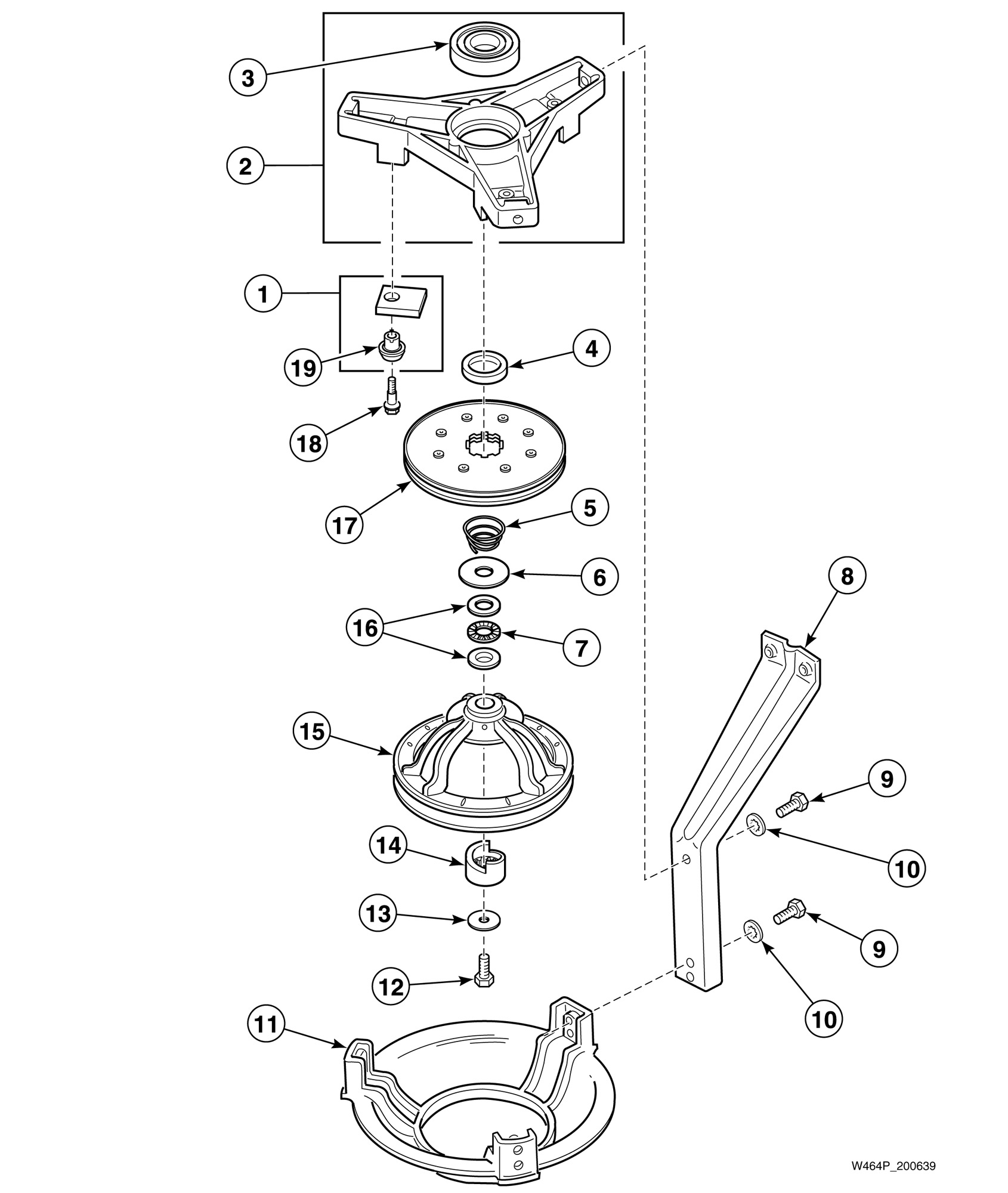

HA4001 Bearing Housing, Brake, Pulley and Pivot Dome

Products

Position	Product
1	Brake Pad Kit (Comment: Includes 3 pads and sleeves)
2	Bearing Housing Assembly
3	Lower Bearing
4	Spacer (Comment: Use with item 7)
5	Spring
6	Washer
8	Support Leg
9	Screw
10	Washer (Comment: Use with 02710 Cap Screw only)
11	Pivot Dome
12	Screw
13	Washer
14	Helix
15	Pulley and Washers Kit
16	Wire Harness Assembly
17	Brake Kit
18	Screw
19	Anti-Rotation Sleeve
