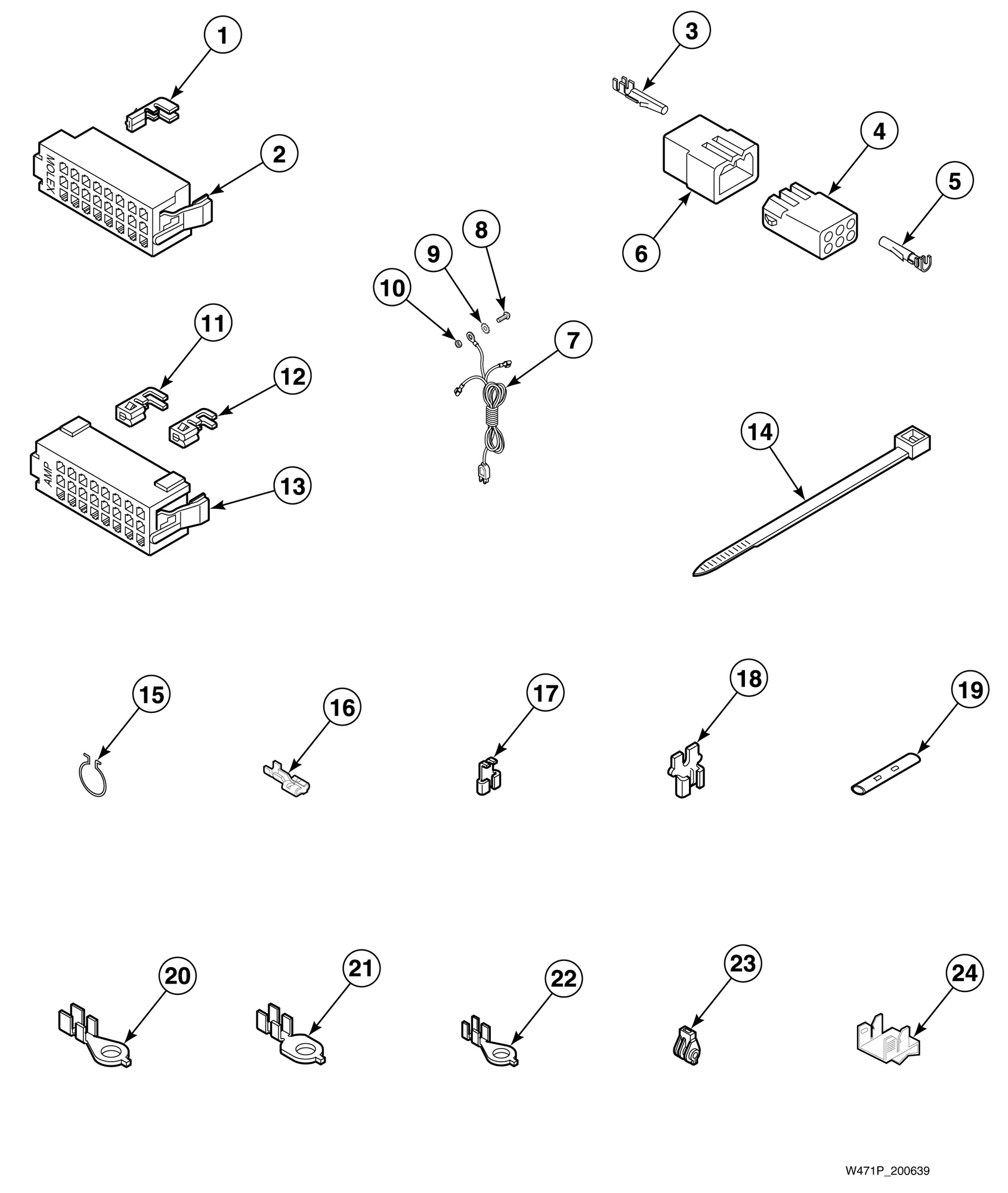

HA4001 Power Cord and Wire Terminals

HA4001 Power Cord and Wire Terminals

Written by

in

HA4001 Power Cord and Wire Terminals

Products

PositionProduct
1Female Terminal (Comment: Used for 1 or 2 wire application)
224 Position Housing (Comment: Right)
3Male Pin Terminal
46 Circuit Receptacle
5Female Pin Terminal
66 Circuit Plug
7Lead-In Cord
8Screw
9Washer
10Nut
11Female Terminal (Comment: 1 wire)
12Female Terminal (Comment: 2 wire)
13Wire Harness Assembly
14Harness Strap
15Wire Clip
16Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
17Female Flag Terminal
18Terminal Adapter
19Connector
20Ring Terminal (Comment: 1/4 inch ring)
21Ring Terminal (Comment: No. 10, (2) 18 gauge wire
22Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
23GEN 70210
24Grounding Clip
