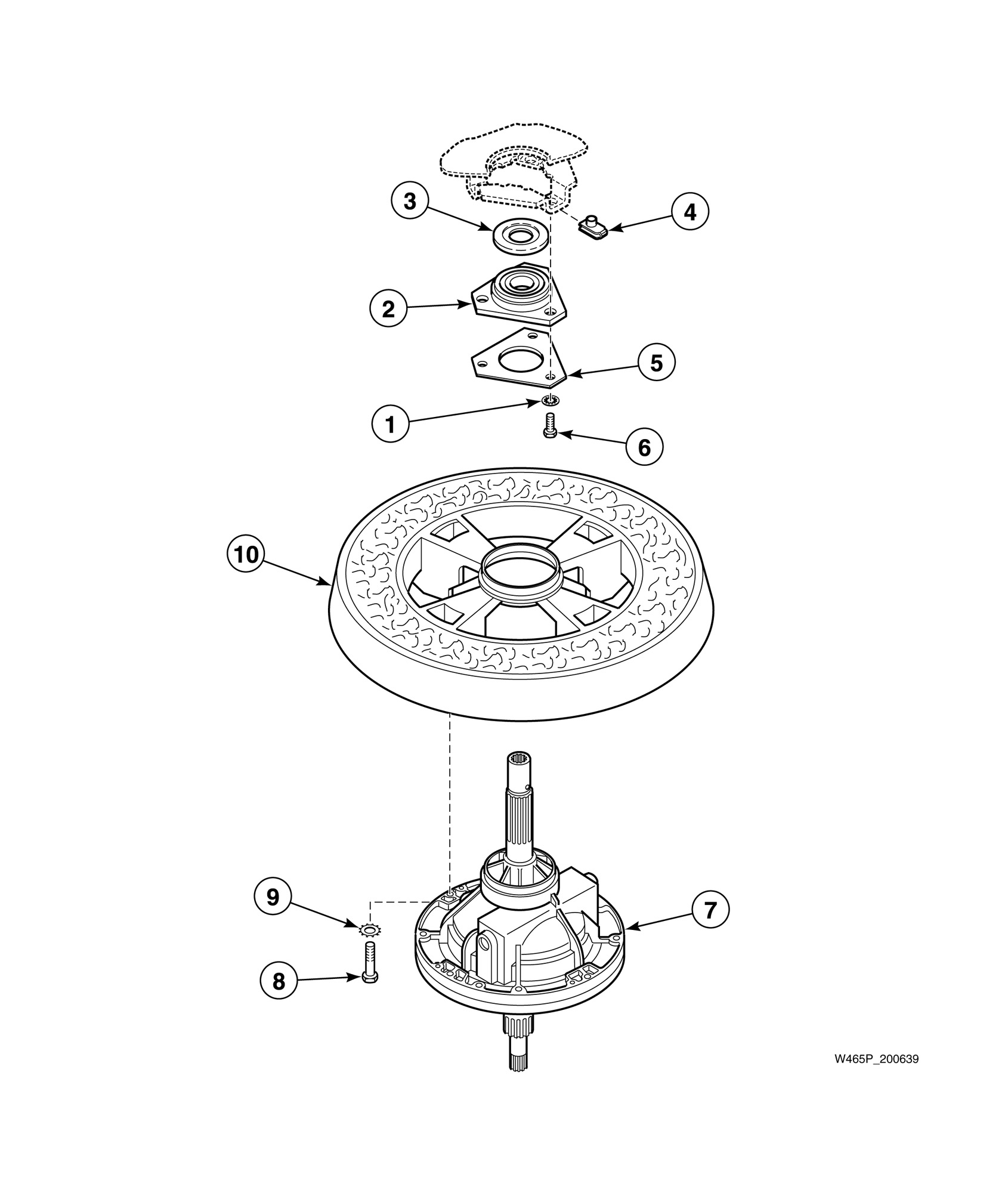

HA4011 Transmission Assembly and Balance Ring

Products

PositionProduct
NAAnti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
1Washer (Comment: Use with 02710 Cap Screw only)
2Bearing Housing Assembly (Comment: Upper)
3Flinger
4Nut (Comment: Included with outer tub)
6Screw
7Transmission Assembly
7Transmission Assembly (Comment: Replaces 30978 Transmission Assembly)
8Wire Harness Assembly
9Washer
10Balance Ring Assembly
