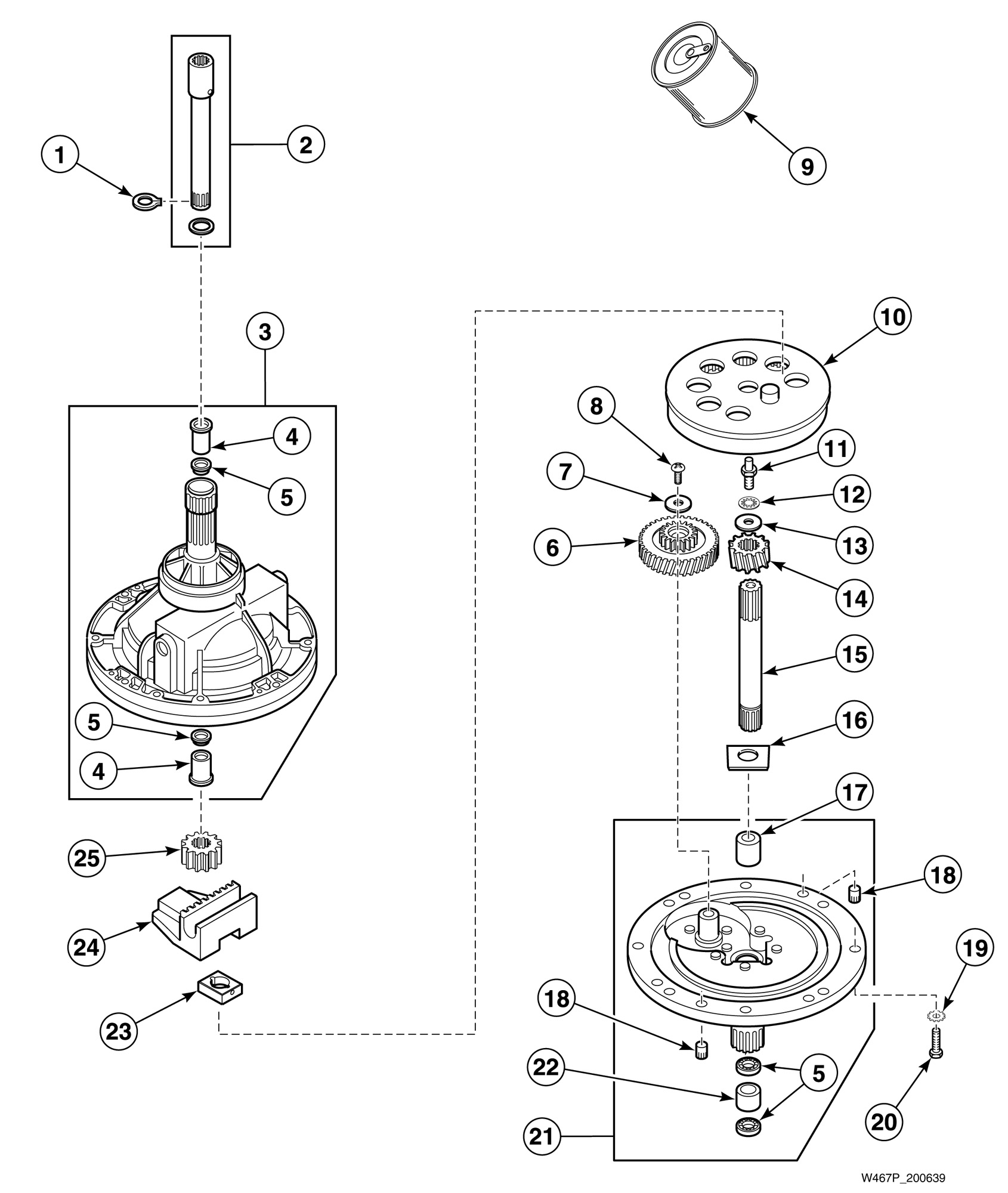

HA4261 Transmission Assembly

Products

Position	Product
1	Retaining Ring
2	Coupling and Shaft Kit
10	Gear and Stud Assembly
11	Screw
12	Washer
13	Washer
14	Drive Pinion (Comment: Use with 30946P Transmission Assembly)
14	Input Pinion (Comment: Use with 28430 Transmission Assembly)
15	Input Shaft
18	Wire Harness Assembly
19	Washer
20	Screw
21	Transmission Cover Assembly
22	Bearing
