HA4290 Motor and Mounting Bracket – Models Through Serial No. C3486773
Written by
in

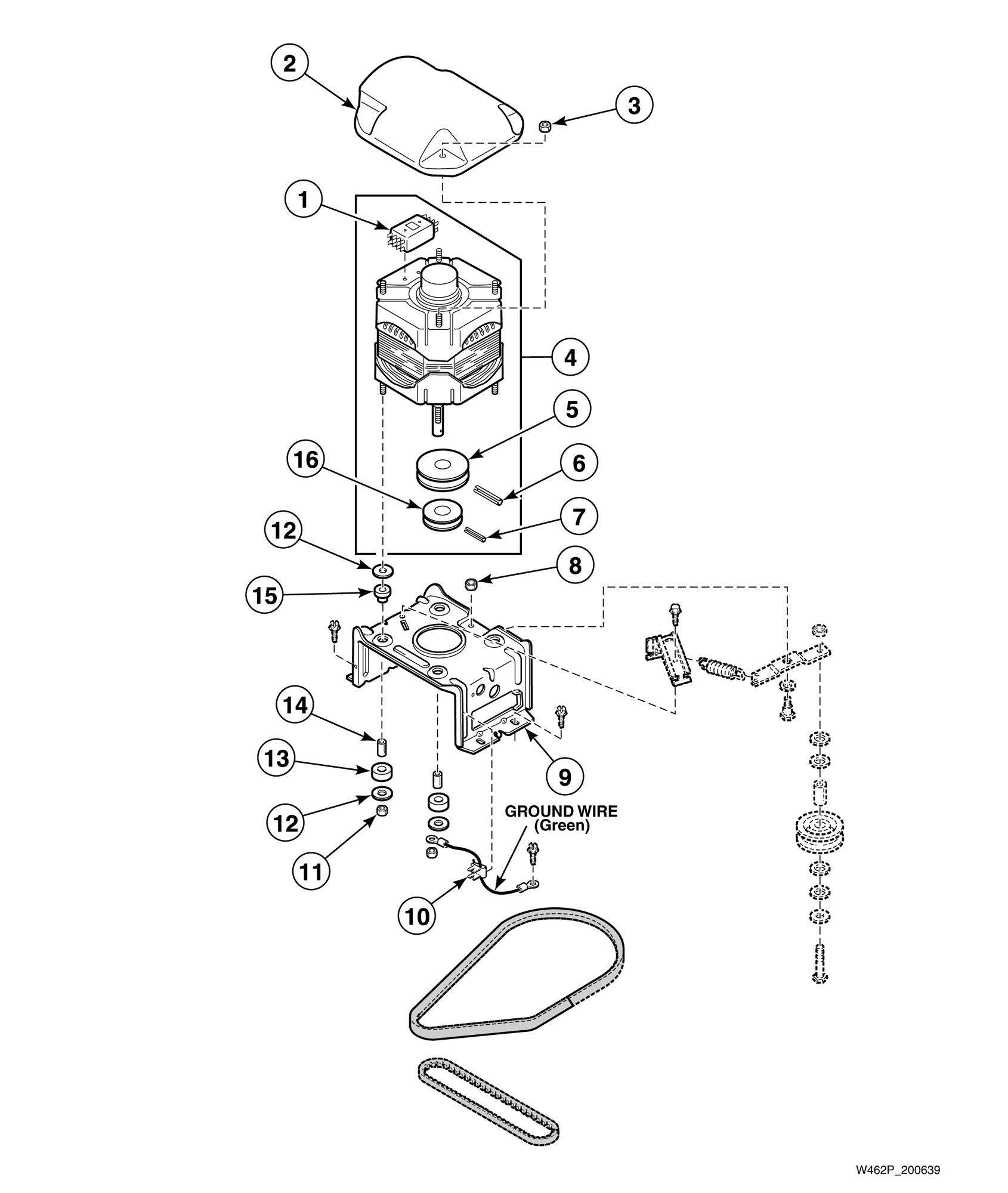

HA4290 Motor and Mounting Bracket – Models Through Serial No. C3486773
Products
| Position | Product |
|---|---|
| NA | GEN 258P3 |
| NA | Motor Harness Assembly |
| 2 | Motor Shield |
| 4 | NOT ON YOUR MODEL |
| 7 | Roll Pin |
| 8 | Nut |
| 9 | GEN 28791 |
| 10 | Grounding Clip |
| 11 | Nut |
| 12 | Washer |
| 15 | Wire Harness Assembly |
| 16 | GEN 27104 |
