HA4340 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Through Serial No. N3605084

HA4340 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Through Serial No. N3605084

Written by

in

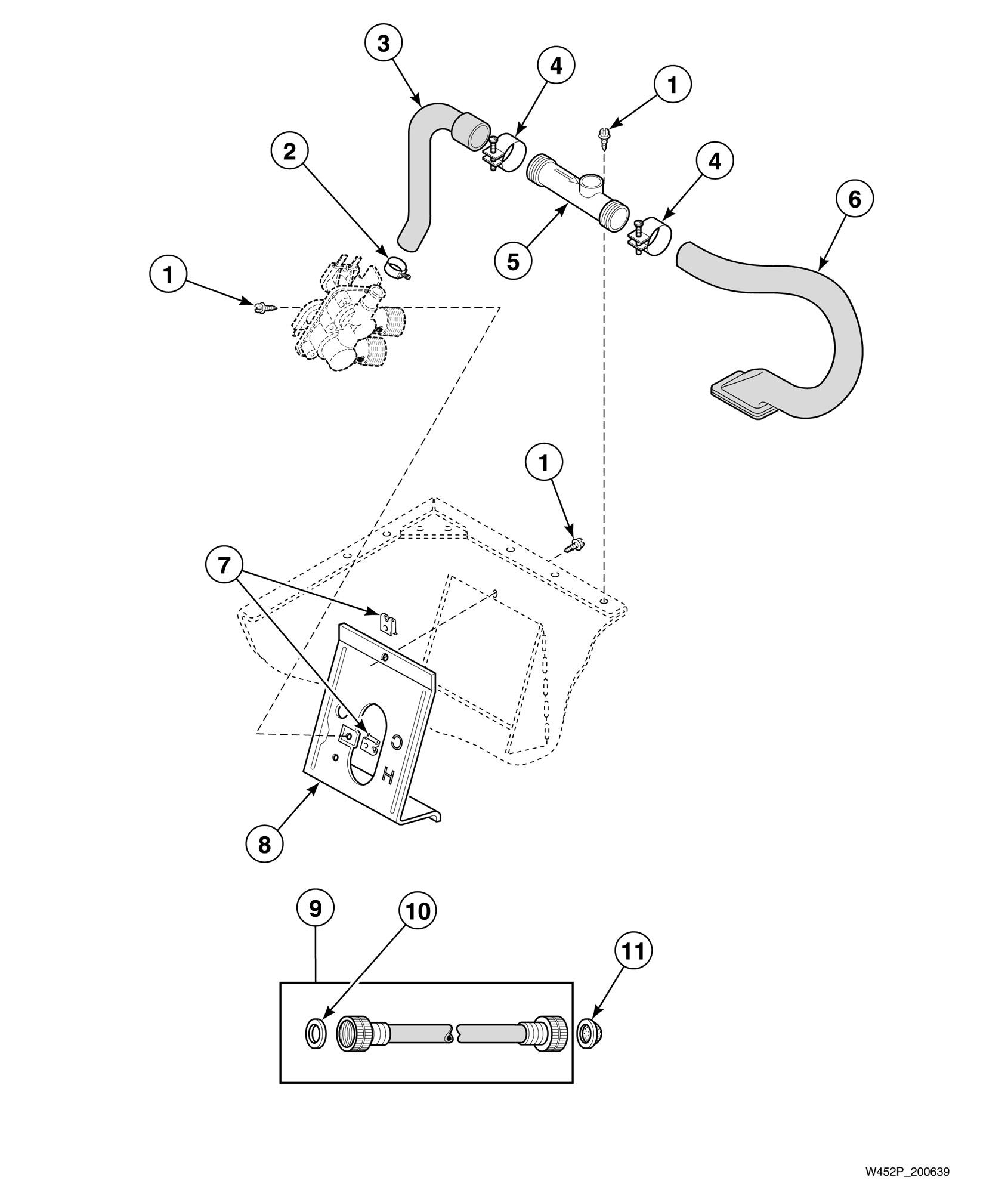

HA4340 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Through Serial No. N3605084

Products

PositionProduct
1Screw
2Hose Clamp
3Mixing Valve Hose
4Hose Clamp
5Backflow Preventer Assembly
7Wire Harness Assembly
8Mixing Valve Mounting Bracket (Comment: Replaces 27126 Mixing Valve Mounting Bracket)
9Fill Hose Kit (Comment: Hose is equipped with 1 metric and 1 standard hose coupling)
9Fill Hose Kit (Comment: 4 feet, Hose is equipped with 2 standard hose couplings, Includes item 11)
10Washer
11Filter Screen
