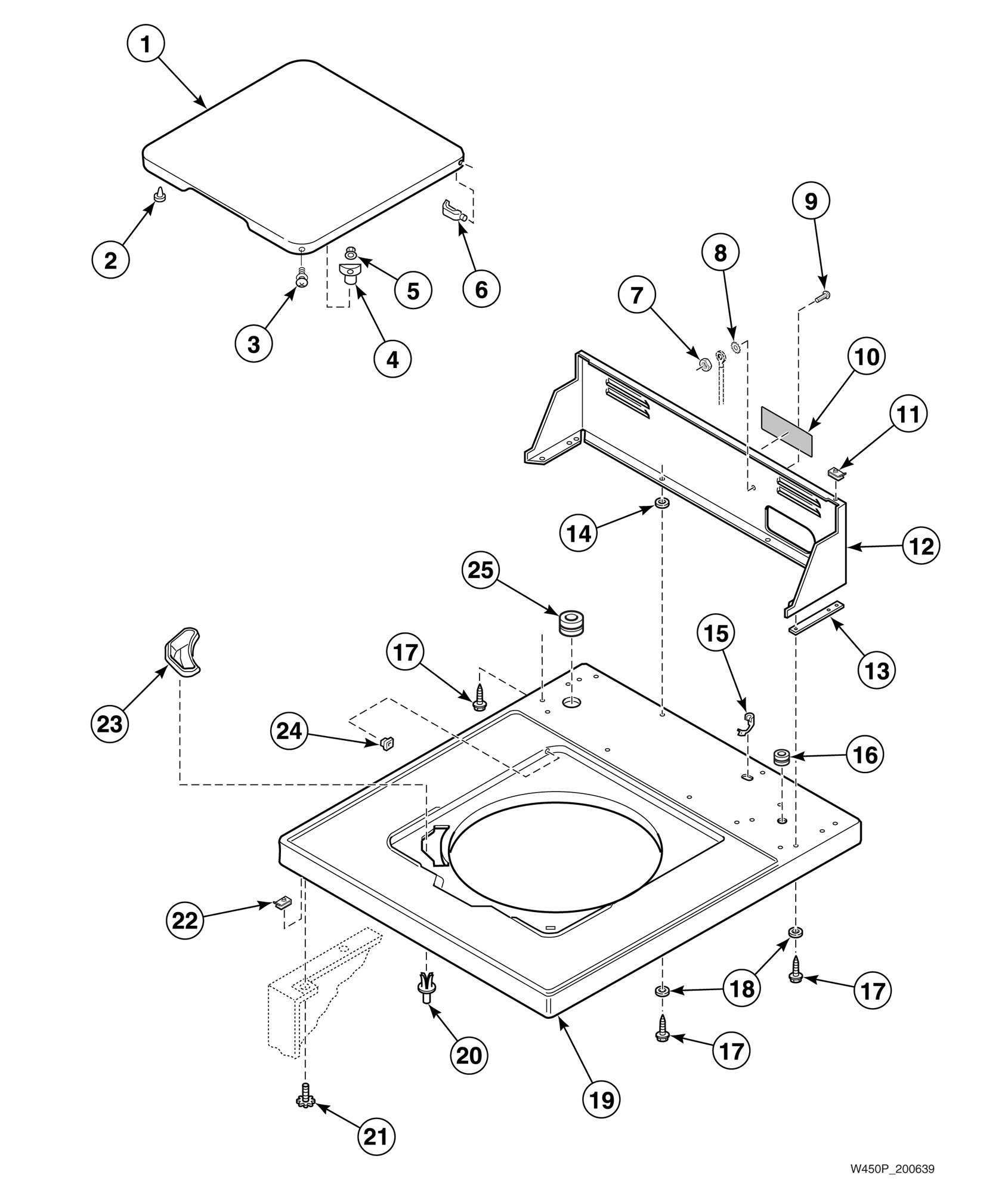

HA4511 Cabinet Top, Loading Door and Control Hood

Written by

Products

Position	Product
NA	NOT ON YOUR MODEL
2	Bumper
4	Lid Switch Catch
5	Nut (Comment: Nylon)
6	Hinge
7	Nut
8	Washer
9	Screw
10	Disconnect Power Warning Label
11	Nut
15	Strain Relief
17	Screw
20	Support Barrel
21	Screw
22	Nut
23	Bleach Dispenser (Comment: Replaces 27121)
24	Bushing
25	Wire Harness Assembly
