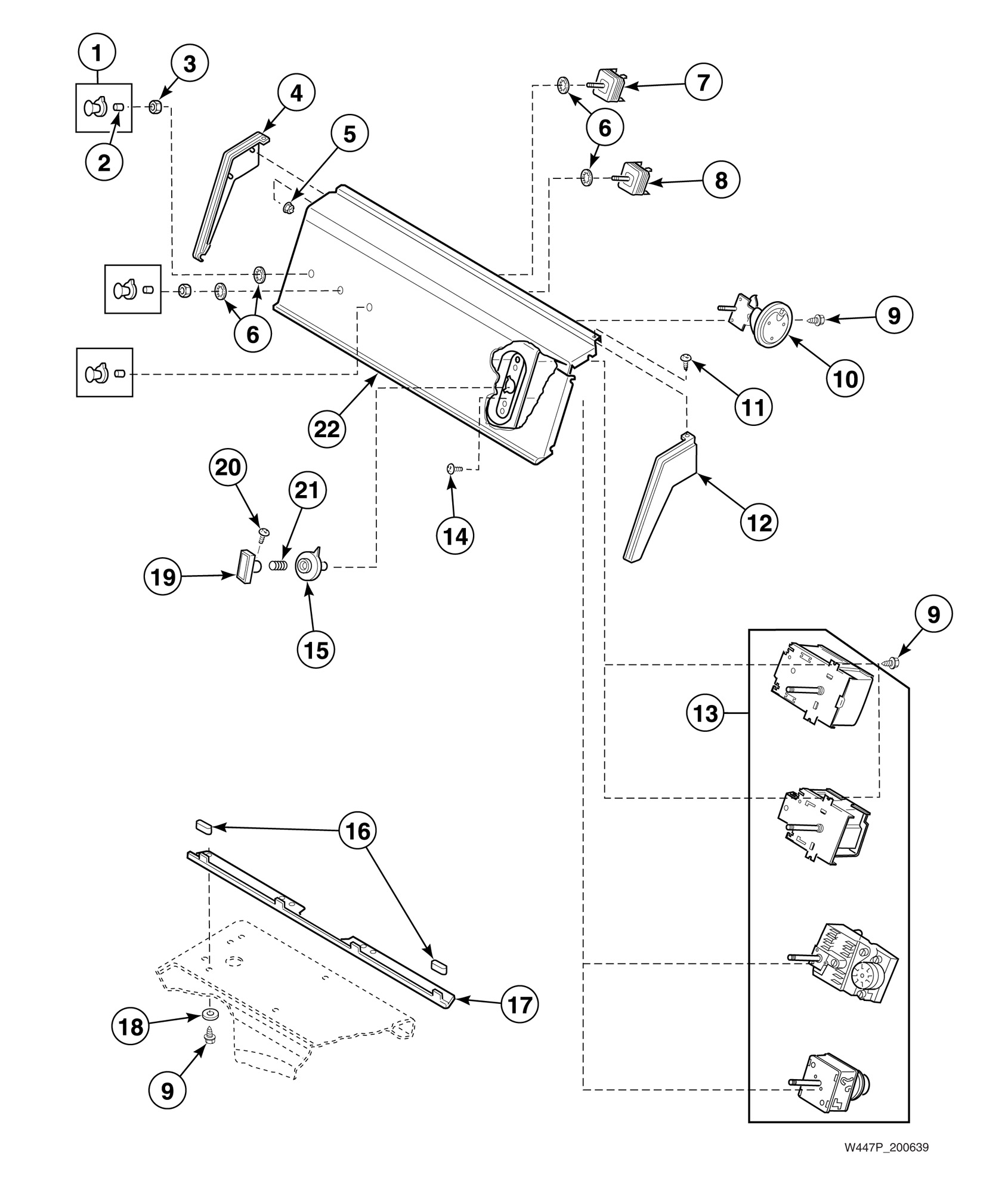

HA4520 Control Panel and Controls (Drawing 1 of 2)

Written by

Products

Position	Product
3	Nut
6	Washer
7	Water Temperature Switch
9	Screw
10	Pressure Switch
11	Screw
13	Timer (Comment: through Serial No. B3533857)
13	Timer (Comment: starting Serial No. B3533858)
22	Wire Harness Assembly
