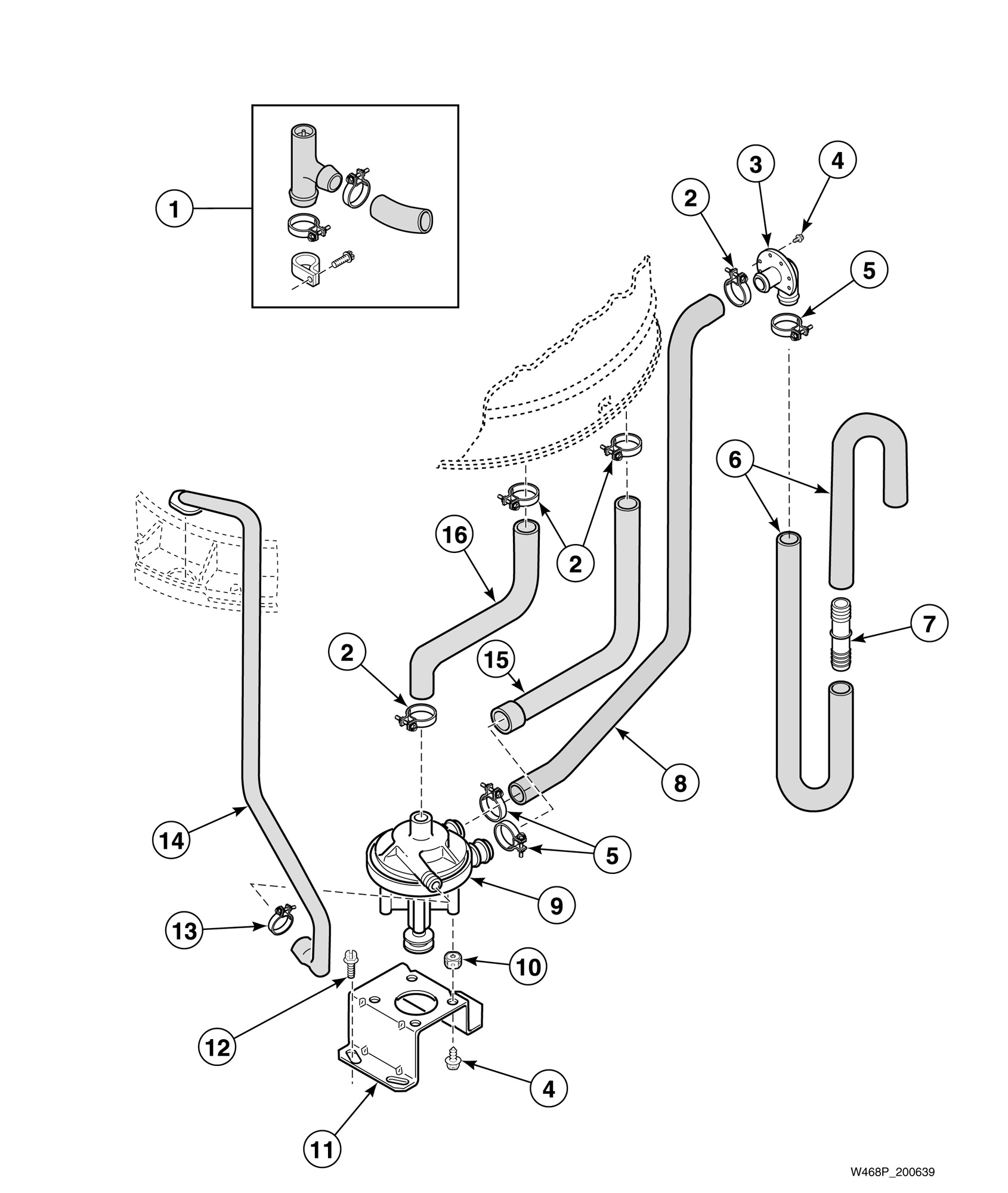

HA4590 Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 1 of 2)

Products

Position	Product
1	Siphon Break Kit (Comment: Must be installed in drain hose if the drain receptacle is lower than the cabinet top of the washer)
2	Hose Clamp
3	Drain Hose Elbow
4	Screw (Comment: Green)
5	Hose Clamp
6	Drain Hose
7	Hose Coupler (Comment: Use to splice hose if drain hose must be shortened. Cut hose between molded end and molded elbow)
8	Pump-to-Drain Elbow Hose
9	Pump Assembly (Comment: through Serial No. R1438801XN)
11	Pump Mounting Bracket
15	Drain Tub-to-Pump Hose
16	Wire Harness Assembly
