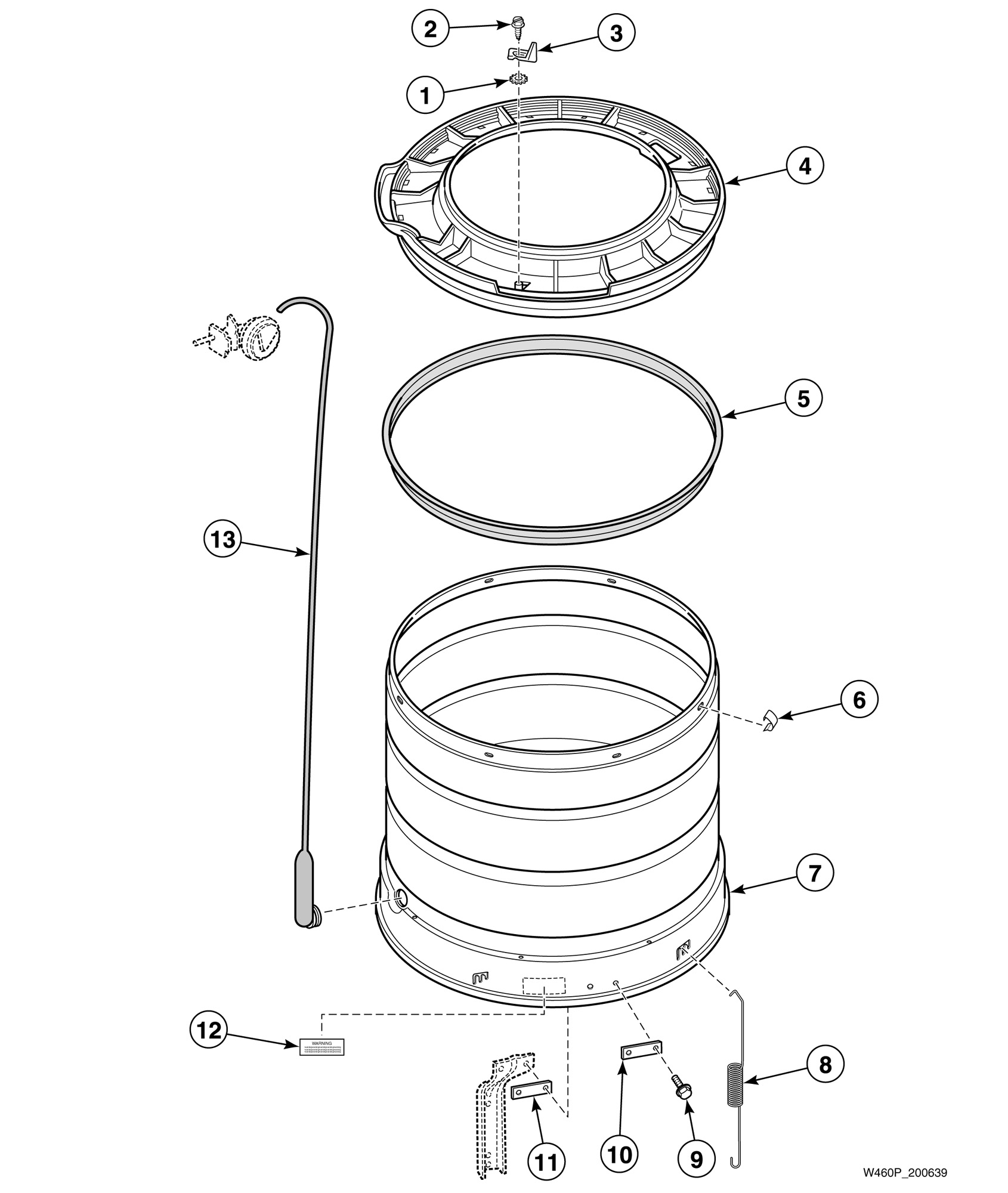

HA5000 Outer Tub, Cover and Pressure Hose (Drawing 1 of 2)admin2025-04-26T10:31:10+00:00HA5000 Outer Tub, Cover and Pressure Hose (Drawing 1 of 2) ProductsPositionProduct1Washer2Screw4Outer Tub Cover (Comment: Includes item 2)5Tub Cover Gasket (Comment: Includes 495P3 Hub and Seal Kit)6Spring Clip8Leg Spring9Screw10Leg Plate (Comment: .063 inches thick)12Wire Harness Assembly13Accumulator and Tubing Assembly (Comment: Models through Serial No. L3627520)
