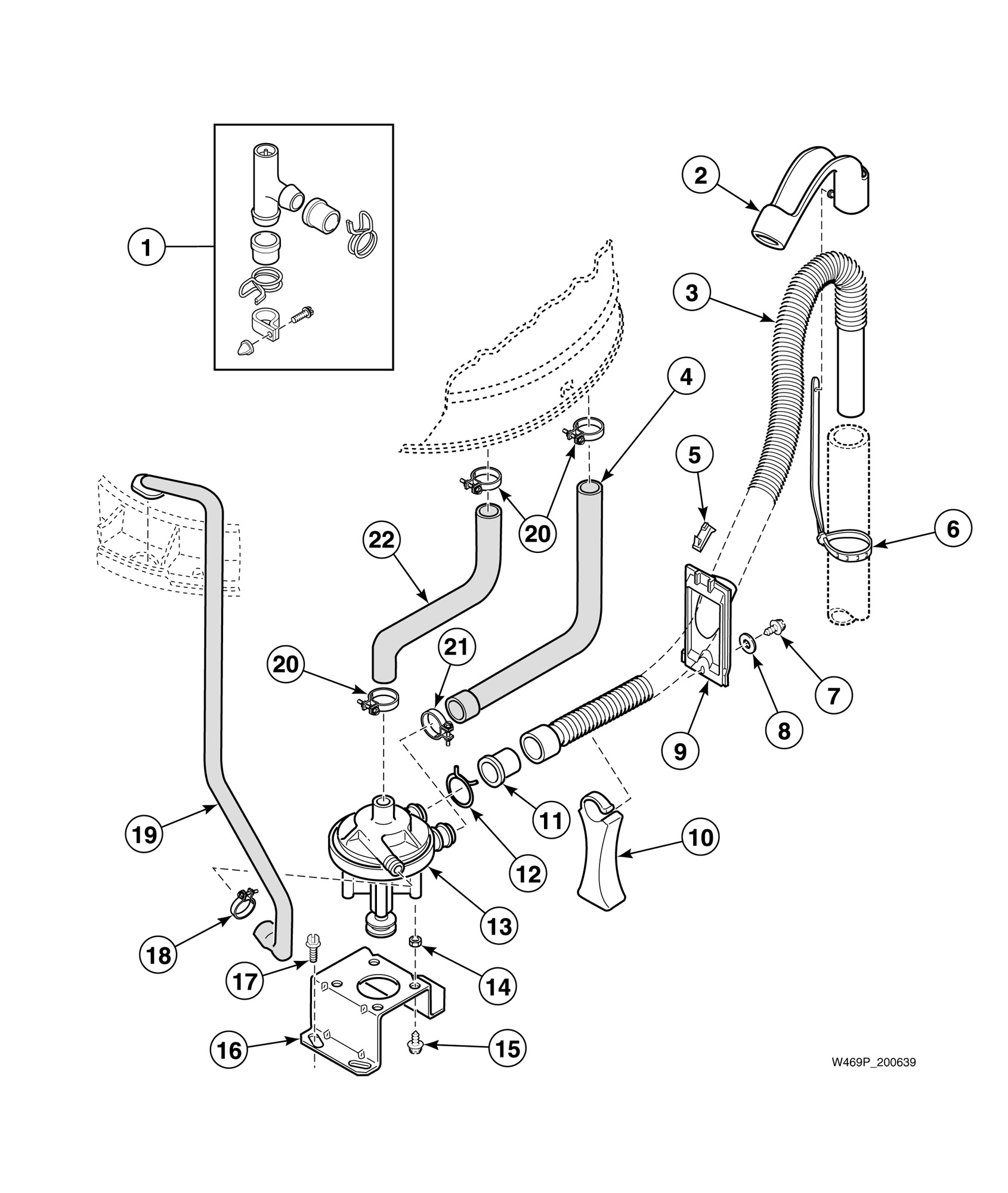

HA5001 Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)

Products

Position	Product
NA	Drain Extension Kit
1	Siphon Break Kit (Comment: Must be installed in drain hose if the drain receptacle is lower than the cabinet top of the washer)
3	Drain Hose
4	Drain Tub-to-Pump Hose
6	Standpipe Strap (Comment: Replaces 29999 Strap)
7	Screw
8	Washer
13	Pump Assembly (Comment: through Serial No. R1438801XN)
15	Screw (Comment: Green)
16	Pump Mounting Bracket
20	Hose Clamp
21	Hose Clamp
22	Wire Harness Assembly
