HA5320 Belts and Idler Assembly – Models Starting Serial No. C3486774

HA5320 Belts and Idler Assembly – Models Starting Serial No. C3486774

Written by

in

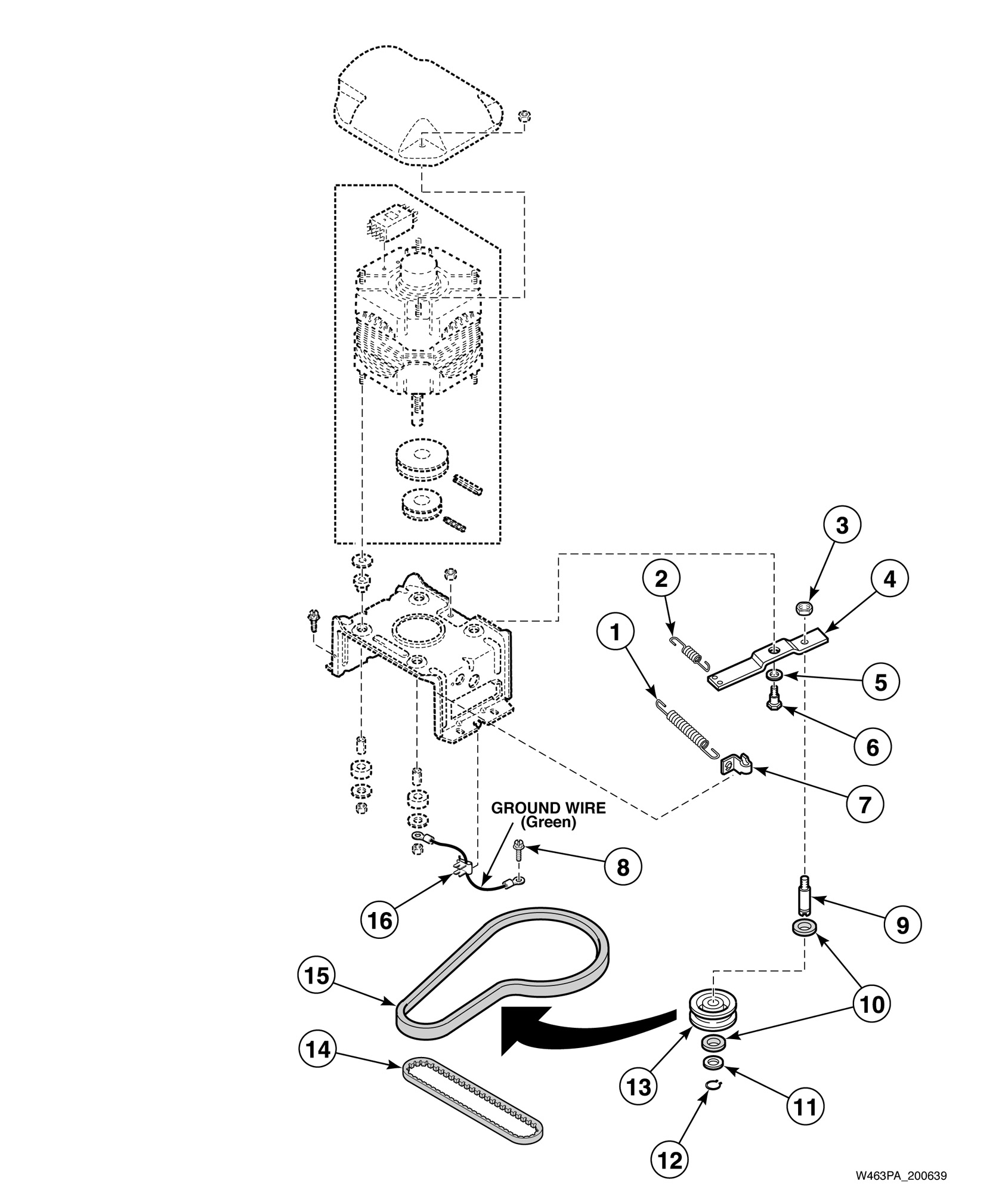

HA5320 Belts and Idler Assembly – Models Starting Serial No. C3486774

Products

PositionProduct
1Idler Spring
2Idler Lever Helper Spring
3Nut
4Idler Lever
5Washer
6Screw
7Spring Clip
8Screw (Comment: Green)
9Idler Shaft
10Washer
11Washer
12Retaining Ring
13Idler Pulley
14Pump Belt (Comment: Pump)
15Belt (Comment: Agitate and spin)
16Grounding Clip
