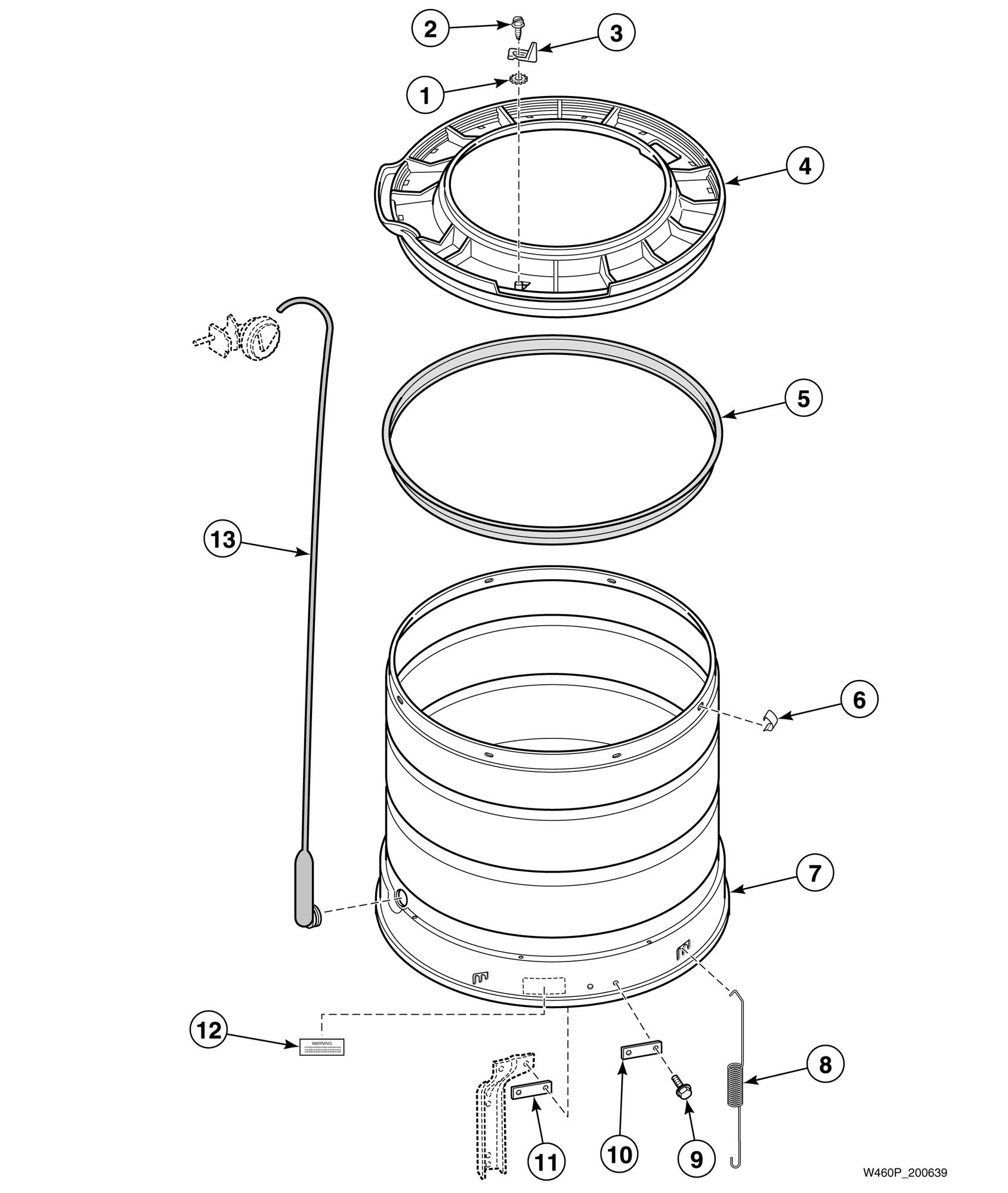

HA5320 Outer Tub, Cover and Pressure Hose (Drawing 1 of 2)

Written by

Products

Position	Product
1	Washer
2	Screw
4	Outer Tub Cover (Comment: Includes item 2)
5	Tub Cover Gasket (Comment: Includes 495P3 Hub and Seal Kit)
6	Spring Clip
8	Leg Spring
9	Screw
10	Leg Plate (Comment: .063 inches thick)
12	Wire Harness Assembly
13	Accumulator and Tubing Assembly (Comment: Models through Serial No. L3627520)
