HA6001 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Starting Serial No. N3605085

HA6001 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Starting Serial No. N3605085

Written by

in

HA6001 Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Starting Serial No. N3605085

Products

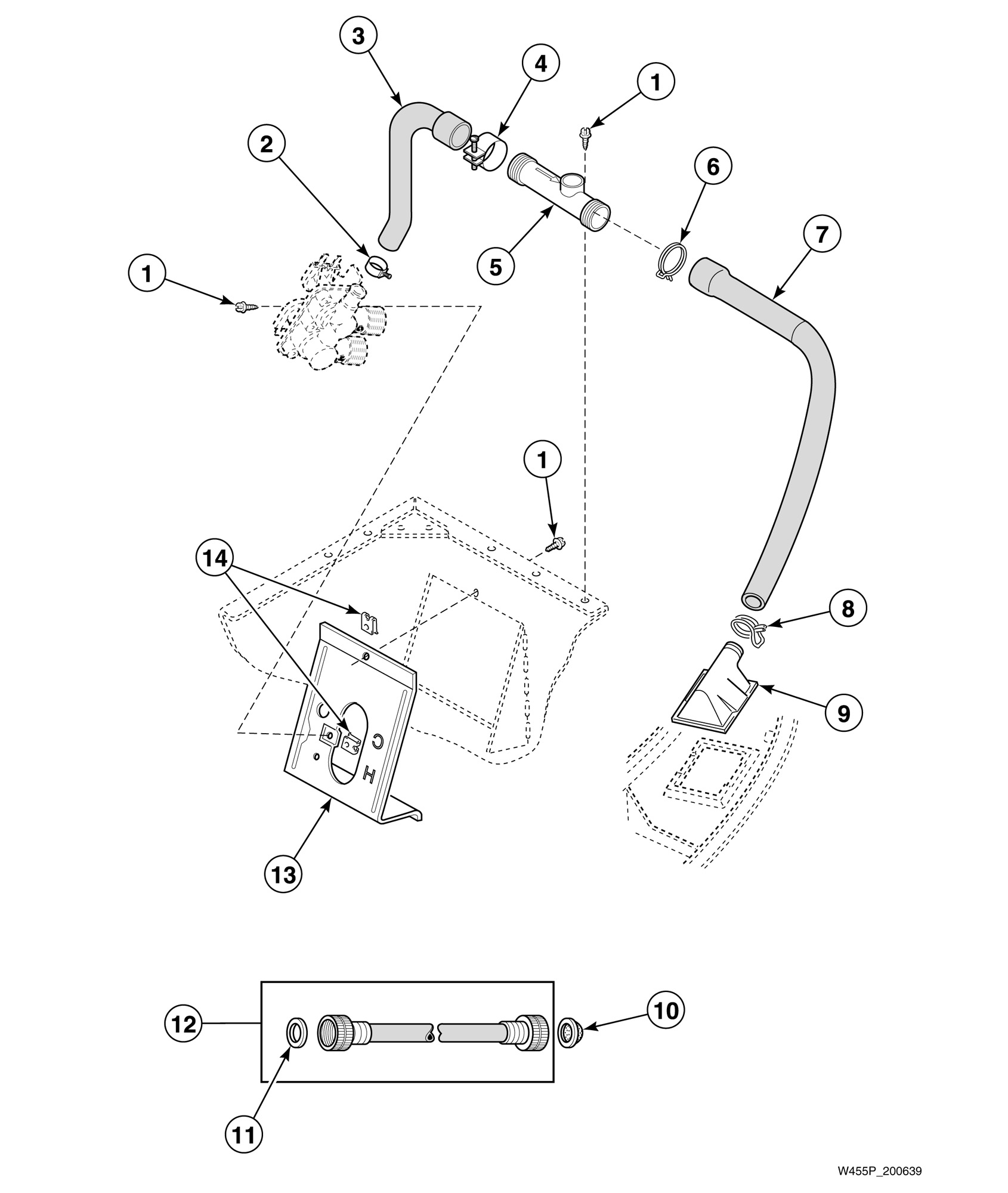

PositionProduct
1Screw
2Hose Clamp
3Mixing Valve Hose
4Hose Clamp
5Backflow Preventer Assembly
6Hose Clamp (Comment: Green)
7Water Inlet Hose
8Hose Clamp (Comment: Red)
10Filter Screen
11Washer
12Fill Hose Kit (Comment: Hose is equipped with 1 metric and 1 standard hose coupling)
12Fill Hose Kit (Comment: 4 feet, Hose is equipped with 2 standard hose couplings, Includes item 11)
13Mixing Valve Mounting Bracket (Comment: Replaces 27126 Mixing Valve Mounting Bracket)
14Wire Harness Assembly
