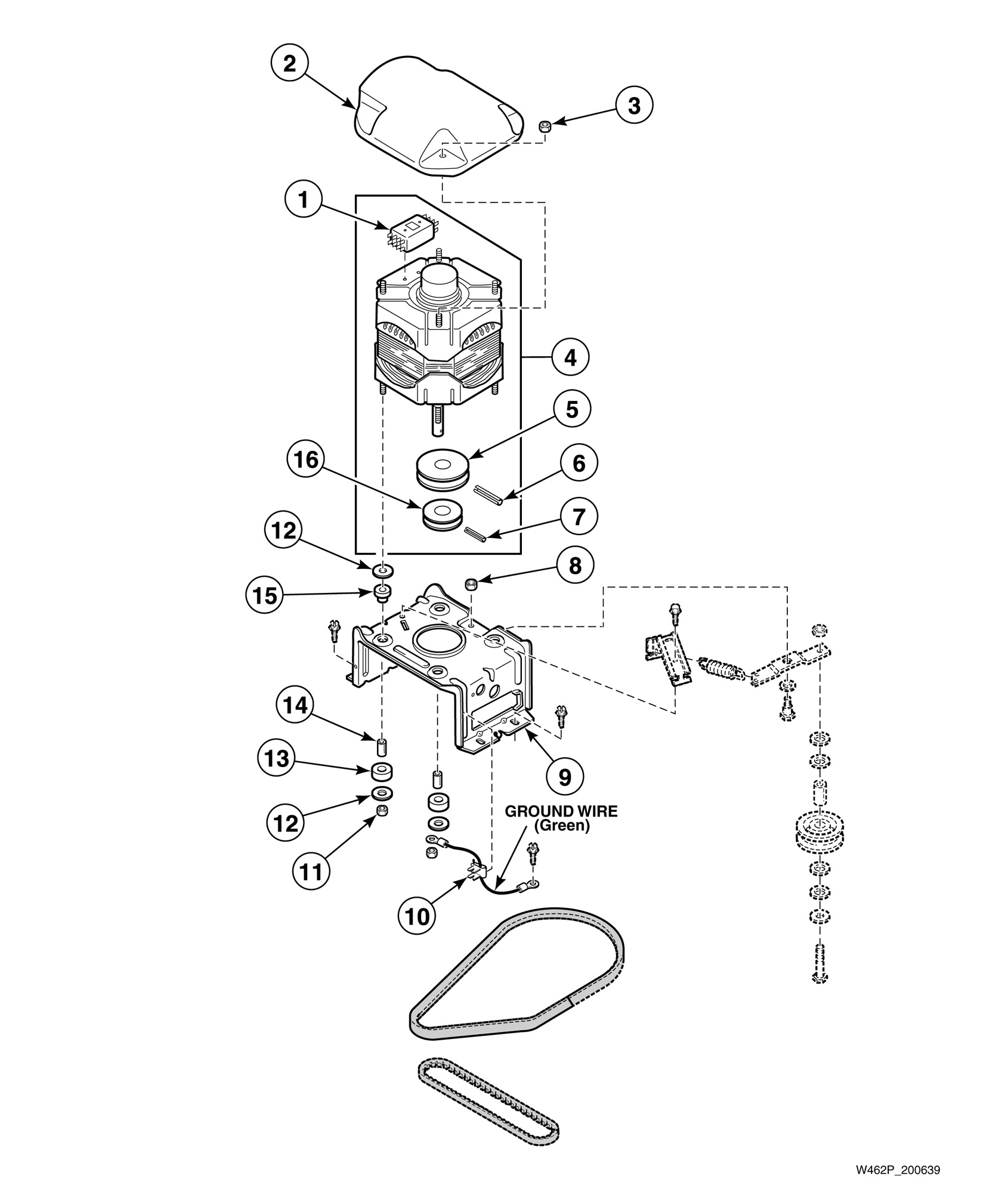

HA6001 Motor and Mounting Bracket – Models Through Serial No. C3486773

Written by

Products

Position	Product
NA	GEN 258P3
NA	Motor Harness Assembly
2	Motor Shield
4	Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase)
7	Roll Pin
8	Nut
9	GEN 28791
10	Grounding Clip
11	Nut
12	Washer
15	Wire Harness Assembly
16	GEN 27104
