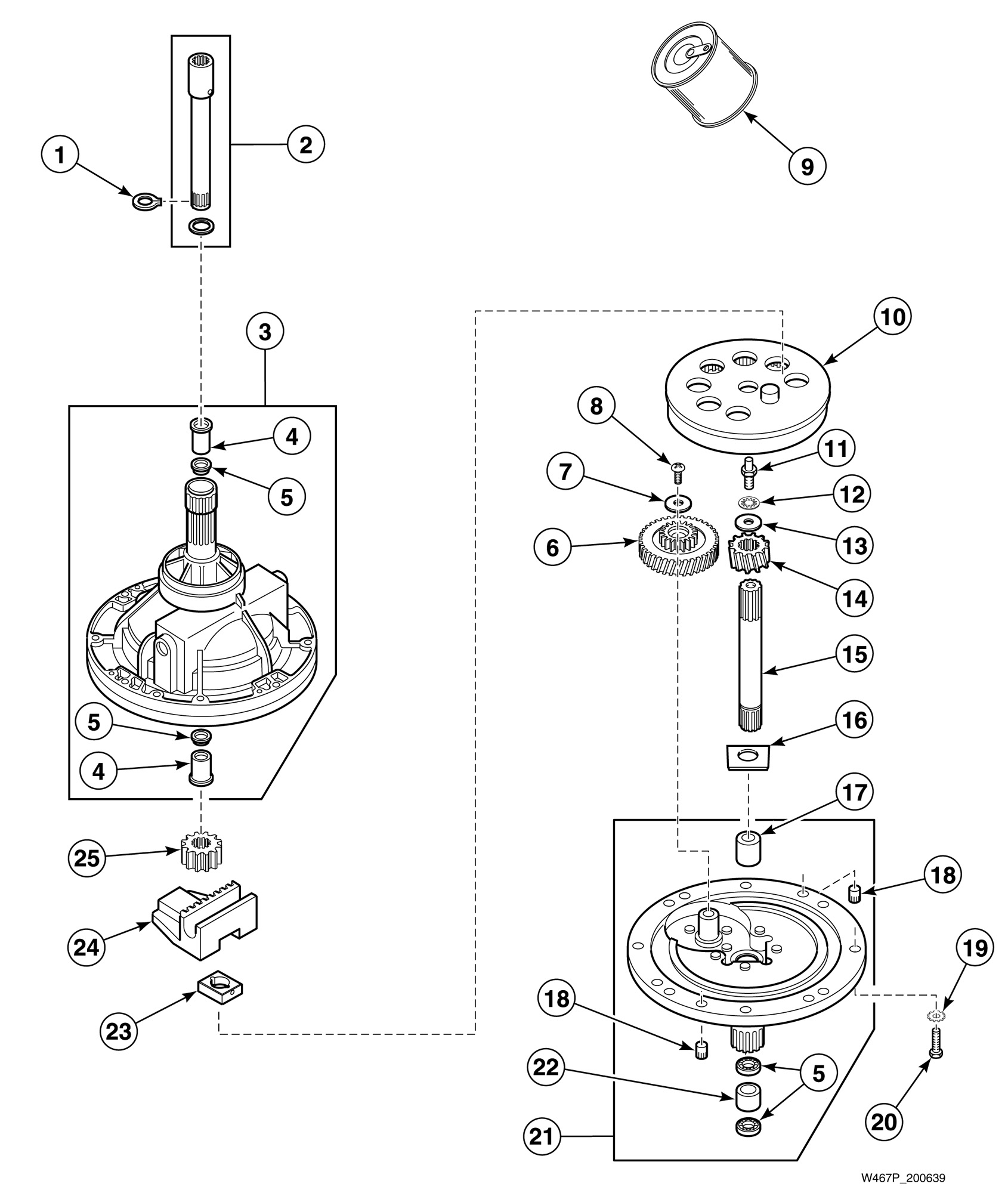

HA6001 Transmission Assembly

Products

Position	Product
NA	Wire Harness Assembly
NA	Transmission Sealant (Comment: Use as a sealant between transmission case and cover)
1	Retaining Ring
2	Coupling and Shaft Kit
3	Transmission Case Assembly
4	Packaged Bearing
5	Seal
6	Reduction Gear
7	Washer
8	Screw
9	Transmission Oil (Comment: 1 fill)
10	Gear and Stud Assembly
11	Screw
12	Washer
13	Washer
14	Input Pinion (Comment: Use with 28430 Transmission Assembly)
14	Drive Pinion (Comment: Use with 30946P Transmission Assembly)
15	Input Shaft
19	Washer
20	Screw
21	Transmission Cover Assembly
22	Bearing
23	Slide
24	Rack
25	Agitator Pinion
