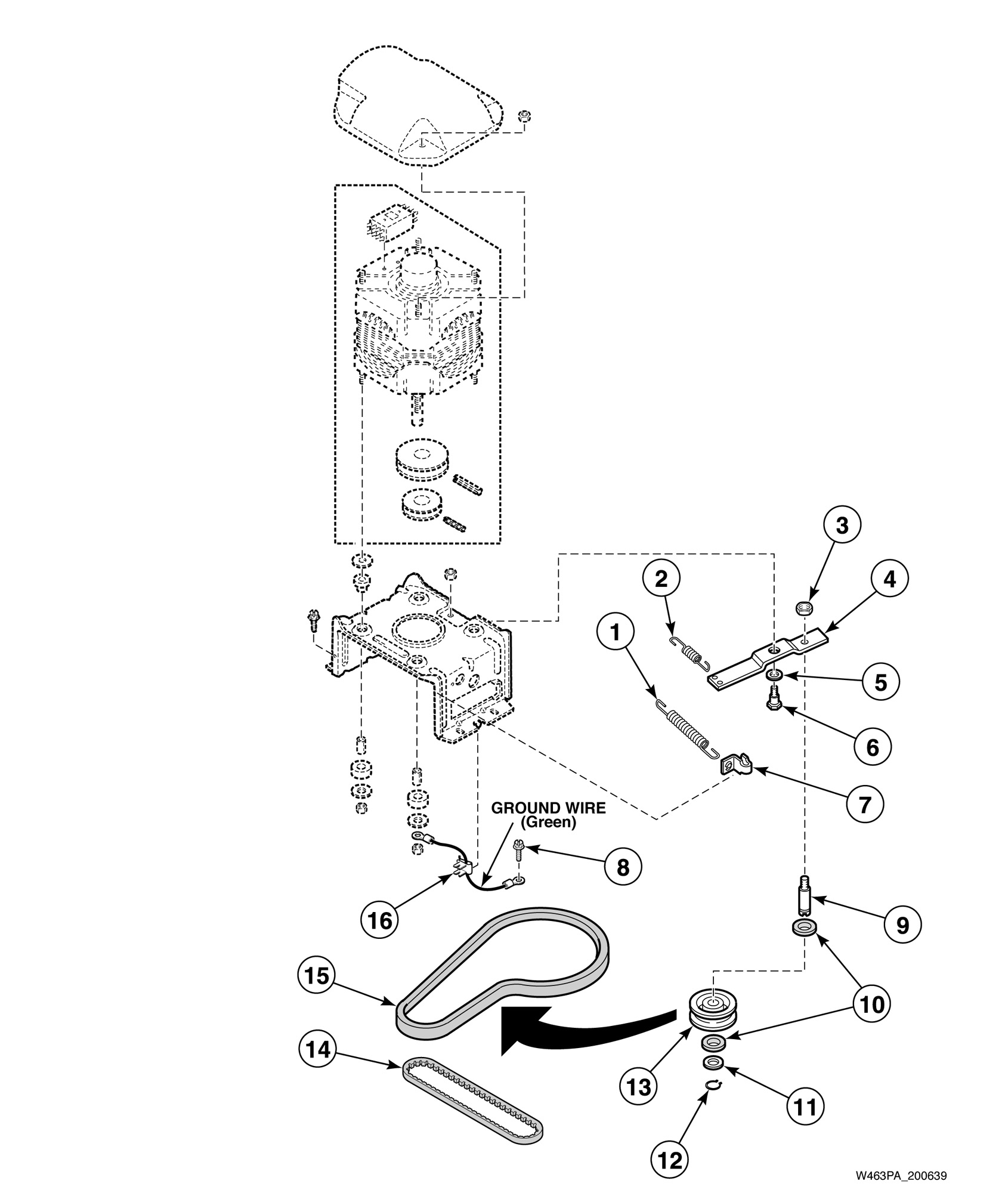

HA6470 Belts and Idler Assembly – Models Starting Serial No. C3486774

Written by

Products

Position	Product
1	Idler Spring
2	Idler Lever Helper Spring
3	Nut
4	Idler Lever
5	Washer
6	Screw
7	Spring Clip
8	Screw (Comment: Green)
9	Idler Shaft
10	Washer
11	Washer
12	Retaining Ring
13	Idler Pulley
14	Pump Belt (Comment: Pump)
15	Belt (Comment: Agitate and spin)
16	Grounding Clip
