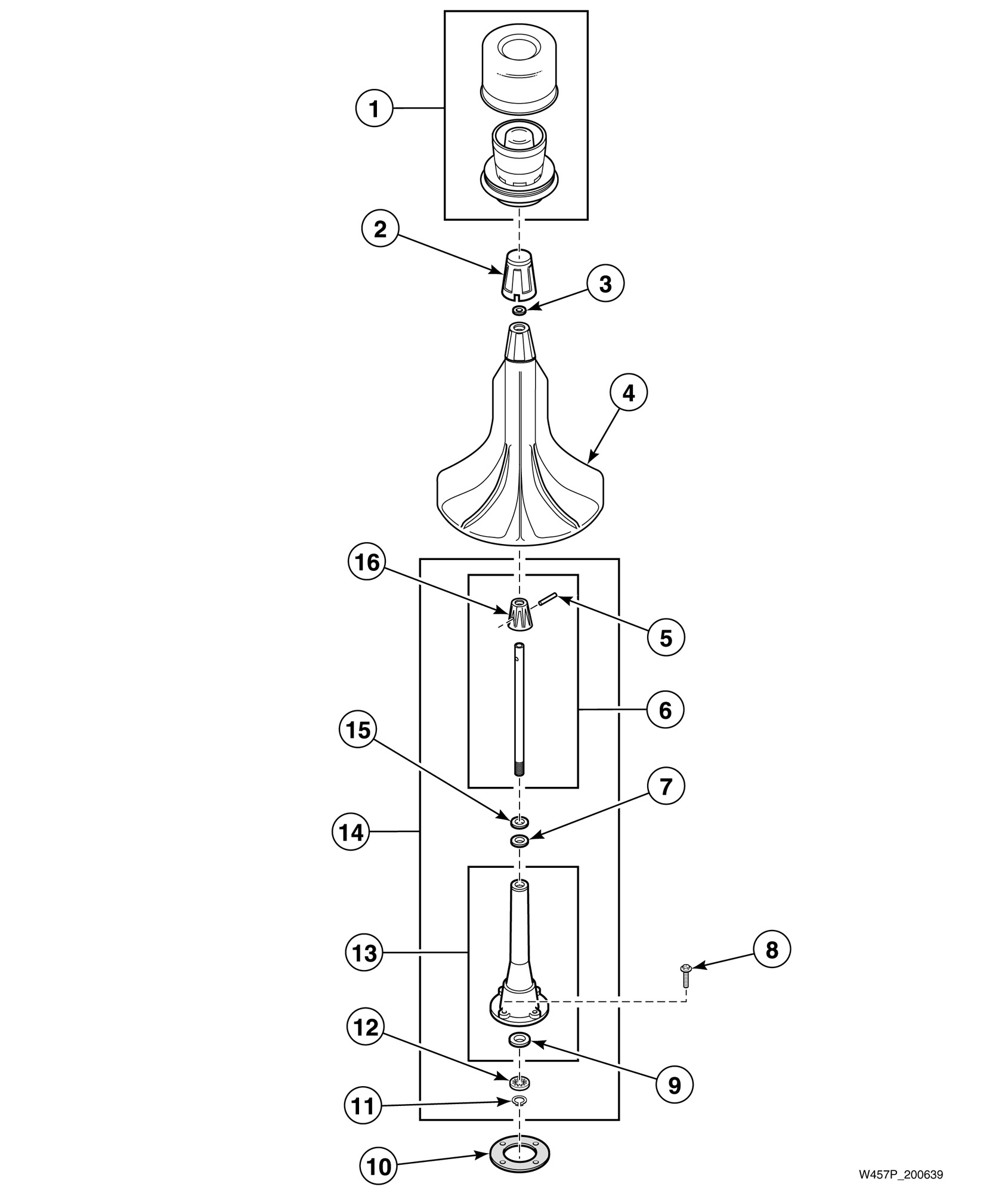

HA6471 Agitator and Post

Written by

Products

Position	Product
NA	Transmission Sealant (Comment: Use as a sealant between transmission case and cover)
3	Washer
7	Washer (Comment: Stainless steel)
8	Screw
10	Gasket (Comment: Use with 27130 Agitator Post or 27131 Agitator Post Assembly)
11	Retaining Ring
14	Wire Harness Assembly
15	Washer
16	Agitator Shaft Assembly
