HA6471 Motor and Mounting Bracket – Models Starting Serial No. C3486774
Written by
in

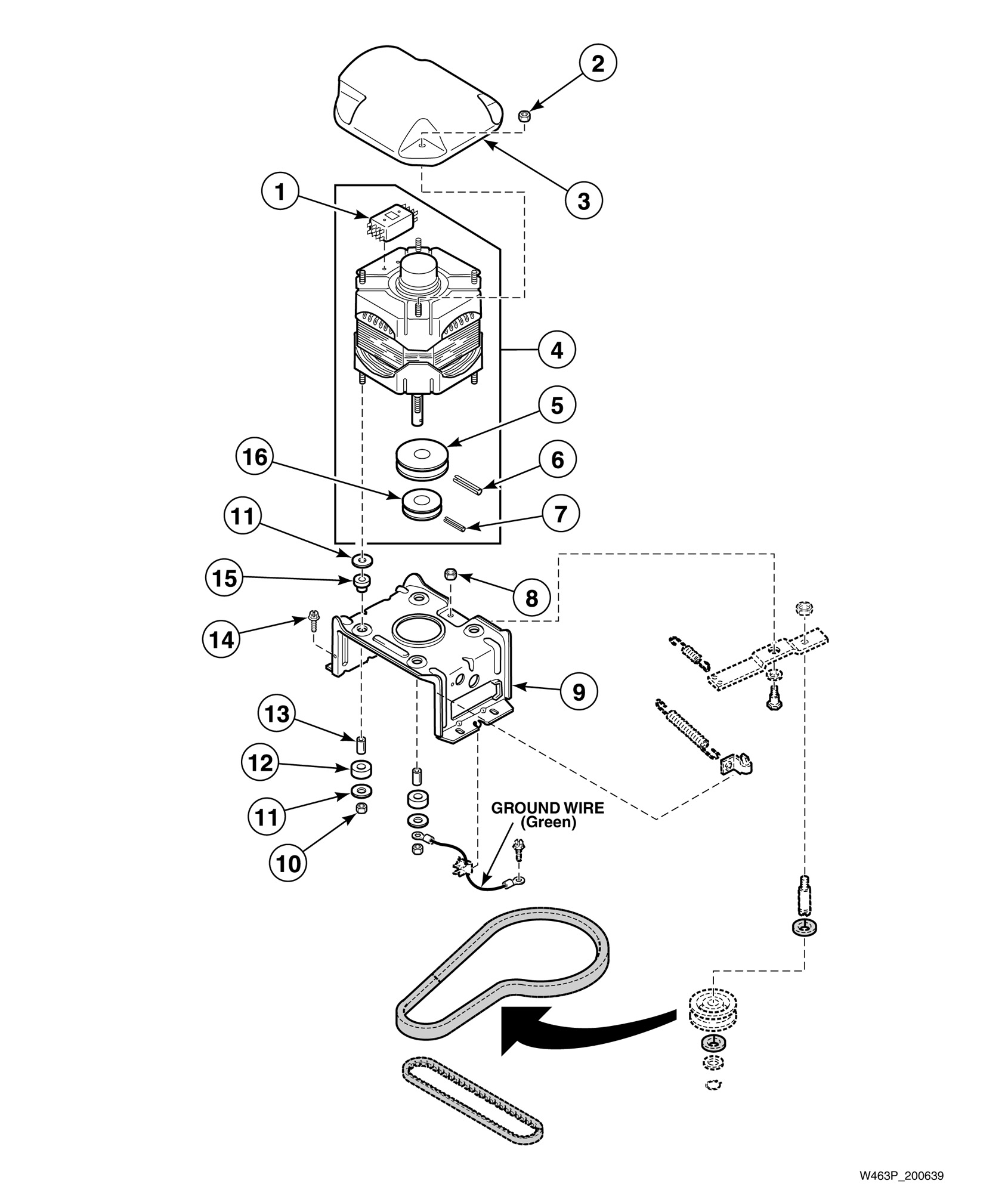

HA6471 Motor and Mounting Bracket – Models Starting Serial No. C3486774
Products
| Position | Product |
|---|---|
| NA | Motor Harness Assembly |
| NA | GEN 258P3 |
| 3 | Motor Shield |
| 4 | Motor Kit (Comment: 2 speed, 120 Volt/60 Hertz/1 Phase) |
| 7 | Roll Pin |
| 8 | Nut |
| 9 | GEN 28791 |
| 10 | Nut |
| 11 | Washer |
| 15 | Wire Harness Assembly |
| 16 | GEN 27104 |
