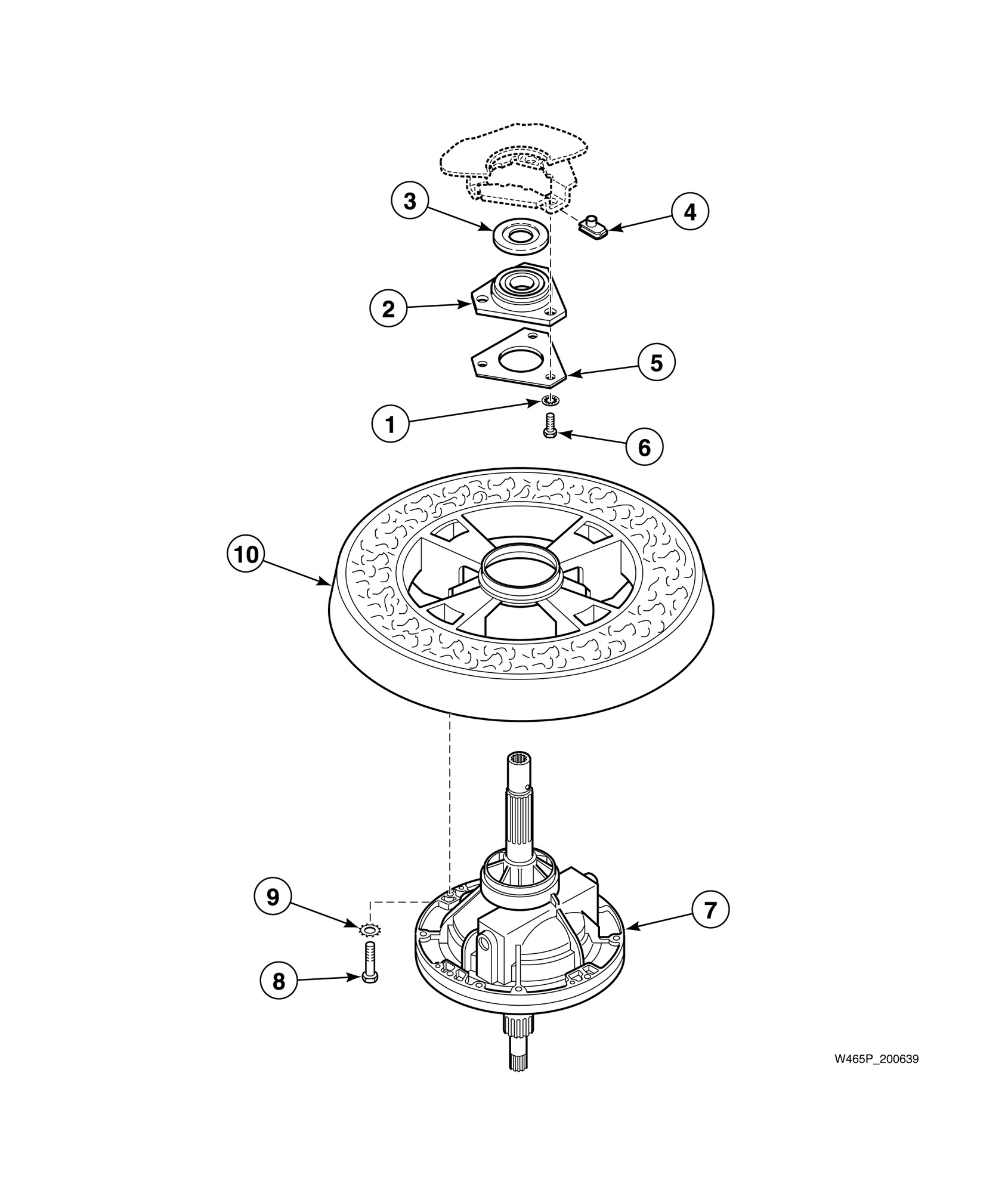

HA7001 Transmission Assembly and Balance Ring

Products

Position	Product
NA	Anti-Seize Compound (Comment: Apply to motor shaft before installing blower fan assembly)
1	Washer (Comment: Use with 02710 Cap Screw only)
2	Bearing Housing Assembly (Comment: Upper)
3	Flinger
4	Nut (Comment: Included with outer tub)
6	Screw
7	Transmission Assembly
7	Transmission Assembly (Comment: Replaces 30978 Transmission Assembly)
8	Wire Harness Assembly
9	Washer
10	Balance Ring Assembly
