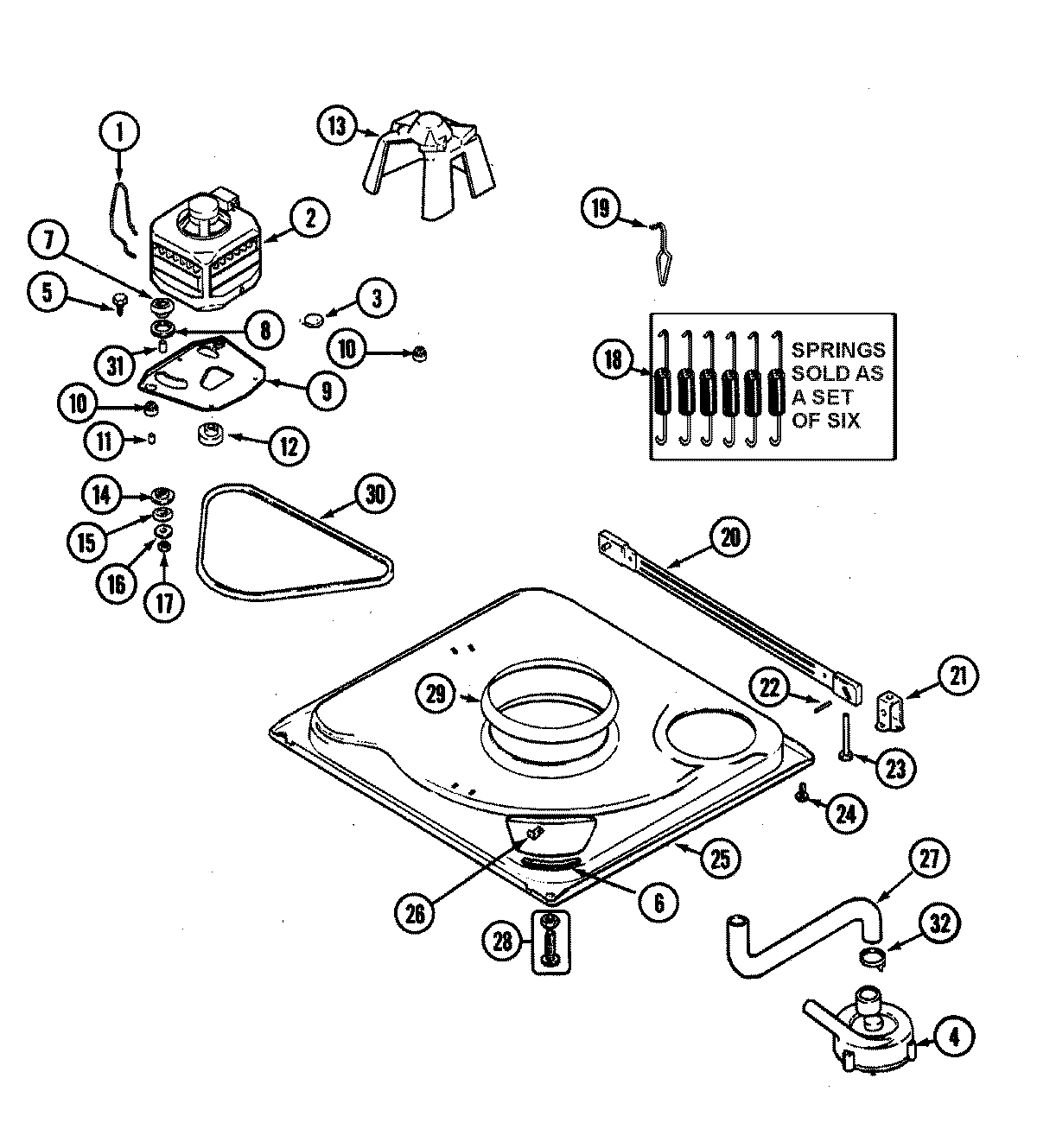

HAV4657AWW 01 – BASE

HAV4657AWW 01 – BASE

Written by

in

HAV4657AWW 01 – BASE

Products

PositionProduct
1WP22004376 Whirlpool Spring Motor
3FOOT SLIDE, ISOLATOR
4WP35-6780 Whirlpool Water Pump
5MAY 21001977
6MAY 35-2065
7WP33-9946 Whirlpool Isolator
8MAY 35-3570
9MAY 21001783
10WP35-3646 Whirlpool Isolator
11MAY 25-7831
12WP21001950 Whirlpool Drive Motor
13MAY 22002721
13MAY 21002015
14SLIDE, MOTOR
15WP33-9967 Whirlpool Washer Assembly
16MAY 25-7047
17WPY707702 Whirlpool Locknut
1812002773 Whirlpool Spring Kit (Pack of 6)
19WP21001166 Whirlpool Hook
20MAY 21001754
21MAY 35-2046
22MAY 35-2052
23WP22004469 Whirlpool Leg Foot
24WP489483 Whirlpool Screw
25MAY 21001982
25MAY 21001893
26SPEEDNUT, MOTOR
27WP21001915 Whirlpool Hose Tub
28FOOT & PAD ASSEMBLY (FRONT)
29WP21002026 Whirlpool Snubber Assembly
30WP21352320 Whirlpool Washer Drive Belt
31MAY 25-7830
32WP285655 Whirlpool Hose Clamp
