HC30CL 03 – CONVERTIBLE EYE-LEVEL VENT HOODS

Products

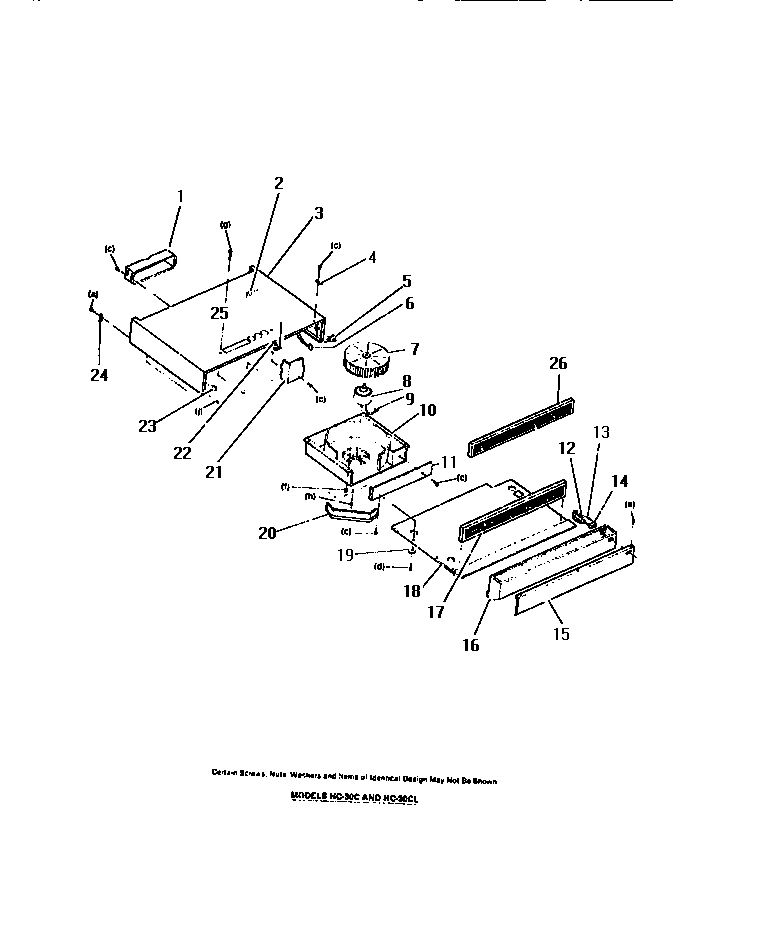

Position	Product
1	WCI 8013833
2	BUSHING, WIRE (2)
3	HOUSING, ALMOND
4	WCI 8013836
5	SWITCH ON-OFF (INCL. MOUNTING NUTS)
6	HARNESS TO MOTOR
7	WHEEL-BLOWER (INCL. SET SCREW)
8	WCI 8013839
9	WCI 8013845
10	WCI 8013838
11	WCI 8013841
12	WCI 8013825
13	WCI 8013824
14	WCI 8013822
15	WCI 8013821
16	WCI 8013823
17	WCI 8013826
18	WCI 8013829
20	WCI 8013837
21	WCI 8013830
22	HARNESS TO RANGE
23	WCI 8013828
24	RETAINER TO PRODUCT (2)
25	WCI 8013846
