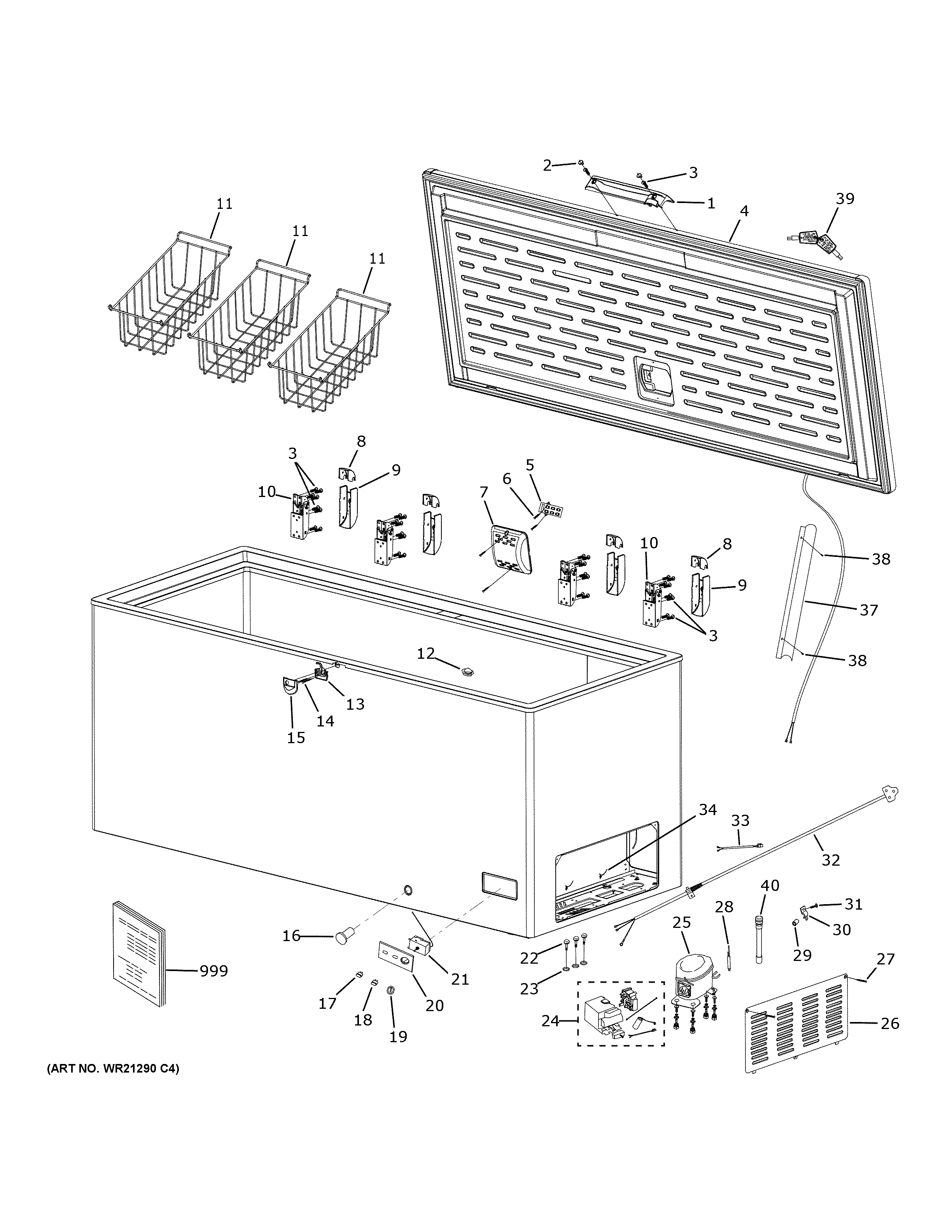

HCM18QWBWW FREEZER

Products

Position	Product
1	WR12X28041 GE Refrigerator Freezer Door Handle – White
2	WR01X28054 GE Cover Screw White
3	SCREW
4	WHITE DOOR & GASKET
5	WR55X30078 GE LED Light
6	WR01X28030 GE Screw St3.5 X 13
7	LED LIGHT COVER
8	WR13X28037 GE White Top Hinge Cover
9	WR13X28039 GE Bottom Cover White
10	HINGE FREEZER DOOR 18"
11	BASKET
12	WR01X43467 GE Drain Plug
13	WR01X28052 GE Refrigerator Door Lock
14	SCREW
15	WR13X28055 GE Refrigerator Door Lock Cover
16	WR01X36306 GE Refrigerator Exterior Drain Plug
17	WR01X41889 GE Green Power Indicator Light
18	RED LIGHT
19	THERMOSTAT KNOB
20	CONTROL PANEL COVER – WHITE
21	THERMOSTAT
22	GROUNDING SCREW M4 X 8
23	WASHER
24	COMPRESSOR ELECTRICALS
25	COMPRESSOR
26	WR14X36085 GE Refrigerator Access Cover
27	WR01X27843 GE Screw 3.5 x 13
28	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
29	WR02X12194 GE Refrigerator Rubber Grommet
30	CLAMP POWER CORD
31	SCREW ST4.2 X 13
32	POWER CORD
33	WIRE HARNESS
34	WR01X10745 GE Wire Tie
37	HARNESS DOOR COVER
38	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
39	WR01X28053 GE Refrigerator Freezer Door Key
40	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM OWNERS MANUAL
999	PRINTED ONLY MINI MANUAL AND WIRING
