HCM9CTBCD FREEZER

Products

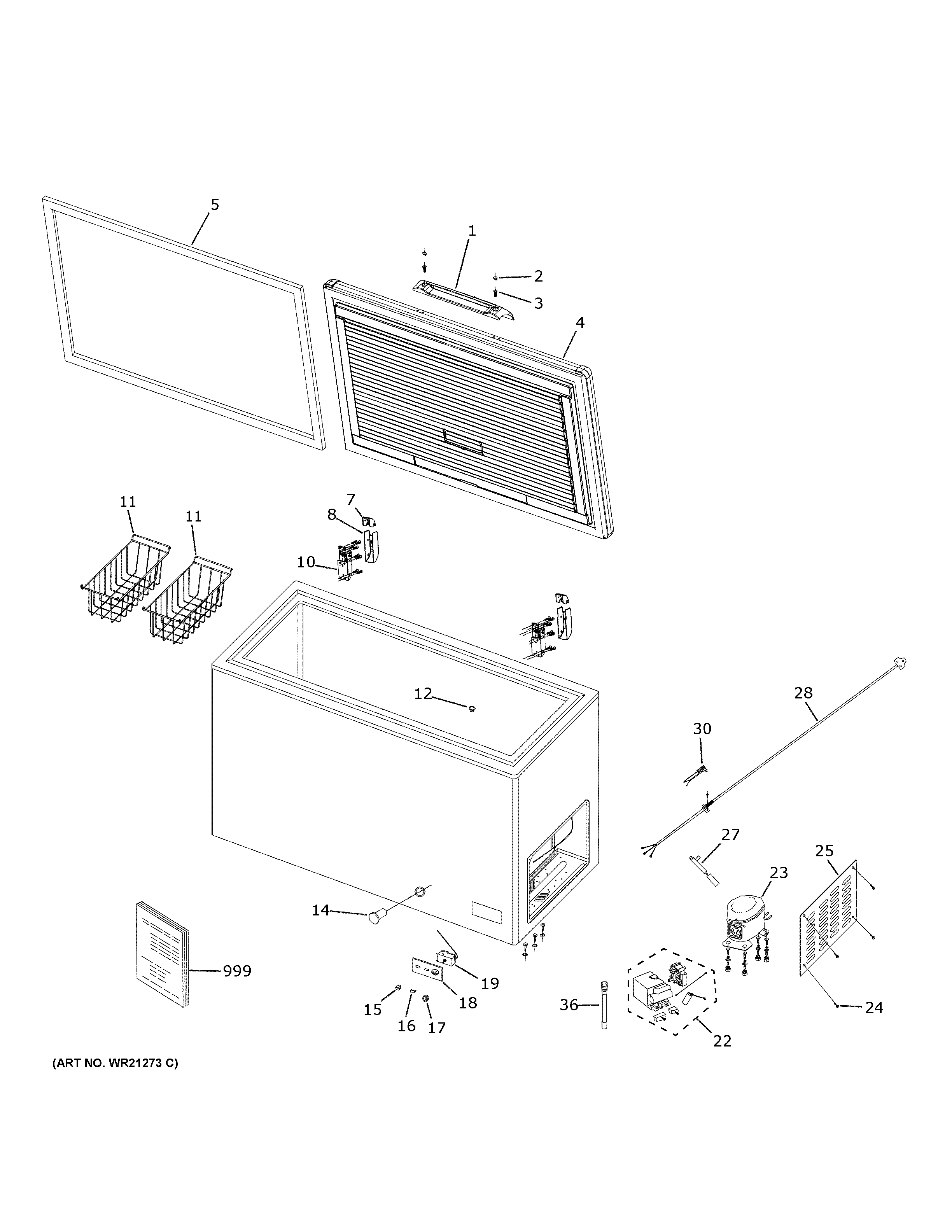

Position	Product
1	DOOR HANDLE – GREY
2	SCREW COVER – GREY
3	WR01X35245 GE Refrigerator Screw
4	FREEZER DOOR – CAMO
5	GASKET – GREY
7	TOP HINGE COVER – GREY
8	BOTTOM HINGE COVER – GREY
10	WR12X27822 GE Freezer Door Handle
11	WR71X41886 GE Basket
12	WR01X36306 GE Refrigerator Exterior Drain Plug
14	DRAIN PLUG EXTERIOR – GREY
15	WR01X41889 GE Green Power Indicator Light
16	LIGHT COVER – GREY
17	CONTROL KNOB – GREY
18	CONTROL PANEL – GREY
19	THERMOSTAT
22	WR87X45445 GE Compressor Electrical Components
23	WR87X37830 GE Compressor
24	WR01X27843 GE Screw 3.5 x 13
25	ACCESS COVER – CAMO
27	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
28	POWER CORD
30	COMPRESSOR HARNESS
36	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM MINI MANUAL AND WIRING
999	PM QUICK OWNERS MANUAL
