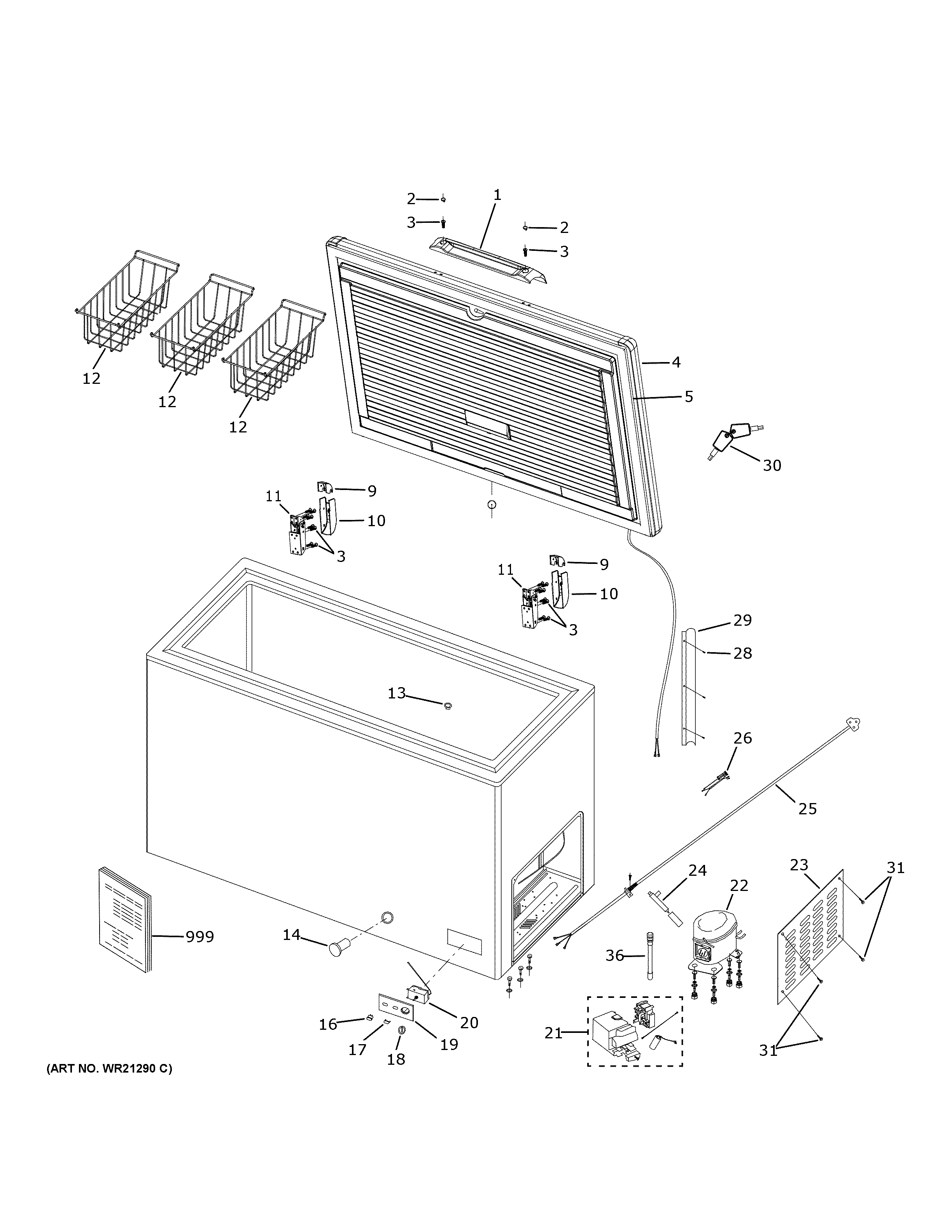

HCM9CWBCD FREEZER

Products

Position	Product
1	DOOR HANDLE – GREY
2	SCREW COVER – GREY
3	WR01X35245 GE Refrigerator Screw
4	CAMO DOOR
5	GASKET – GREY
9	TOP HINGE COVER – GREY
10	BOTTOM HINGE COVER – GREY
11	WR12X27822 GE Freezer Door Handle
12	WR71X41886 GE Basket
13	WR01X43467 GE Drain Plug
14	DRAIN PLUG EXTERIOR – GREY
16	WR01X41889 GE Green Power Indicator Light
17	LIGHT COVER – GREY
18	CONTROL KNOB – GREY
19	CONTROL PANEL – GREY
20	THERMOSTAT
21	WR87X33865 GE Compressor Electricals
22	WR87X43585 GE Compressor
23	ACCESS COVER – CAMO
24	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
25	POWER CORD
26	COMPRESSOR HARNESS
28	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
29	HARNESS DOOR COVER
30	WR01X28053 GE Refrigerator Freezer Door Key
31	WR01X27843 GE Screw 3.5 x 13
36	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM QUICK OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
