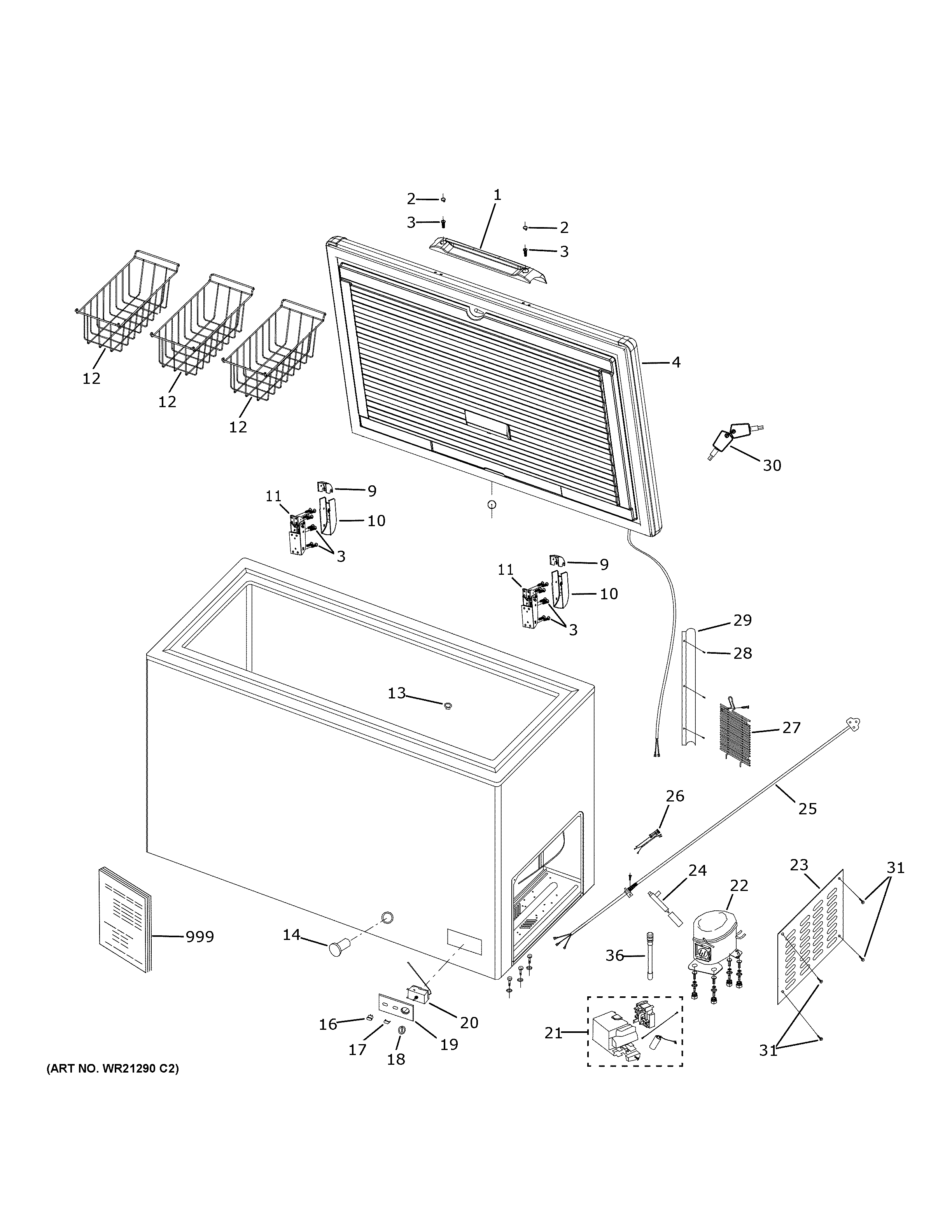

HCM9QWBWW FREEZER

Products

Position	Product
1	WHITE HANDLE
2	WR01X28054 GE Cover Screw White
3	WR01X35245 GE Refrigerator Screw
4	WHITE DOOR
9	COVER HINGE TOP WHITE
10	COVER HINGE BOTTOM WHITE
11	WR12X27822 GE Freezer Door Handle
12	WR71X41886 GE Basket
13	WR01X43467 GE Drain Plug
14	WR01X36306 GE Refrigerator Exterior Drain Plug
16	WR01X41889 GE Green Power Indicator Light
17	WR13X42206 GE Light Cover
18	WR01X42207 GE Control Knob – White
19	CONTROL PANEL – WHITE
20	THERMOSTAT
21	WR87X33865 GE Compressor Electricals
22	WR87X43585 GE Compressor
23	ACCESS COVER
24	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
25	POWER CORD
26	COMPRESSOR HARNESS
27	COVER REAR
28	WR01X27789 GE Refrigerator Screw ST3.5 x 9.5
29	HARNESS DOOR COVER
30	WR01X28053 GE Refrigerator Freezer Door Key
31	WR01X27843 GE Screw 3.5 x 13
36	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM QUICK OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
