HCM9STBWW FREEZER

Products

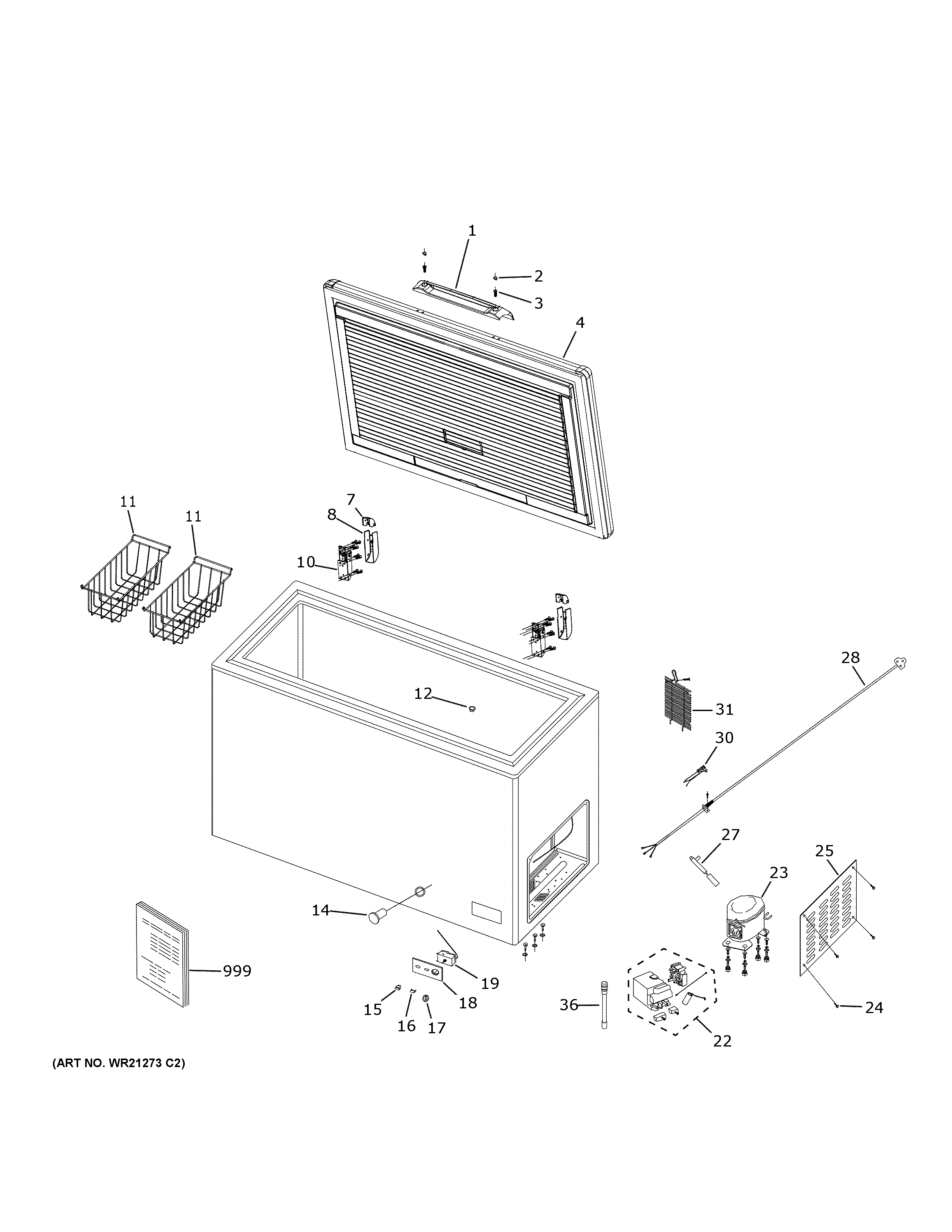

Position	Product
1	WHITE HANDLE
2	WR01X35245 GE Refrigerator Screw
3	WR01X28054 GE Cover Screw White
4	WR78X41885 GE Freezer Door White
7	COVER HINGE TOP WHITE
8	COVER HINGE BOTTOM WHITE
10	WR12X27822 GE Freezer Door Handle
11	WR71X41886 GE Basket
12	WR01X43467 GE Drain Plug
14	WR01X36306 GE Refrigerator Exterior Drain Plug
15	WR01X41889 GE Green Power Indicator Light
16	WR13X42206 GE Light Cover
17	WR01X42207 GE Control Knob – White
18	CONTROL PANEL – WHITE
19	WR09X27830 GE Freezer Thermostat
22	WR87X45445 GE Compressor Electrical Components
23	WR87X37830 GE Compressor
24	WR01X27843 GE Screw 3.5 x 13
25	ACCESS COVER
27	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
28	POWER CORD
30	COMPRESSOR HARNESS
31	COVER REAR
36	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
999	PM MINI MANUAL AND WIRING
999	PM QUICK OWNERS MANUAL
