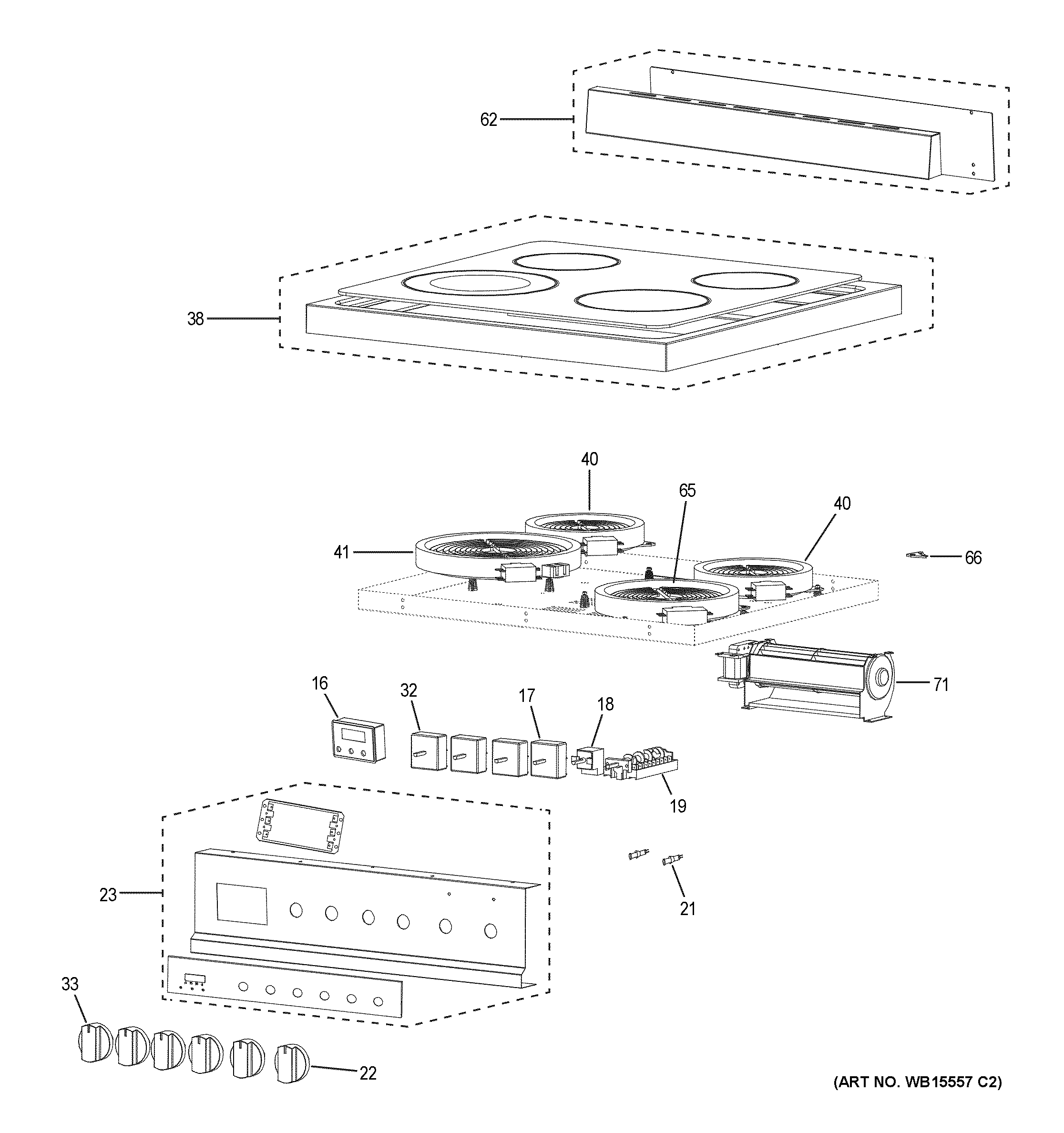

HCR2250AES CONTROL PANEL & COOKTOP

Products

PositionProduct
16WB24X28323 GE Range Timer
17WB24X28404 GE Infinite Switch
18WB24X28409 GE Oven Thermostat
19WB24X28414 GE Selector Switch
21HOT LIGHT INDICATOR
22WB03X28306 GE Oven Knob
23CONTROL PANEL OVERLAY
32INFINITE SWITCH
33KNOB
38WB62X30674 GE Maintop Assembly
40RADIANT ELEMENT
41WB30X28413 GE Double Radiant Element
62WB36X30663 GE Backsplash
65WB30X28411 GE Radiant Element
66RADIANT ELEMENT BRACKET
71COOLING FAN
