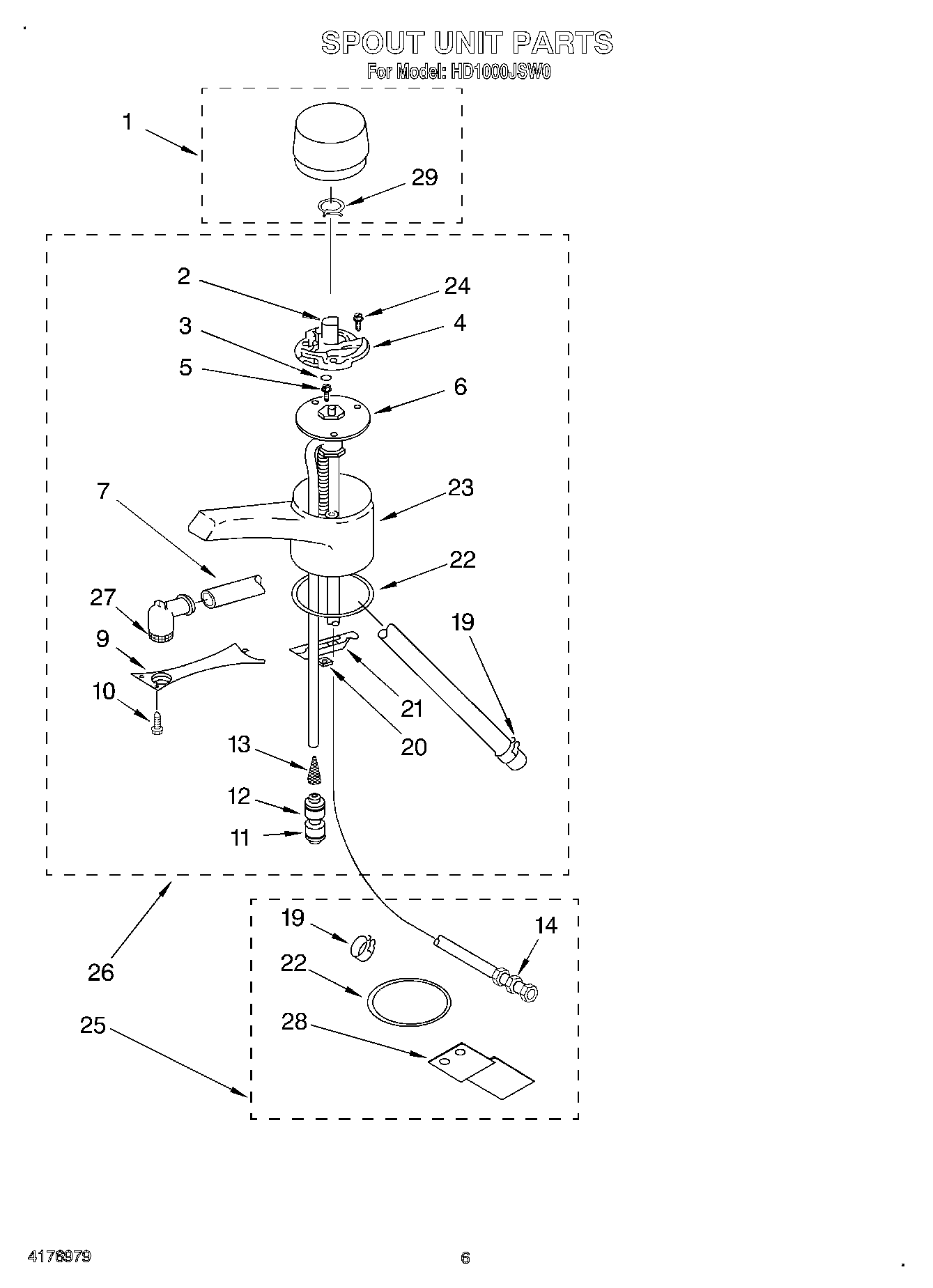

HD1000JSW0 04 – SPOUT UNIT

Products

PositionProduct
1Knob (Almond)
1Knob (White)
1Knob (Black)
2Hub, Valve Drive
3Spring, Compression
4Cam
5Cap Screw, 1/4-20 X 5“ Rd.
6Mechanical Valve (Includes Illus. 13 & 14)
7Tube (3/8“ I.D.)
9Plate, Spout
10Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11WP2198677 Whirlpool Refrigerator Connector
12Cover, Collet
13Screen, Inlet
19Clamp, Hose
20Machine Nut 1/4-20 Sq.
21Bracket, Spout Mounting
22Seal, Sink
23Faucet Spout (Chrome)
23Faucet Spout (White)
23Faucet Spout (Almond)
24489392 Whirlpool Refrigerator Screw
25Hardware, Installation
26Faucet Assembly (Chrome)
26Faucet Assembly (White)
26Faucet Assembly (Almond)
27Flow Screen
28Bracket, Mounting
29Clamp, Hose
