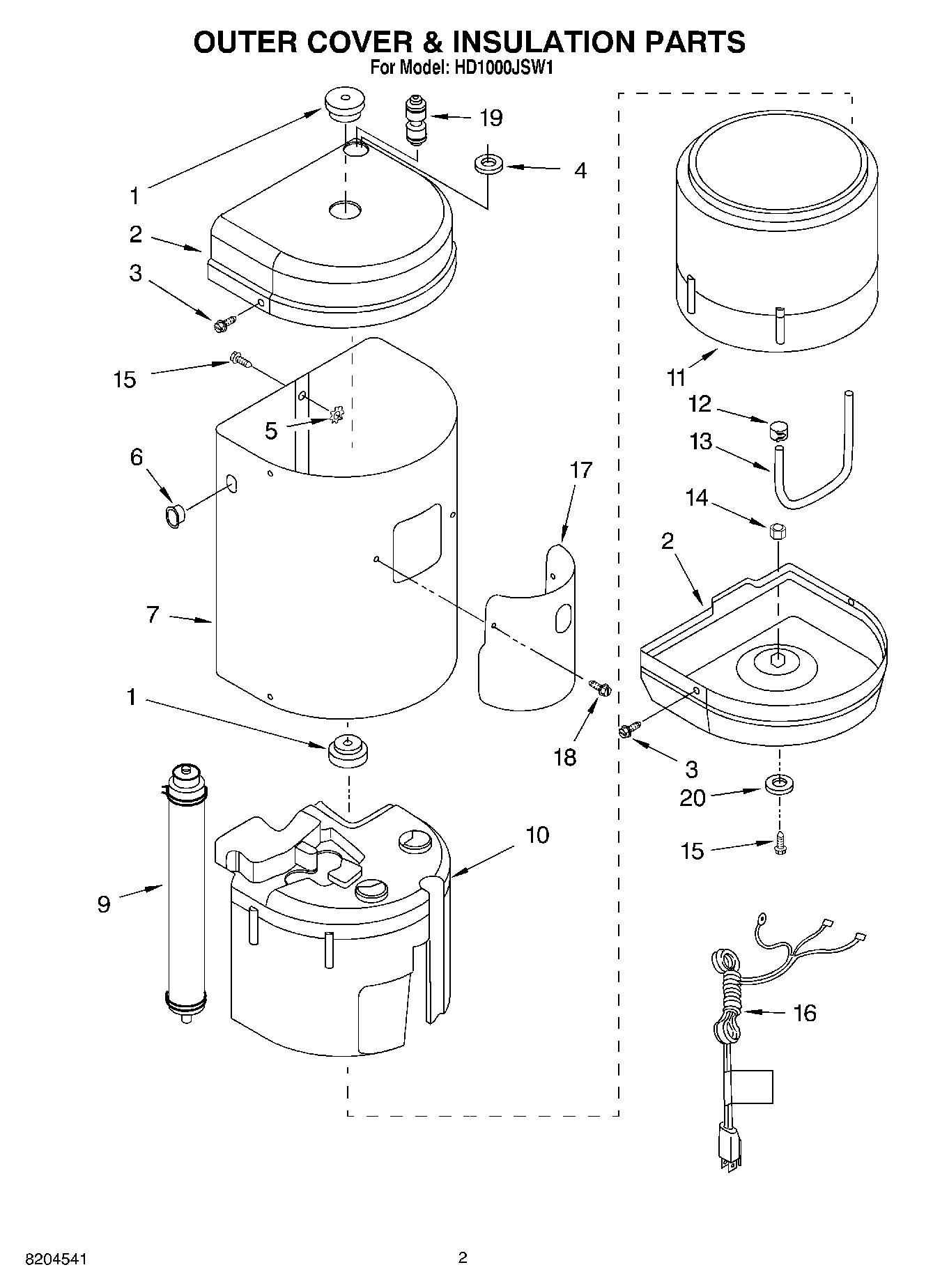

HD1000JSW1 01 – OUTER COVER & INSULATION PARTS

Products

PositionProduct
1Bushing, Molded
2Cap, Bottom
3W11245710 Whirlpool Refrigerator Screw
4Grommet
54159493 Whirlpool Lockwasher
6Strain Releif, Power Cord
7Shell
9Displacer
10Insulation, Top
11Insulation, Bottom
12Clamp, Hose
13Hose, Clear
14Nut, Mounting
15Screw, 8-32X.5 (stainless)
16Cord, Power
17Front Cover
18WP313808 Whirlpool Screw
19WP2198677 Whirlpool Refrigerator Connector
20O-Ring
20Instructions, Installation & Use And Care
20FOLLOWING PARTS NOT ILLUSTRATED
20LITERATURE PARTS
20Literature Parts (Repair Parts List)
