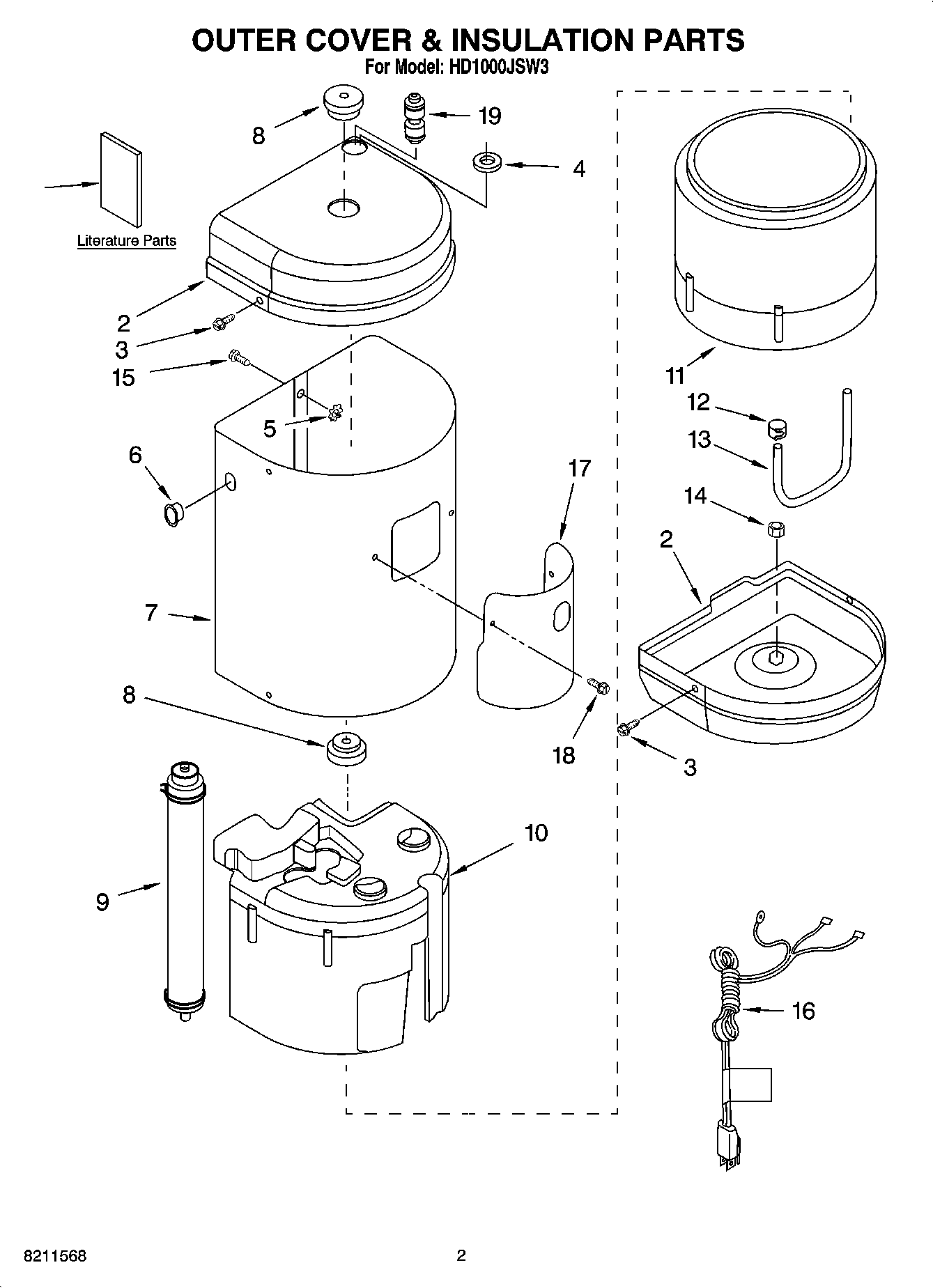

HD1000JSW3 01 – OUTER COVER & INSULATION PARTS

Products

Position	Product
1	Instructions, Installation & Use & Care guide
2	Cap, Bottom
3	W11245710 Whirlpool Refrigerator Screw
4	Grommet
5	4159493 Whirlpool Lockwasher
6	Strain Releif, Power Cord
7	Shell
8	Bushing, Molded
9	Displacer
10	Insulation, Top
11	Insulation, Bottom
12	Clamp, Hose
13	Hose, Clear
14	Nut, Mounting
15	Screw, 8-32X.5 (stainless)
16	Cord, Power
17	Front Cover
18	WP313808 Whirlpool Screw
19	WP2198677 Whirlpool Refrigerator Connector
