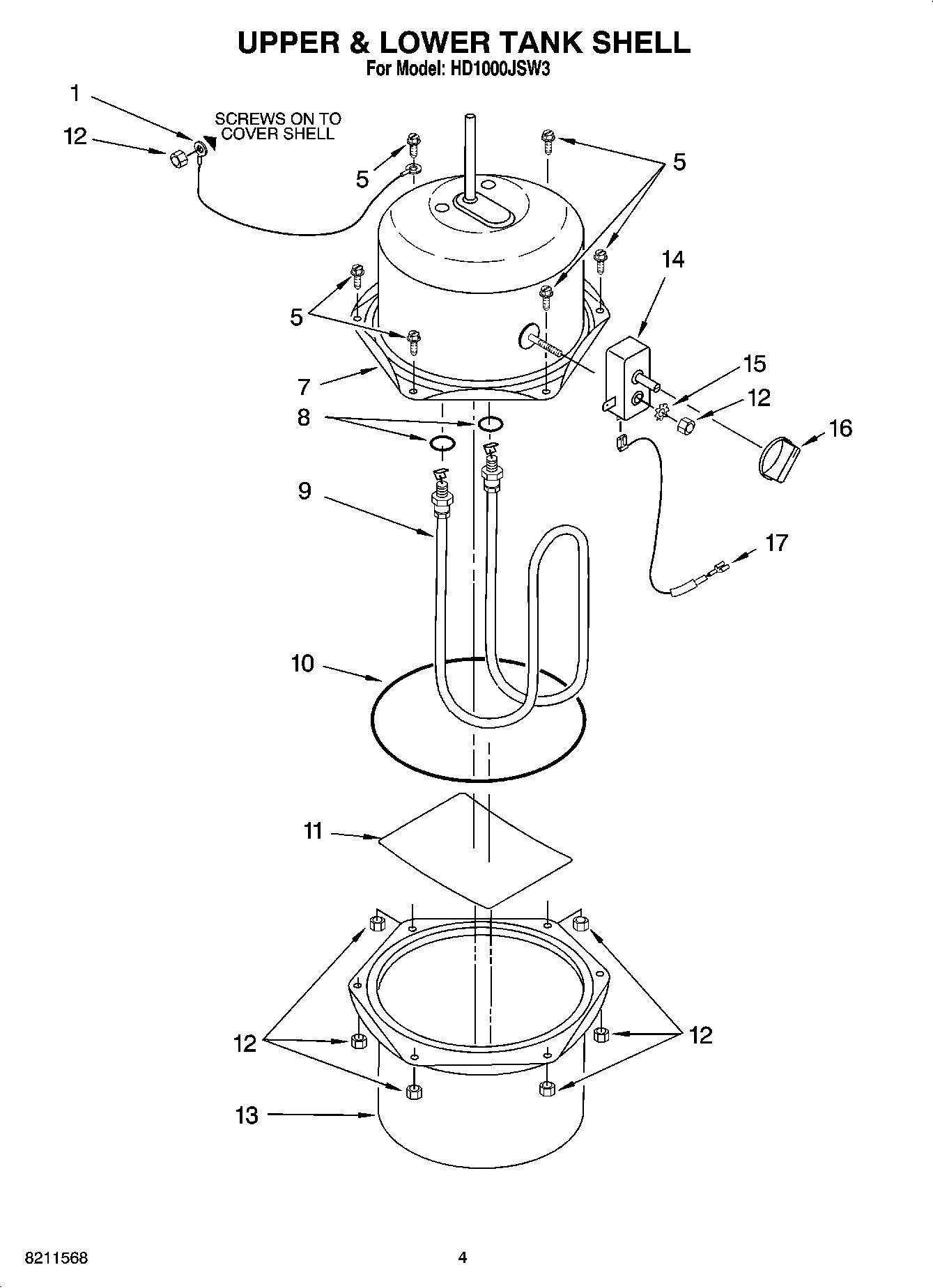

HD1000JSW3 02 – UPPER & LOWER TANK SHELL

Products

Position	Product
1	Ground Wire
5	WPW10068250 Whirlpool Dishwasher Screw
7	Shell, Tank Upper
8	O-Ring
9	Element, Heating (Includes item No.6)
10	``O``, Ring
11	Deflector
12	Nut, Mounting
13	Shell, Tank Lower
14	THERMOSTAT
15	4159493 Whirlpool Lockwasher
16	Knob, Thermostat
17	Fuse, Thermal
