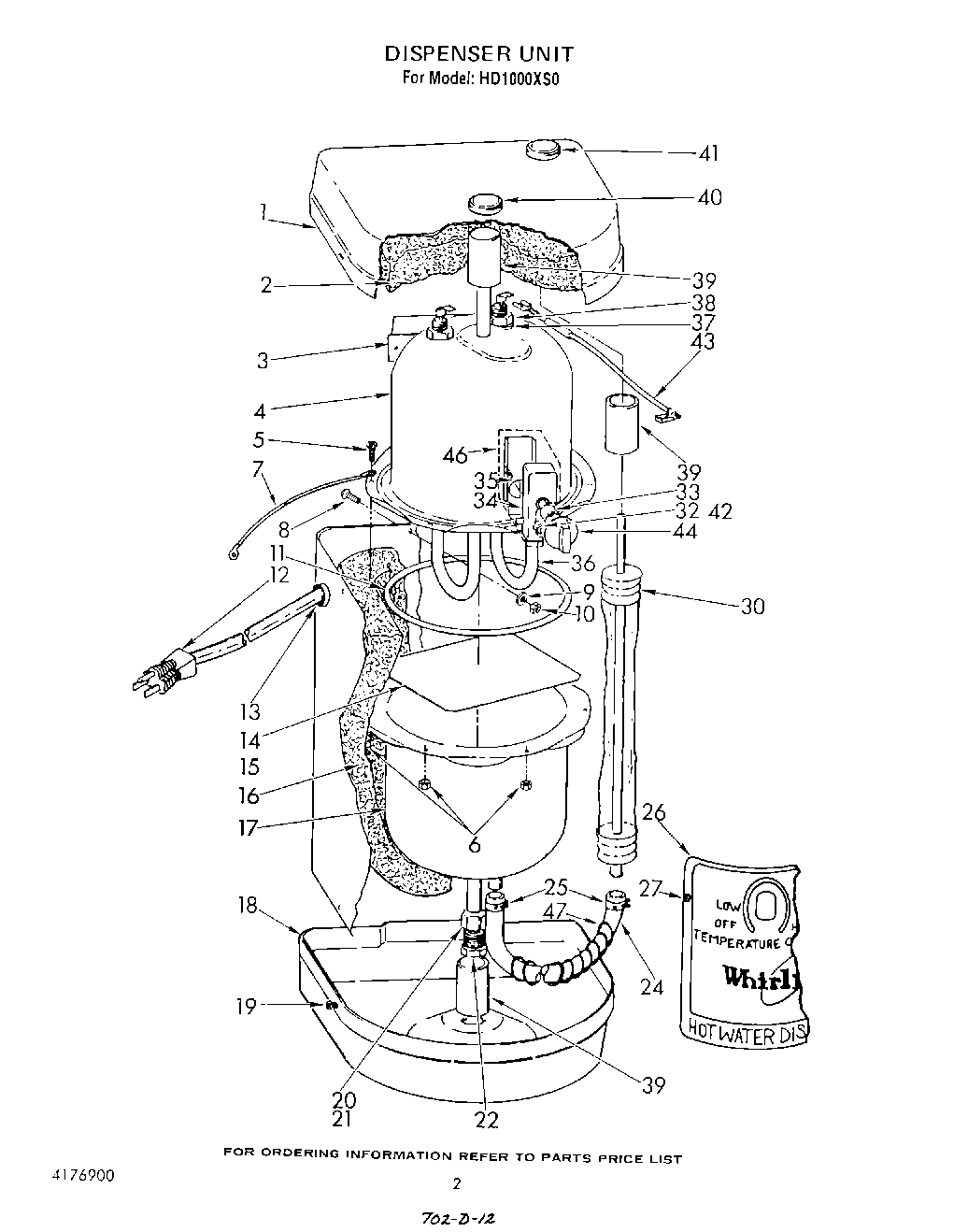

HD1000XS0 02 – DISPENSER

HD1000XS0 02 – DISPENSER

Written by

in

HD1000XS0 02 – DISPENSER

Products

PositionProduct
1Cap, Top
2Upper Insulation
3Bracket, Mounting
4Upper Tank & Tube
5WPW10068250 Whirlpool Dishwasher Screw
7Ground Wire
8WP3400814 Whirlpool Screw
11O-Ring
12Cord & Plug
13Strain Relief
14Deflector
15Shell Cover
16Insulation Tank
17Lower Tank
18Cap, Bottom
19W11245710 Whirlpool Refrigerator Screw
20Nut, Tube Fitting (3/8“)
21Sleeve, Tube Fitting (3/8“)
22Plug, Drain
24Hose, Clear
25Clamp, Hose
26Front Cover
27W10853069 Whirlpool Screw
30Displacer
32Nut, Mounting
33Bushing, Thermostat
34Thermostat
35Cover, Dust (Thermostat)
36Heater Element (Includes Illus. 38)
37“O“, Ring
38Nut, Heating Element
39Spacer (3)
40Bushing, Molded
41Molded Bushing
424159493 Whirlpool Lockwasher
43Fuse, Thermal
44Knob, Thermostat
46Thermostat & Dust Cover (Includes Illus. No.34 & 35)
47Spring, Hose (Anti-Kink)
47Upper Tank (Includes Illus. 4 & 36)
