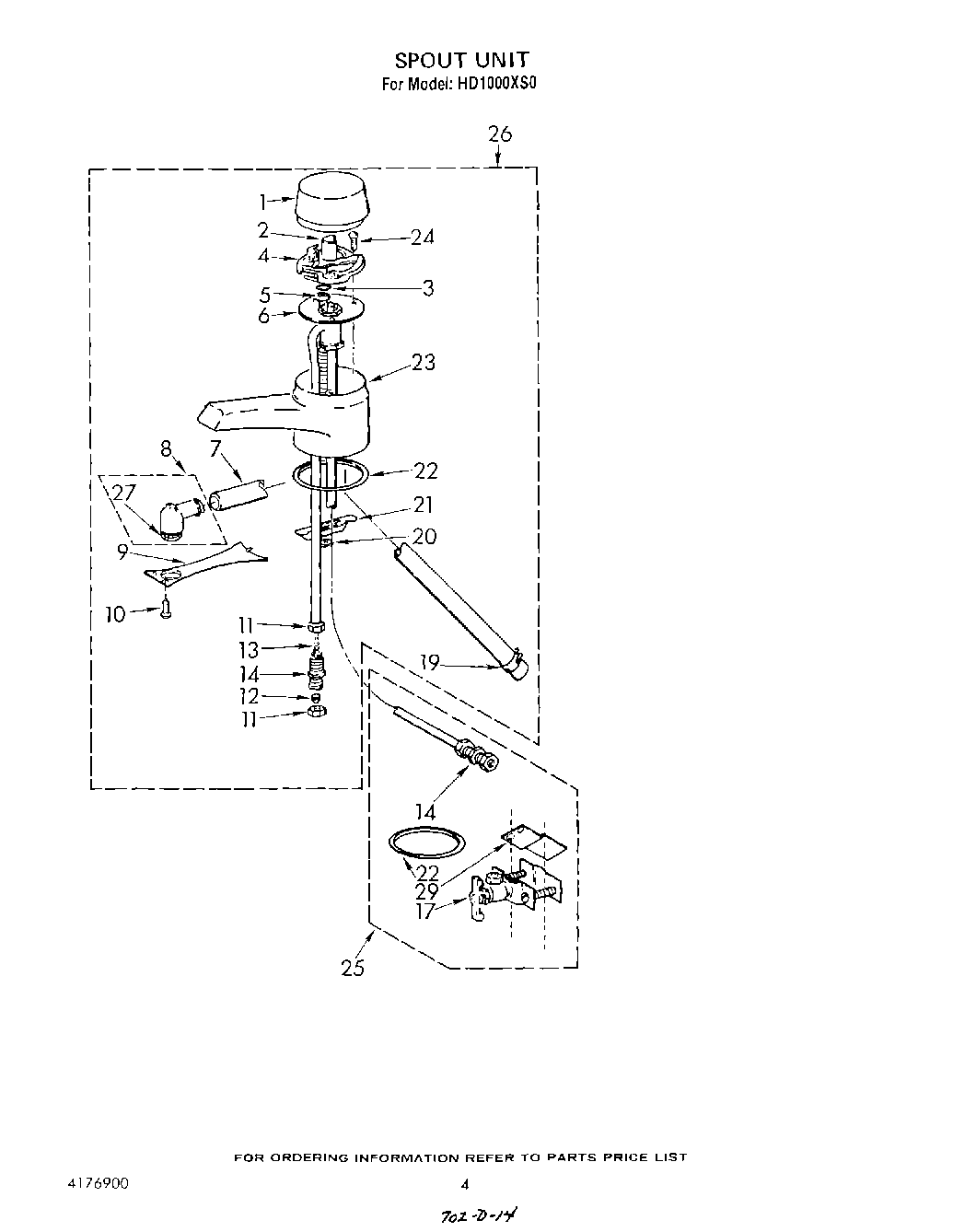

| Repair Parts List |
| 1 | Cap, Dispenser |
| 2 | Hub, Valve Drive |
| 3 | Spring, Compression |
| 4 | Hub, Cam |
| 5 | Cap Screw, 1/4-20 X 5`` Rd. |
| 6 | Mechanical Valve (Includes Illus. 13 & 14) |
| 7 | Tube (3/8`` I.D.) |
| 8 | Spout & Screen |
| 9 | Plate, Spout |
| 10 | Screw, Self Tapping (No.4-20 X 5/16``) Phil. Flat Hd. |
| 11 | WP2198677 Whirlpool Refrigerator Connector |
| 12 | Sleeve, Compression |
| 13 | Screen, Inlet |
| 17 | Valve, Self- Drilling |
| 19 | Clamp, Hose |
| 20 | Machine Nut 1/4-20 Sq. |
| 21 | Bracket, Spout Mounting |
| 22 | Seal, Sink |
| 23 | Spout Body (Chrome) |
| 24 | 489392 Whirlpool Refrigerator Screw |
| 25 | Valve, Mechanical |
| 26 | Spout Assembly |
| 27 | Flow Screen |
| 29 | Bracket, Mounting |
