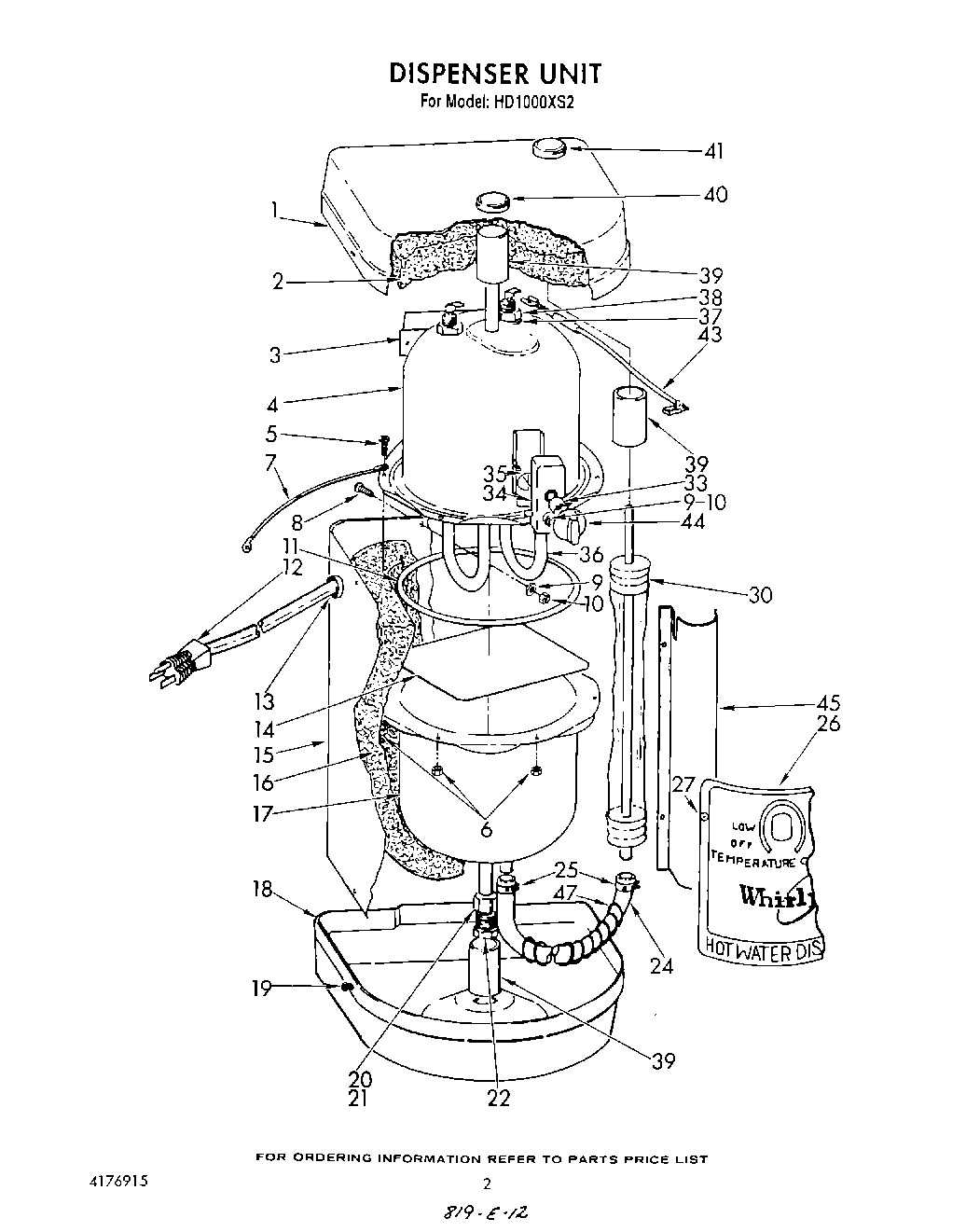

HD1000XS2 02 – DISPENSER

Products

Position	Product
1	Cap, Top
2	Upper Insulation
3	Bracket, Mounting
4	Upper Tank & Tube
5	WPW10068250 Whirlpool Dishwasher Screw
7	Ground Wire
8	WP3400814 Whirlpool Screw
9	4159493 Whirlpool Lockwasher
10	Nut, Mounting
11	O-Ring
12	Cord & Plug
13	Strain Relief
14	Deflector
15	Shell
16	Insulation Tank
17	Lower Tank
18	Cap, Bottom
19	W11245710 Whirlpool Refrigerator Screw
20	Nut, Tube Fitting (3/8“)
21	Sleeve, Tube Fitting (3/8“)
22	Plug, Drain
24	Hose, Clear
25	Clamp, Hose
26	Front Cover
27	W10853069 Whirlpool Screw
30	Displacer
33	Bushing, Thermostat
34	Thermostat
35	Cover, Dust (Thermostat)
36	Heater Element (Includes Illus. 38)
37	“O“, Ring
38	Nut, Heating Element
39	Spacer (3)
40	Bushing, Molded
41	Molded Bushing
43	Fuse, Thermal
44	Knob, Thermostat
45	Cover, Aspirator
47	Upper Tank (Includes Illus. 4 & 36)
47	Spring, Hose (Anti-Kink)
