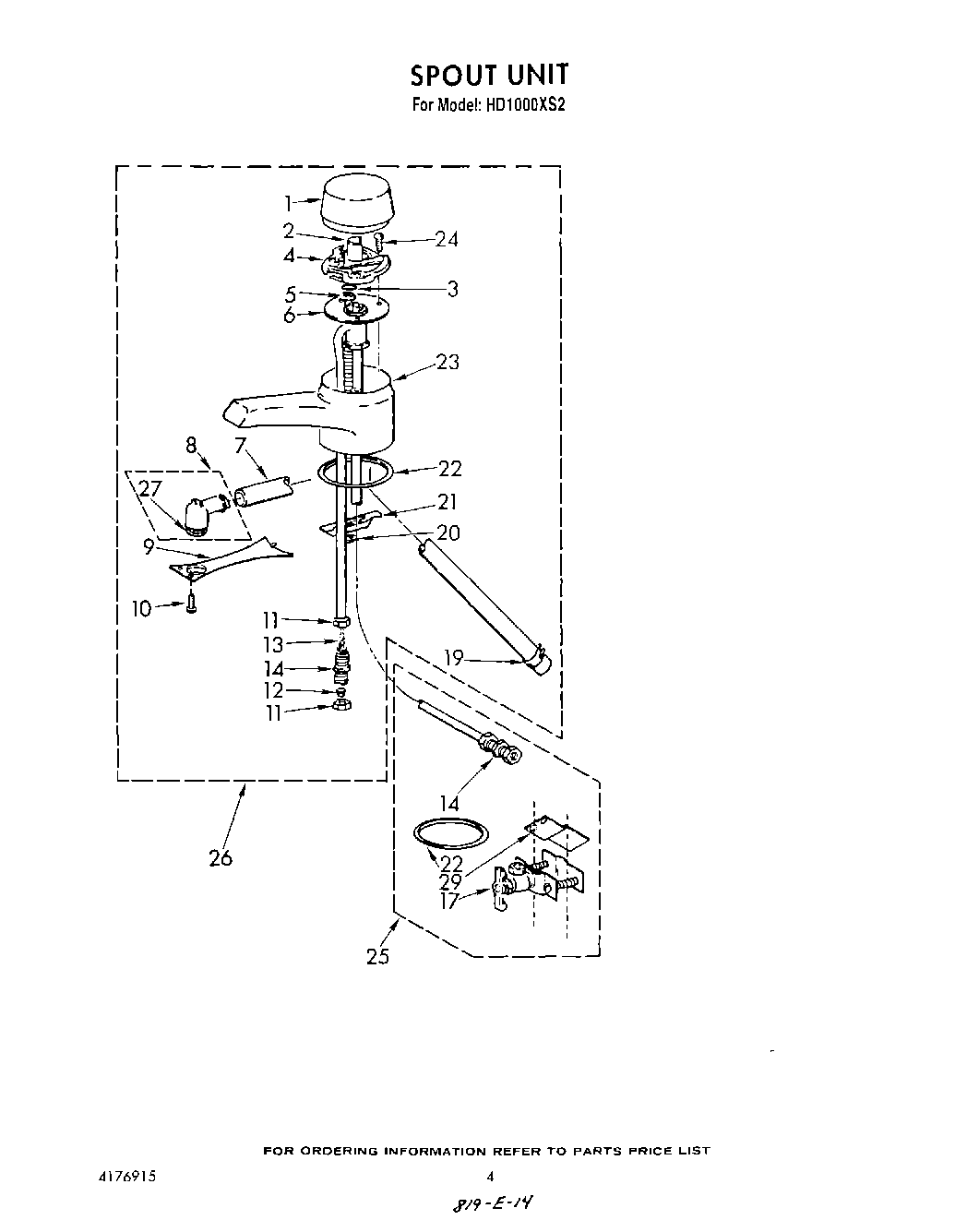

HD1000XS2 03 – SPOUT

Products

Position	Product
	Service Manual
	Installation Instructions
	Guide, Use & Care
	Repair Parts List
1	Cap, Dispenser
2	Hub, Valve Drive
3	Spring, Compression
4	Hub, Cam
5	Cap Screw, 1/4-20 X 5“ Rd.
6	Mechanical Valve (Includes Illus. 13 & 14)
7	Tube (3/8“ I.D.)
8	Spout & Screen
9	Plate, Spout
10	Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11	WP2198677 Whirlpool Refrigerator Connector
12	Sleeve, Compression
13	Screen, Inlet
17	Valve, Self- Drilling
19	Clamp, Hose
20	Machine Nut 1/4-20 Sq.
21	Bracket, Spout Mounting
22	Seal, Sink
23	Spout Body (Chrome)
24	489392 Whirlpool Refrigerator Screw
25	Valve, Mechanical
26	Spout Assembly
27	Flow Screen
29	Bracket, Mounting
