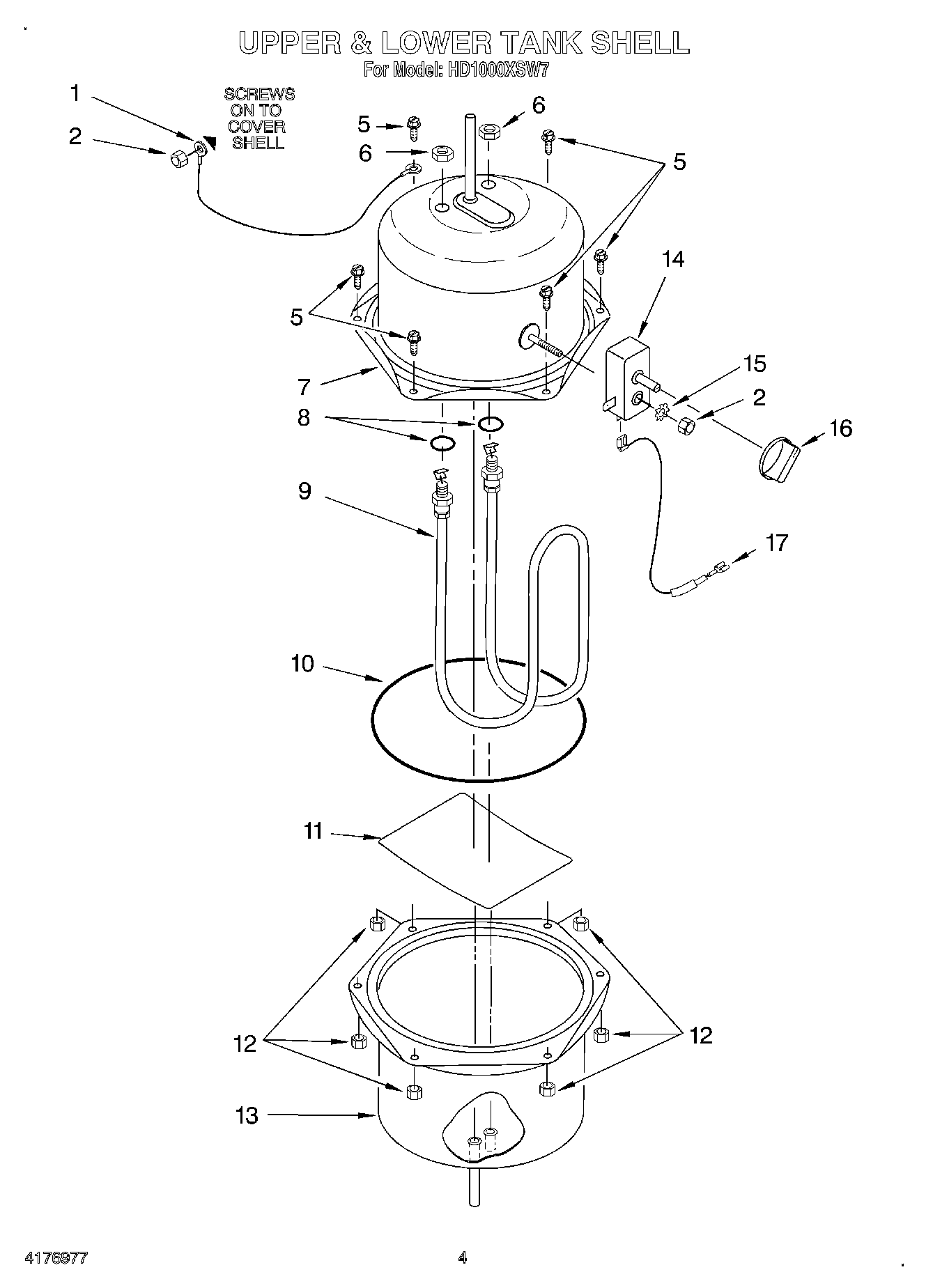

HD1000XSC7 03 – UPPER AND LOWER TANK SHELLadmin2025-04-26T11:28:23+00:00HD1000XSC7 03 – UPPER AND LOWER TANK SHELL ProductsPositionProduct1Ground Wire5WPW10068250 Whirlpool Dishwasher Screw6Nut, Heating Element7Shell, Tank Upper8O-Ring9Element, Heating (Includes item No.6)10``O``, Ring11Deflector12Nut, Mounting13Shell, Tank Lower14Thermostat154159493 Whirlpool Lockwasher16Knob, Thermostat17Fuse, Thermal
