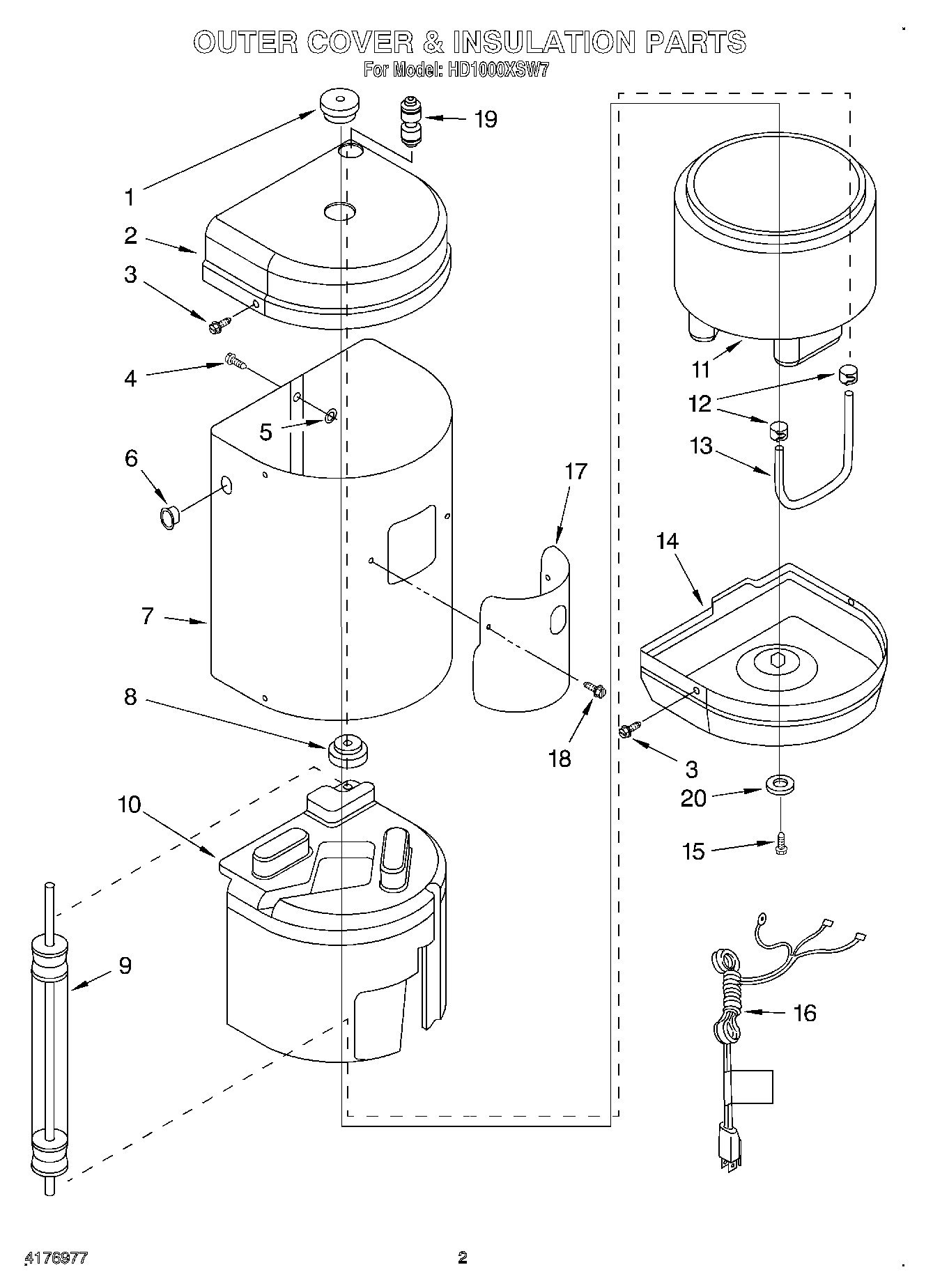

HD1000XSW7 02 – OUTER COVER & INSULATION, LITERATUREadmin2025-04-26T11:24:48+00:00HD1000XSW7 02 – OUTER COVER & INSULATION, LITERATURE
Products
| Position | Product |
|---|
| Repair Parts List |
| Instructions, Installation & Use And Care |
| 1 | Bushing, Molded |
| 2 | End Cap, Top |
| 3 | W11245710 Whirlpool Refrigerator Screw |
| 4 | WP3400814 Whirlpool Screw |
| 5 | 4159493 Whirlpool Lockwasher |
| 6 | Strain Releif, Power Cord |
| 7 | Shell |
| 8 | Molded Bushing |
| 9 | Displacer |
| 10 | Insulation, Top |
| 11 | Insulation, Bottom |
| 12 | Clamp, Hose |
| 13 | Hose, Clear |
| 14 | Cap, Bottom |
| 15 | Screw, 8-32X.5 (stainless) |
| 16 | Cord, Power |
| 17 | Front Cover |
| 18 | WP313808 Whirlpool Screw |
| 19 | WP2198677 Whirlpool Refrigerator Connector |
| 20 | O-Ring |
