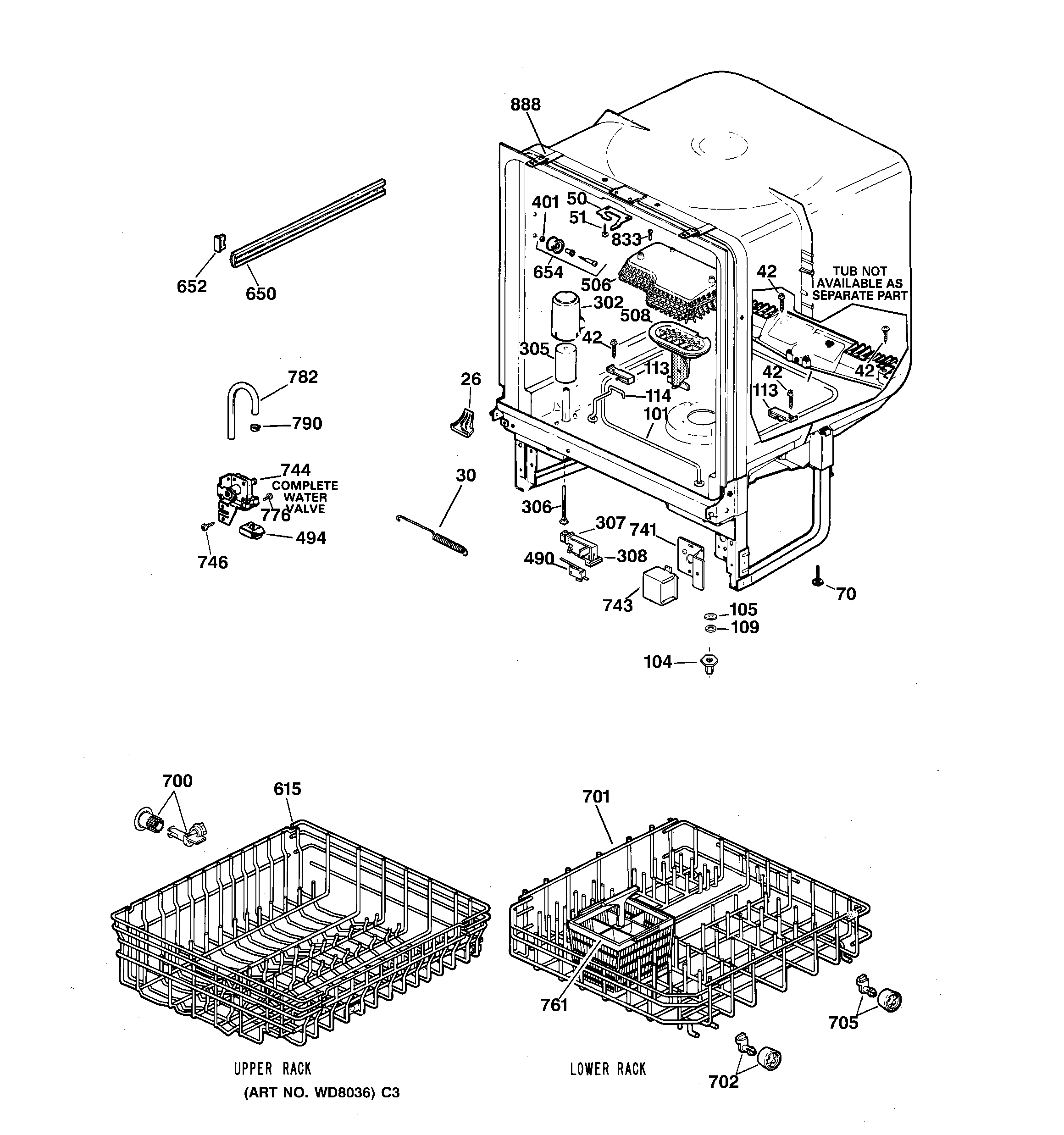

HDA1000Z00WH BODY PARTS

HDA1000Z00WH BODY PARTS

Written by

in

HDA1000Z00WH BODY PARTS

Products

PositionProduct
26WD8X227 GE Dishwasher Right Hand Corner Seal
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
30GEN WD02X10023
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
50WD13X67 GE Dishwasher Latch Keeper
51GEN WZ02X0492
70WD2X320 GE Dishwasher Leveling Leg
101WD05X26780 GE Dishwasher Heating Element Assembly
104GEN WD01X1491
105GEN WD01X1168
109GEN WD08X0225
113GEN WD01X1430
114WD1X1472 GE Dishwasher Heater Support
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
490WD21X479 GE Dishwasher Switch
494WD1X1459 GE Dishwasher Insulation Housing
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
615WD28X31818 GE Dishwasher Rack Service Kit
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701WD28X31819 GE Dishwasher Lower Rack
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
741GEN WD12X0447
743WD12X448 GE Dishwasher Junction Box
744WD15X93 GE Dishwasher Water Inlet Fill Valve
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
776GEN WZ05X0222
782WD18X202 GE Dishwasher Fill Hose
790WH1X2036 GE UNIX Clamp
833WD2X295 GE Refrigerator Screw
888WD35X200 GE Dishwasher Mounting Kit
