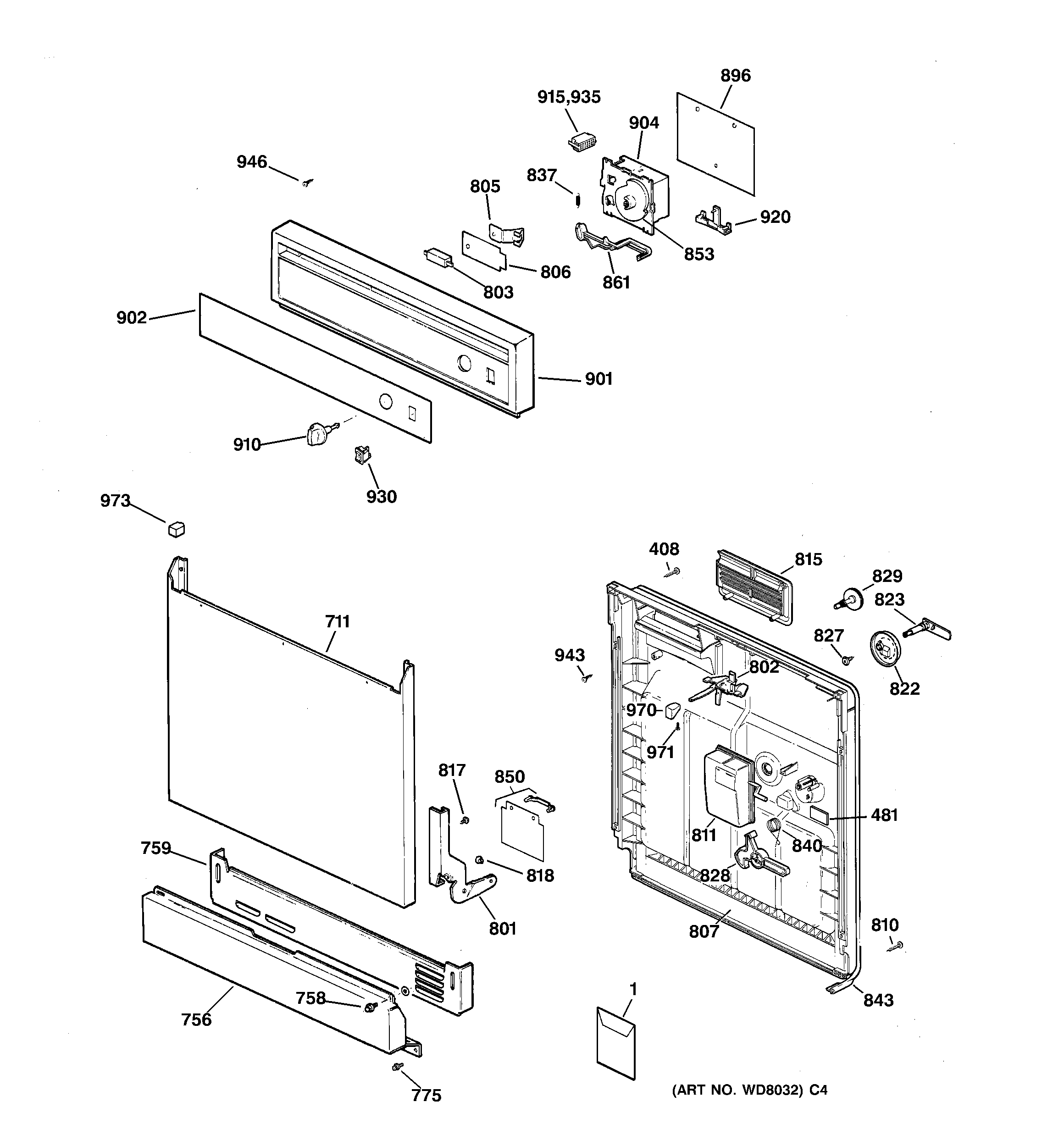

HDA1000Z00WH ESCUTCHEON & DOOR ASSEMBLY

HDA1000Z00WH ESCUTCHEON & DOOR ASSEMBLY

Written by

in

HDA1000Z00WH ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 39-5241
1GEN 31-30130
1GEN 31-3084
408GEN WD02X0296
481GEN WD01X10016
711PANEL FRONT
756PANEL ACCESS FIN WH
758WD2X323D GE Dishwasher Screw Package
759GEN WD27X10009
775SCREW 10-16X5/8 HXP WH
775WD2X5166 GE Dishwasher Screw
801ARM HINGE COMPLETE – RH
801GEN WD14X10001
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10001
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10157
901WZ5X219D GE Screw Package
902GEN WD34X10156
904WD21X10013 GE Dishwasher Control Timer
910GEN WD09X0253
915GEN WD01X1432
930SWITCH ROCKER
935GEN WD01X1434
946GEN WD01X10020
970WD9X225 GE Dishwasher Latch Knob
971GEN WZ02X0045
973GEN WD12X10017
