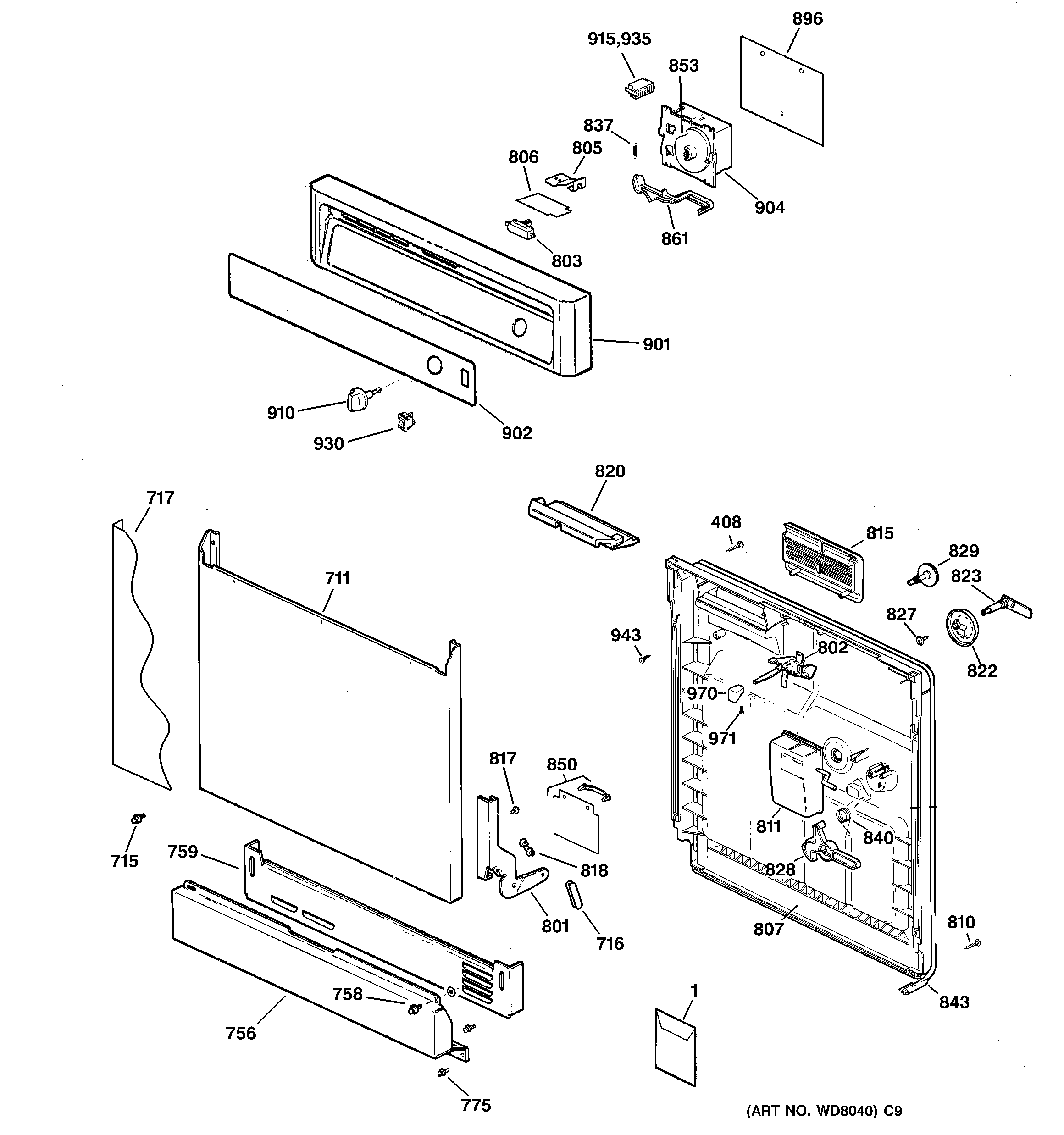

HDA2000F04AD ESCUTCHEON & DOOR ASSEMBLY

HDA2000F04AD ESCUTCHEON & DOOR ASSEMBLY

Written by

in

HDA2000F04AD ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 39-5861
1GEN 31-30334
1GEN 31-30515
408GEN WD02X0296
711PANEL FRONT AD
716WD14X10009 GE Dishwasher Hinge Link Arm
756GEN WD27X10067
758WD02X10054 GE Dishwasher Screw 8-32
759WD27X10068 GE Dishwasher Toe Panel Kit
775WD2X5166 GE Dishwasher Screw
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10007
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10162
901GEN WD34X10459
902GEN WD34X10460
904WD21X33645 GE Timer
910WD9X349 GE Dishwasher Timer Knob
915GEN WD01X10062
930SWITCH ROCKER
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X225 GE Dishwasher Latch Knob
971GEN WZ02X0045
