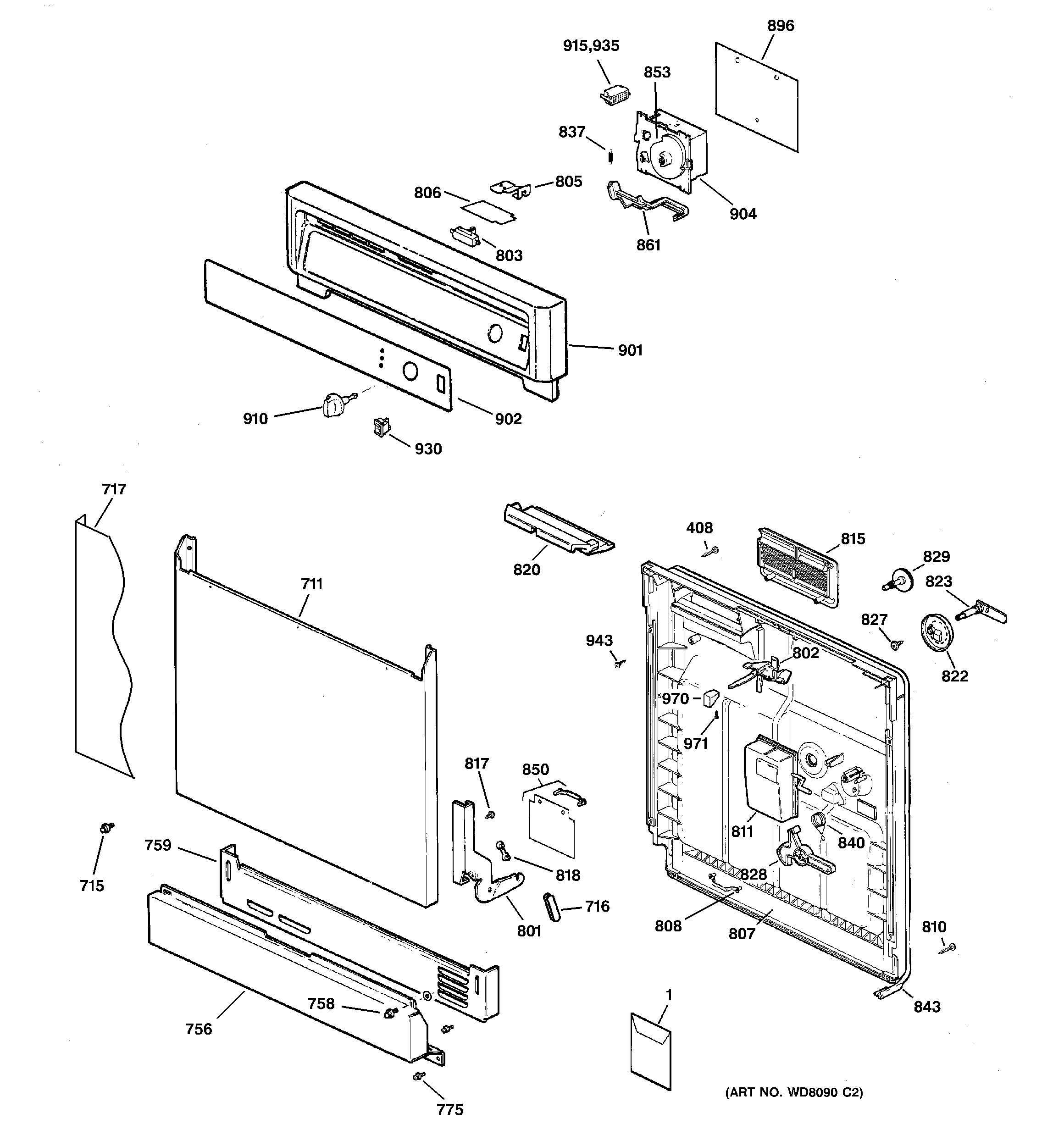

HDA2000G00AA ESCUTCHEON & DOOR ASSEMBLY

HDA2000G00AA ESCUTCHEON & DOOR ASSEMBLY

Written by

in

HDA2000G00AA ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 39-5910
1GEN 31-30515
1GEN 31-30372
408GEN WD02X0296
711PANEL FRONT AD
715WD2X434 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10075
756GEN WD27X10067
758WD02X10054 GE Dishwasher Screw 8-32
759PANEL TOE KICK FINISHED
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10007
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10762
901GEN WD34X10761
902GEN WD34X10763
904WD21X33639 GE Dishwasher Timer
910GEN WD09X0356
915GEN WD01X10062
930GEN WD21X10033
935GEN WD01X1434
943WZ5X219D GE Screw Package
970GEN WD09X10027
971GEN WZ02X0045
